| Prod Model: |
Australia Standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Sea Blue, Red, Orange, White |
| Certification: |
ISO9001 |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Jzj |
Product Description

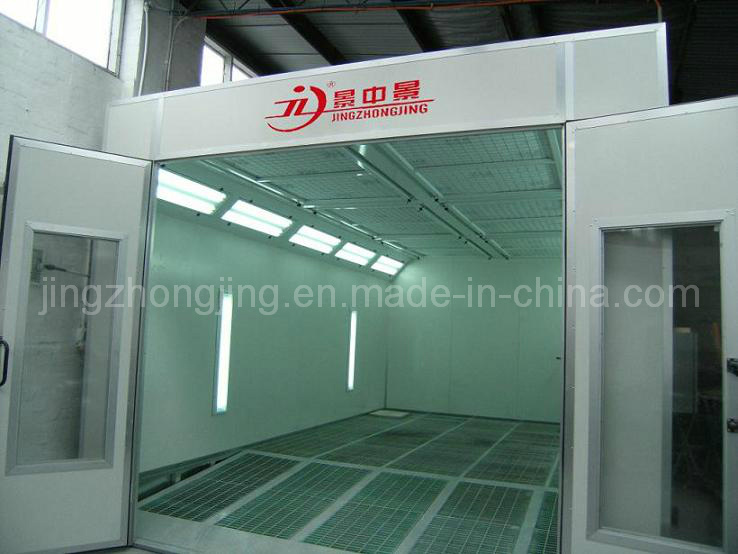

Model: Australia Standard Internal Ramp Spray Booth
Product Pictures
Product DescriptionAutomobile paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance. The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.
In order to make the equipment work normally, please read this manual carefully before installation, operation and maintenance.
Technical Parameters for Paint Baking Booth1. Outside dimension (L x W x H) mm: 7000*5350*3450
2. Inside dimensions (L x W x H) mm: 6900*4000*2650
3. Large Door Size (W x H) mm: 3000×2600
4. Capacity of Blower fan: 25000m3/h
5. Capacity of exhausted fan: 25000 m3/h
6. Inside air speed: m/s:0.3
7. Air exchange volume time/h:280
8 Top temperature: 80ºC
9. Heating time(20ºC-80ºC)/min:5-6
10. Lighting volume: 1000LUX
11. Noisy: ≤80dB
12. TSP: mg/m3:≤1.4
13. Gas consumption:8-10m3/h
14. Power:17kW
Product specifications| Outside Dimension (mm) | 7006*6056*3450(L*W*H) | Inside Dimension(mm) | 6900 * 4000 * 2650(L*W*H) |
| Front Door(mm) | 3000*2600 (W*H) | Service door (mm) | 1800*650( W*H) |
| Total Power | 17KW |
| Cabin system | Wall panel | 50mmEPS panel, steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel sheet. |
| Basement | 300mm depth, middle with grids, two side with checkered plates. |
| Ramp | three pieces 2000*900mm ramps |
| Glass | 6mm toughened glass |
| Windows | Square glass windows |
| Air Make-up System | Air Inlet fan system | 1 * 7.5kw Belt-drive fan, proof-explosion motor, Ex rated |
| Exhausted fan system | 1 * 7.5kw Belt-drive fan, proof-explosion motor, Ex rated |
| Ai capacity | 25000m3/h |
| Air Flowing speed | 0.3m/s in empty booth |
| Air Control method | One manual damper for air exhausted system |
| Exhausted ducting | 4 meters air duct and one flop damper |
| Purification System | Pre-filter | G3 grade |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | M green fiber glass filter. |
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. |
| Heating burner: | Riello G20 diesel oil burner(gas burner for option) |
| Heating productivity | 180000Kcal/h |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow |
| Max heating temperature | 80degrees |
| Heating time | 4-6min(20-60degrees) |
| fuel consumption | 5-6L /vehicle |
| Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W |
| Side lights | 8 Units, each 4 x 20W Philips lamps, Total 800 W |
| Illumination | 1200LUX |
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge |
Our Service1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.If you have interest in any of our products, please kindly contact us. If you have any questions or doubts, please also feel free to contact us.
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
