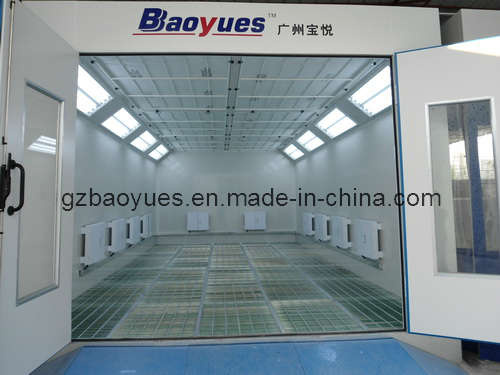

Infrared Heating Car Paint Booth
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CSA |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Car Painting Booth |
| Brand: |
Baoyues |
| Airflow Direction: |
Down Draft |
Product Description
The superior spray booth for car spraying and baking, with with light system, intake and exhaust system, heating system, control system, purification system...Can remake the design according to your request.
| Inside dimension | 6900× 3900× 2650 mm (L× W× H ) |
| Outside dimension | 7000× 5350× 3400 mm (L× W× H ) |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized, with full ramps |
| Front door | F olding door, 3 folds, 3000× 2600 mm (W× H), made by bending steel, without cover frame, , colour: blue. |
| Emergency door | 1 unit, 650× 1800mm (W× H ), colour: white. |
| Wall board | Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white. |
| Light system | Ceiling Lights: 8Units × 4Pcs=32Pcs*36W, with short wave infrared lamp on both sides |
| Generator cabinet | Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and exhaust system | Intake: 2× 4 KW double-intake centrifugal fans for intake air, model YDW4.5L1, air capacity for each fan: 12500m 3 /h...Exhaust: 1× 7.5 KW double-intake centrifugal fan for exhaust air, model YDW4.5M, air capacity: 20000m 3 /h, with manual damper for exhaust air. |
| Heating system | With short wave infrared lamp heating |
| Purification system | Pre-filter, ceiling filter, fibreglass filter, active carbon filter |
| Roof | Galvanized steel plates |
| Control box | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start. |
| Total power | 45KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
