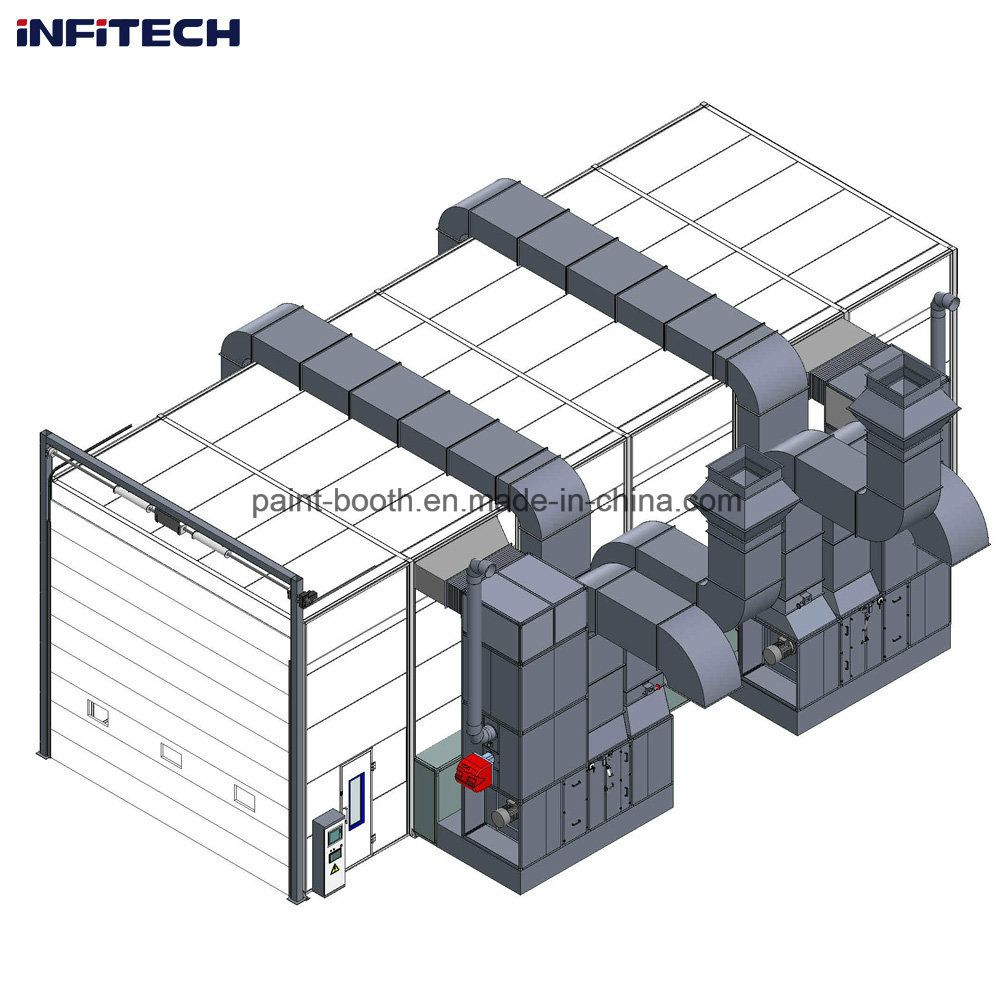

Infitech Large Industrial Painting Room It-15m

Name: Infitech Large Industrial Painting Room It-15m
Brand: ibuyautoparts.com
SKU: 732695202
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 15999-39999/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	IT-15M
Usage:	Painting Large Work-Pieces
Lighting System:	LED Lights
Empty Loaded Air Speed:	0.22m/S
Voltage:	480V/60Hz/3pH
Rated Power:	55kw
Noise:	<78dB
Warranty:	2 Years
Certification:	CE
Airflow Direction:	Lateral Undershot-type
Paint Mist Treatment:	Dry-type
Condition:	New
Heating Mode:	Natural Gas

Product Description

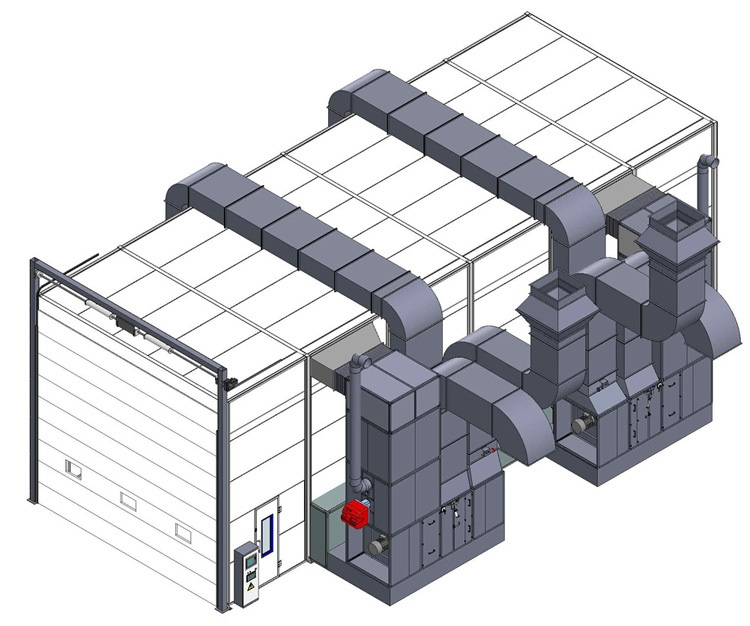

INFITECH large industrial painting room IT-15M

Technical parameters

Customized Industrial Spray Booth(15x6x5M)
Design standard	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
Internal dimensions	15000 x 6000 x 5000 mm (L x W x H)
External dimensions	15160 x 9370 x 6500 mm (L x W x H)
Basement	No base, side down draft extraction type (with air exhaust plenum chambers on both sides)
Plenum height	800mm
Entrance door	Electric plate roll-up door, 1 set, 5000 x 4500 mm (W x H)
Personnel door	4 sets, 800×2300 mm (W×H)

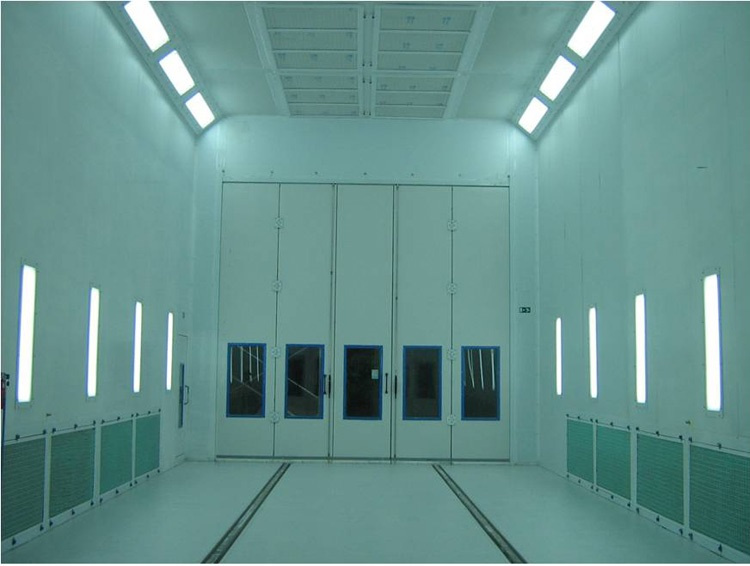

Sidewall lighting (LED)	24 sets of light fixtures, each 4 x 18W, total 1728W Protection grade IP55
Ceiling lighting (LED)	12 sets of light fixtures, each 4 x 18W, total 864W Protection grade IP55
Brightness	> 700Lux
Intake system	Direct-type turbine fan 2X11KW, 480V, 60Hz
Exhaust system	Direct-type turbine fan 2X11KW, 480V, 60Hz
Air volume	70,000m³/h
Empty loaded air speed	+/- 0.22m/s
Noise	<78db
Heating system	RIELLO gas burner 2 x RS5D
Heat exchanger power	2 X 232KW
Maximum working temperature	80ºC
Control system	Independent control for each part (plenum divided into 2 equal parts) Touch screen control
Rated power	55KW

Product details

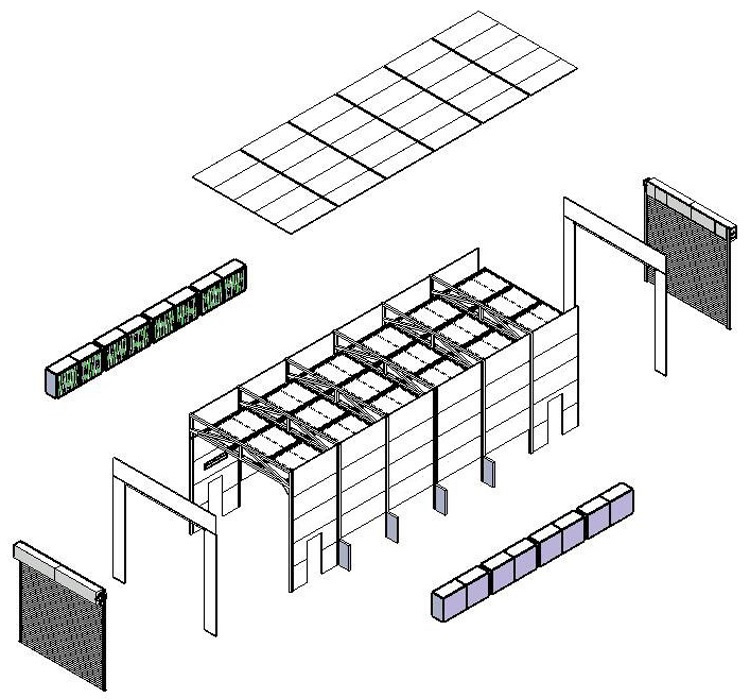

- Gantry structure for reinforcement

- Entrance door - electric plate roll-up door

- Air exhaust plenum chambers on both sides

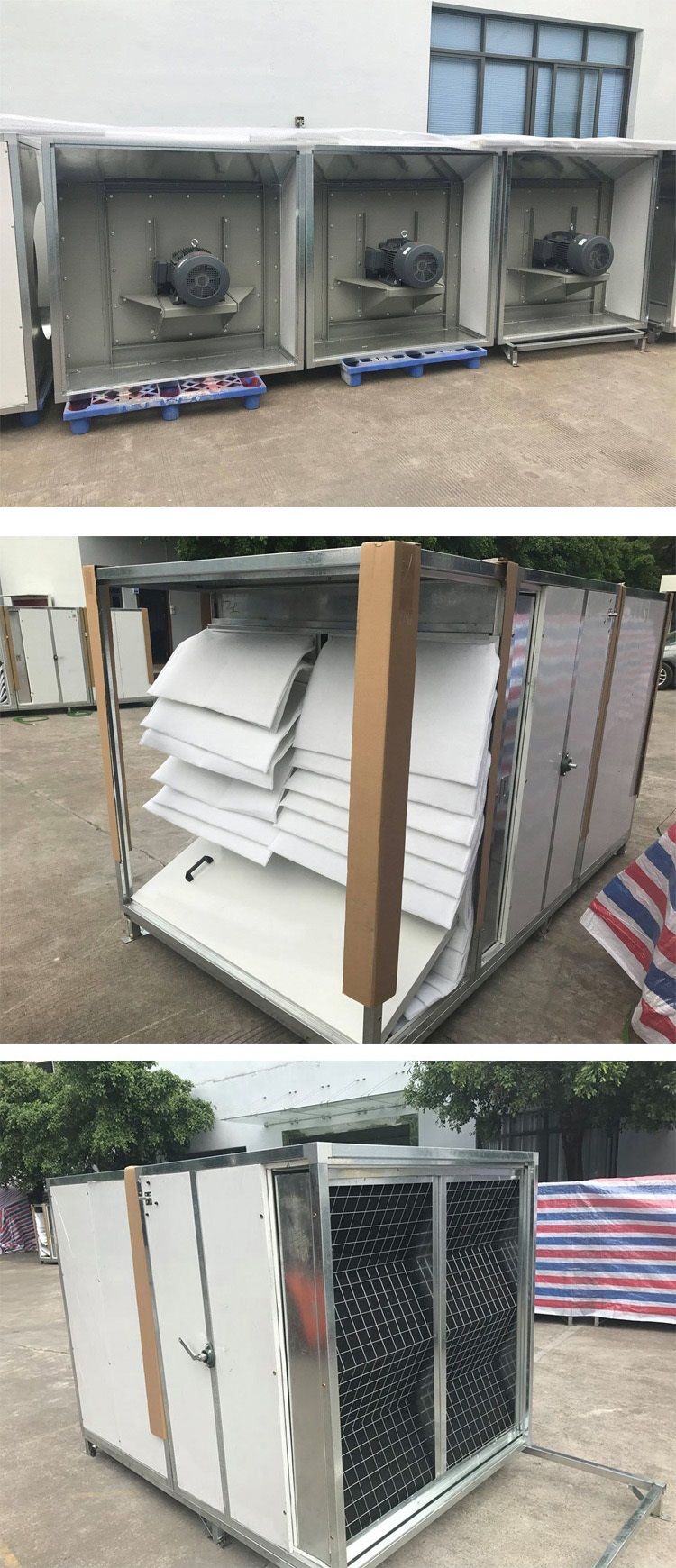

- Fan cabinets & Filtration cabinets

Company Introduction
Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
