Infitech Customized Spray Booth with Automatic Conveyor Chain
| Price: |
US $ 15000-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
INFITECH customized spray booth with automatic conveyor chain

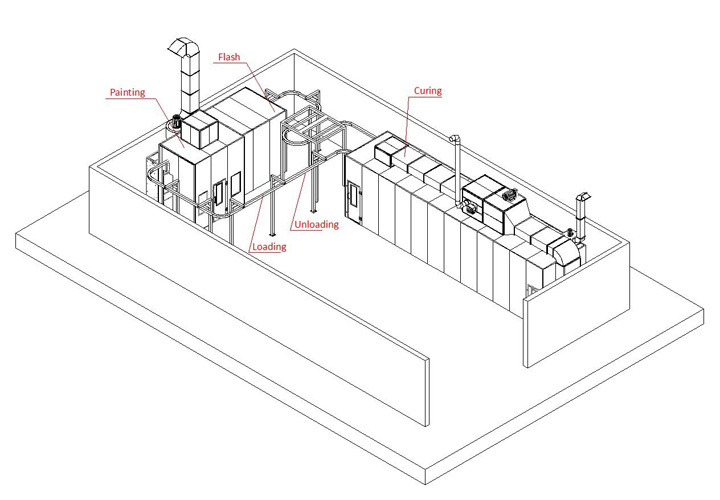

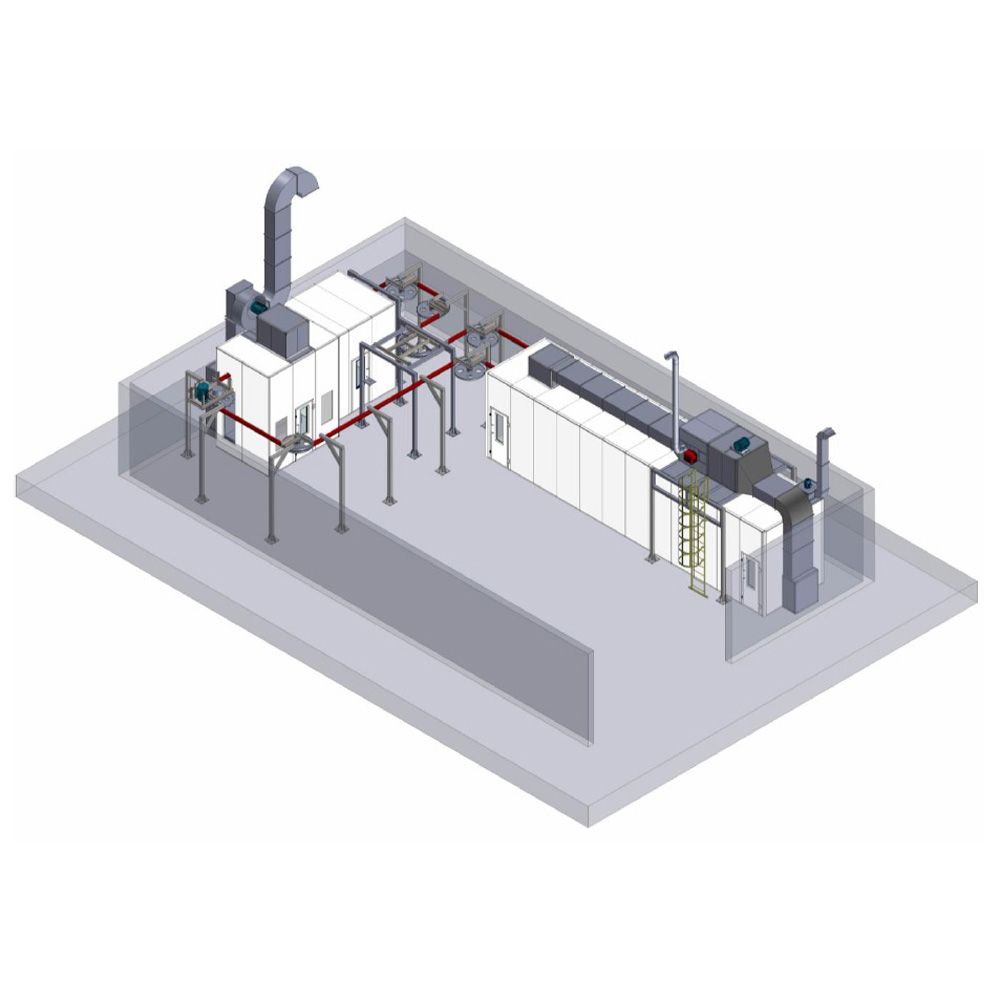

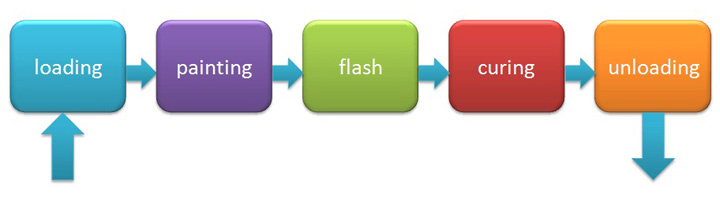

Overall design & production flow
Technical Data| Item A: Water-curtain paint booth |
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| INTERNAL DIMENSIONS | 3000 X 2200 X 3150mm (L X WX H) |
| EXTERNAL DIMENSIONS | 3100 X 3100 X 4710mm (L X WX H) |
| PERSONNEL DOOR | 1 set, 800x2000mm (B x H) |
| CEILING LIGHTING (LED) | 2 sets of light fixtures, each 4X18W, total 144W |
| ILLUMINATION | > 700Lux |
| INTAKE SYSTEM | 2.2KW motor, 12,500 m3/h; 380V, 50Hz |
| EXTERNAL DIMENSIONS OF WATER CURTAIN BOOTH | 2500 X 800 X 2500mm (L X WX H) |
| EXHAUST FAN | Direct drive motor 5.5KW, 13,500 m3/h; 380V, 50Hz |
| PAINT MIST TREATMENT | Water spin treatment |
| NOISE | <78 db |
| RATED POWER | 11KW |
| Item B: Flash booth |
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| INTERNAL DIMENSIONS | 3000 X 2400 X 3150mm (L X WX H) |
| EXTERNAL DIMENSIONS | 3100 X 2500 X 3200mm (L X WX H) |
| SIDEWALL LIGHTING (LED) | 1 set of light fixture, each 2 X 18W, 36W total |
| RATED POWER | 1KW |
| Item C: Curing booth |
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| INTERNAL DIMENSIONS | 12000 X 2500 X 3150mm (L X WX H) |
| EXTERNAL DIMENSIONS | 12600 X 2600 X 4710mm (L X WX H) |
| MAINTENANCE DOOR | 2 sets; 800x2000mm (B x H) |
| SIDEWALL LIGHTING (LED) | 3 sets of light fixtures, each 2 X 18W, 108W total |
| CIRCULATING FAN | 5.5KW, 10,000m3/h; 380V, 50Hz |
| NOISE | <78 db |
| EXHAUST FAN | 1.5KW/1450RPM/380V/50HZ, 5,000m3/h |
| HEATING SYSTEM | RIELLO Gas burner FS20 |
| HEAT EXCHANGER POWER | 200KW |
| MAXIMUM OPERATING TEMPERATURE | 80oC |
| RATED POWER | 7.5KW |
| Item D: Automatic conveyor chain |
| Model No. | XT100 overhead conveyor chain |
| Pitch X hanging distance | 100 × 600mm |
| Bearing capacity of the single lifting point | 200kg |
| Diameter of the rotary wheel | Φ1000mm |
| Speed of the conveyor chain | 0.8-2.5m/min(adjustable) |
| Total length of the conveyor chain | 60m |
| Height of the suspension chain | 3000mm |
| Driving power of the conveyor chain | 2.2KW/380V/50Hz |
| Spreader device | The spray line has total 60 hanger rods, the upper part of each hanger rod has a bearing and a bearing block which are strictly sealed, not being polluted by paint. Sprocket is mounted at the center, work-piece can rotate along the axis, connection rings are fixed at the lower part, which is connected with clivers. |
| Control system | 1 set |
| Special Item | Chain suspension steel structure, 1 set |
Product details

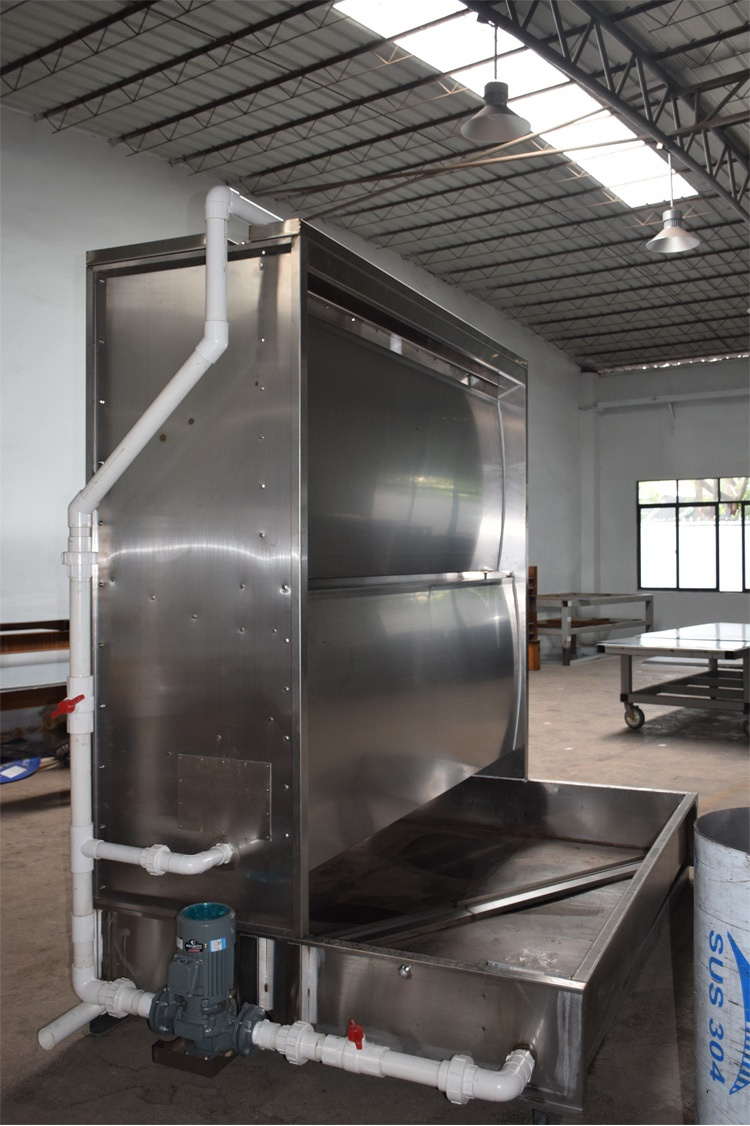

- Water-curtain booth

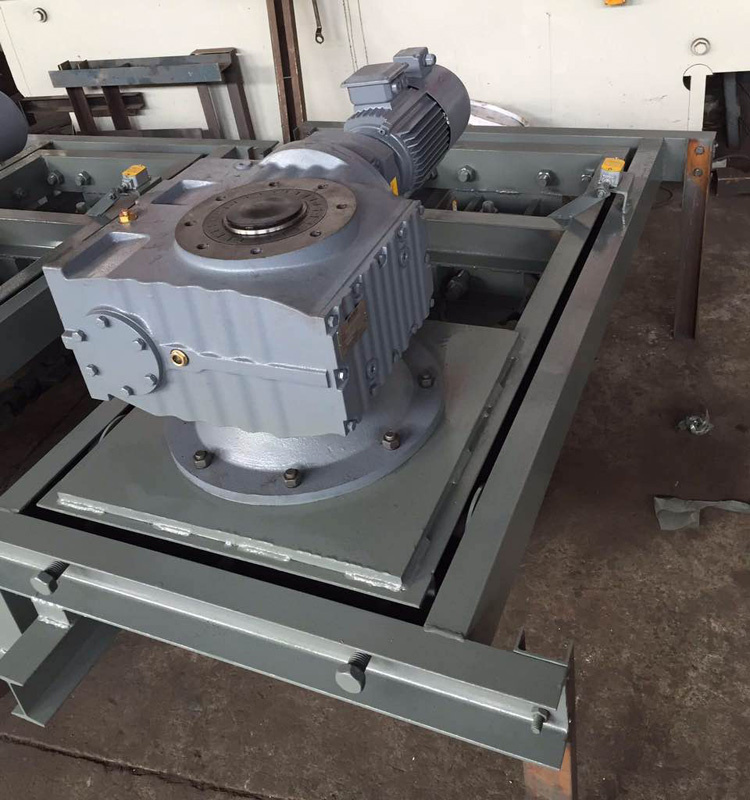

- Driving system of the conveyor chain

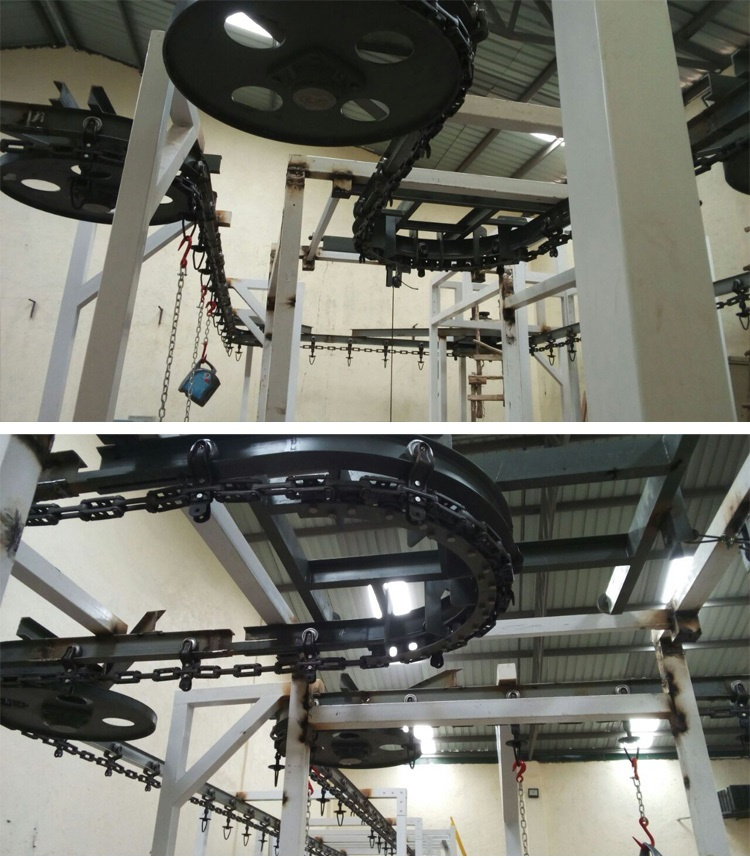

Conveyor chain

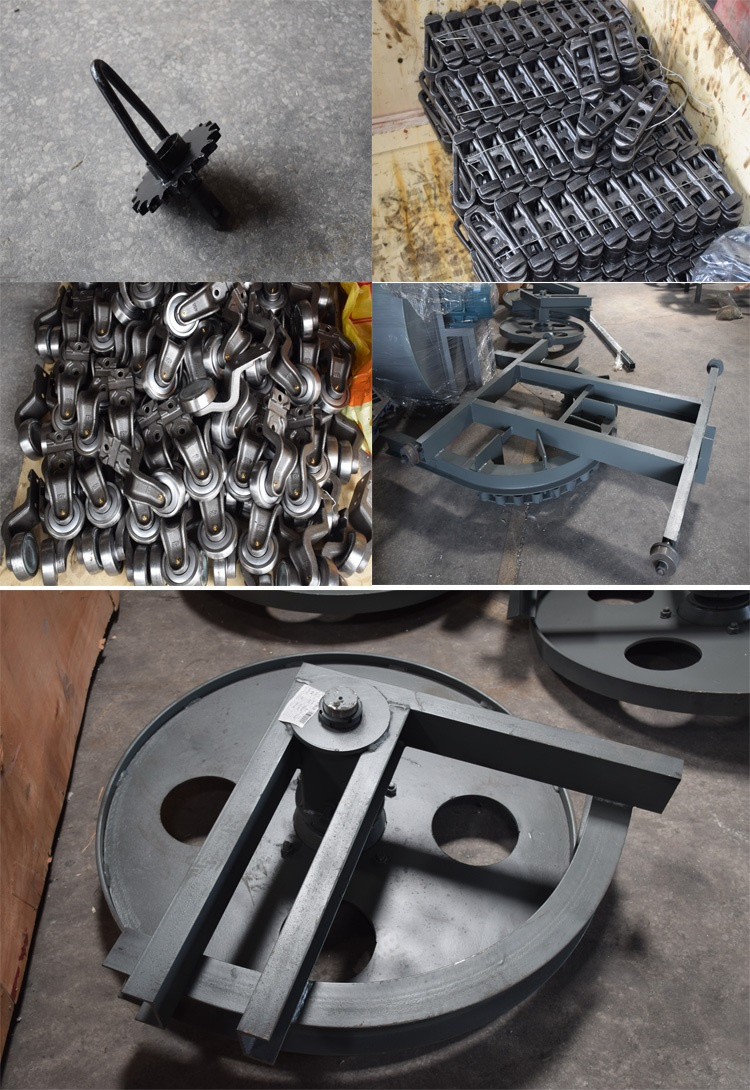

Parts of the conveyor chain
