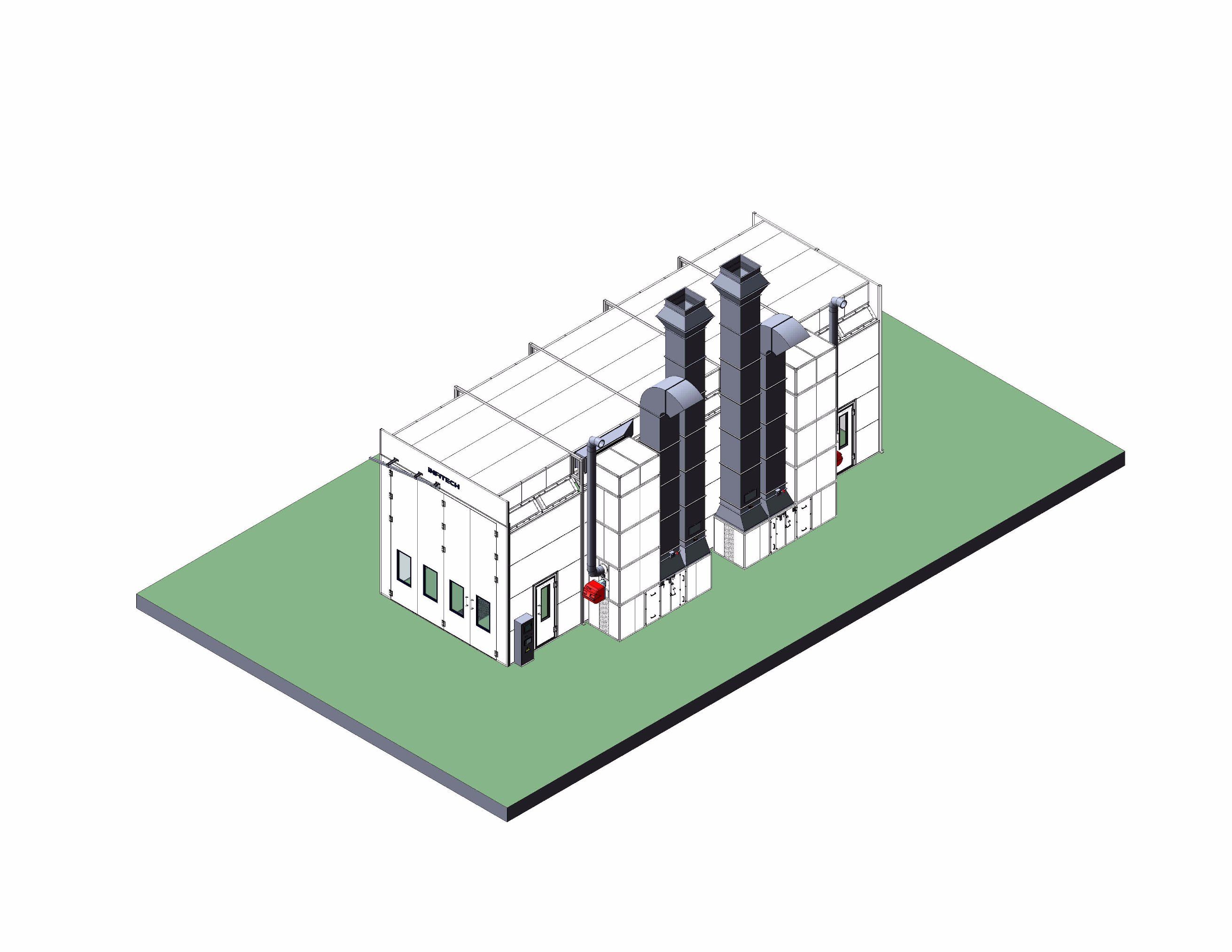

INFITECH best performance bus and truck paint booth

Product: IT-15-5A (full downdraft)

Basic information

DESIGN STANDARD	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
BOOTH DIMENSIONS
Internal dimensions	15000 X 5000 X 5000mm (L X WX H)
External dimensions	15170 X 7120 X 5800mm (L X WX H)
BASEMENT
Basement design type	Full downdraft, one row of grids in the middle (need to dig 800mm deep pit for return air)
Carrying capacity of the grids	900kg/wheel
Filter area	10.5m²
Grid description	Size: 997X 756mm, 40X3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of such steel grating.
CABIN
Cabin structure	80 x80 3.0 thick square tube frame, gantry structure Wall panel horizontal insert
Plenum height	800mm
WALL PANEL
Wall panel	60mm dual-skin insulated panels filled with heat resistant rock wool
Top material	50mm dual-skin insulated panels filled with heat resistant rock wool
Edge material	1.2mm galvanized plate bending forming
ENTRANCE DOOR
Form	Manual door, 4 wing entry door (3+1 structure)
Size	4270 X 4800mm (W X H)
Quantity	Product entry door, 1 set
Door descriptions	Containing frame , with safety glass observation window
PERSONNEL DOOR
Form	Frame structure
Size	800 X 2000 mm (W X H)
Quantity	2 sets ***4 sets as optional
Door description	With safety glass observation windows
SIDEWALL LIGHTING	(LED lamp)
Quantity and power	18 sets of light fixtures, each 4 X 18W, total 1296W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
CEILING LIGHTING	(LED lamp)
Quantity and power	20 sets of light fixtures, each 4 X18W, total 1440W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
Brightness	> 1000Lux
FILTRATION SYSTEM
Pre-filtration	G3 grade pre-filter bag filter
Ceiling filter	F5 class filter cotton, Model SP-600G
Floor filtration	Fiberglass paint arrestor filter
Extract filtration	Activated carbon filter mat, M style
INTAKE SYSTEM
Intake fan	Direct-type turbine fan
Intake fan power and motor description	2X11KW, 970rpm, 380V, 50Hz, CE
Parameter of intake fan	2 X 35,000m³/h, 650pa
EXHAUST SYSTEM
Exhaust fan	Direct-type turbine fan
Exhaust fan power and motor description	2X11KW, 970rpm, 380V, 50Hz, CE
Parameter of exhaust fan	2 X 35,000m³/h, 650pa
Equipment empty loaded air speed	+/- 0.26m/s
NOISE	<78db
HEATING SYSTEM
Heating exchanger material	Stainless steel 1Gr18Ni9Ti(SUS304)
Heating exchanger capacity	2 X 232KW(340,000Kcal/H)
△T temperature increase ability	25° C (from -5°C to 20°C, in painting phase)
Maximum working temperature	80° C
Burner Model	RIELLO RG5D X 2
Heating Time	10-18 minutes (from 20° C to 60° C) in baking phase
DUCTWORK
Straight ducting	20 pieces
Rain hat	2 pieces
90°elbow	2 pieces
45°elbow	2 pieces
Reducers	4 pieces
Manual damper	2 pieces
Electric damper	2 pieces
CONTROL SYSTEM
Implementation standards	Standard Y/Δ drop starting control system
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Pressure detection	The pressure gauge indicates pressure inside the booth.
Power distribution facilities	CE standard electric cable, terminal box, wiring tubes and accessories
Features	Painting, heating painting, flash-off, baking, emergency stop switch, failure indication, baking delay stop protection, motor overload and over-current protection, over-temperature alarm indication, fan and heating system interlock control
OPTIONAL
3 axis lifter with platform	It allows painter to reach all around the workpiece, greatly increase efficiency and save labor cost.
Inverter control	Inverter control, energy-saving, more economical
Touch screen control system	Touch screen control, easier to operate
Overhead steel platform
Fireproof rolling shutter door
Plate roll-up door
Special item	Rated power: 50KW

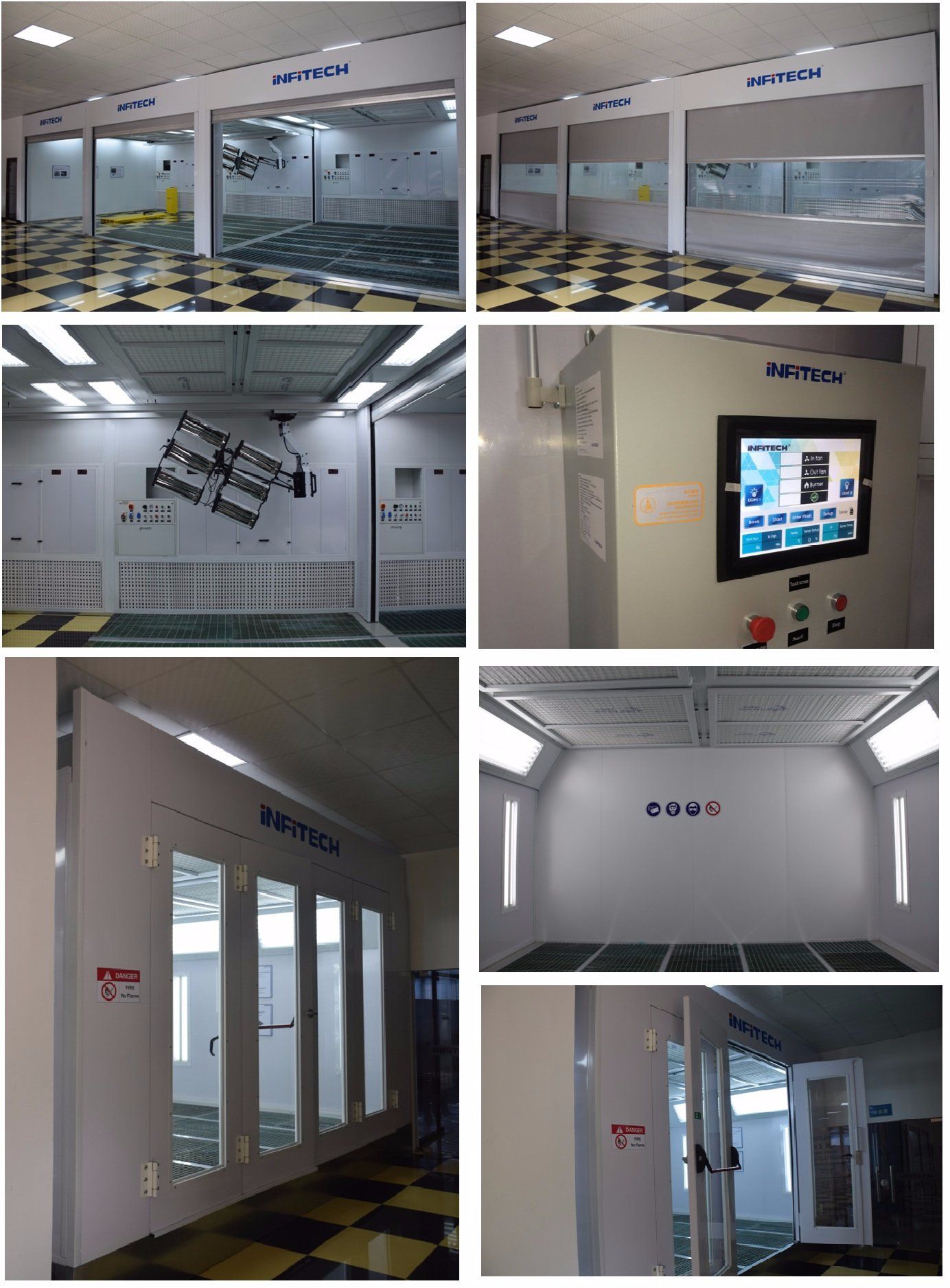

Show room
