Hydraulic Scissor Platform for Car Lifting/Auto Lift

Name: Hydraulic Scissor Platform for Car Lifting/Auto Lift
Brand: ibuyautoparts.com
SKU: 692054842
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 3000-6000/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

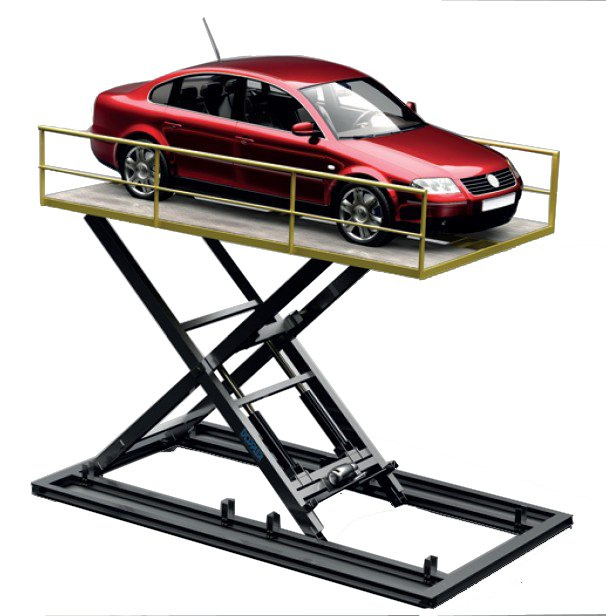

Hydraulic Scissor Platform for Car Lifting/Auto Lift

Main features:
1)used for lifting kinds of cars
2)great loading capacity
3)hydraulic system increase safety
4)steady working

Parameter:
1. Load weight: 3000kgs/customize
2. Table size: 5.5m X 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: High-strength Mn steel

Model	SJG3-12
Load capacity	3000kg
lifting height	12000mm
platform size	5000*2500mm
speed	100mm/s
power	7.5kw
power supply	AC 220v/380v 50HZ/60HZ
weight	4600KG

Specifications and Safety:
1. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

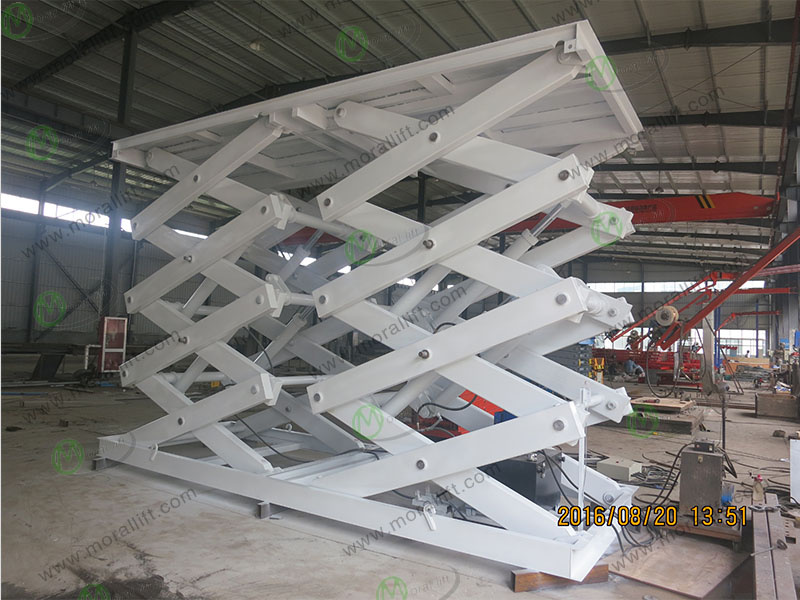

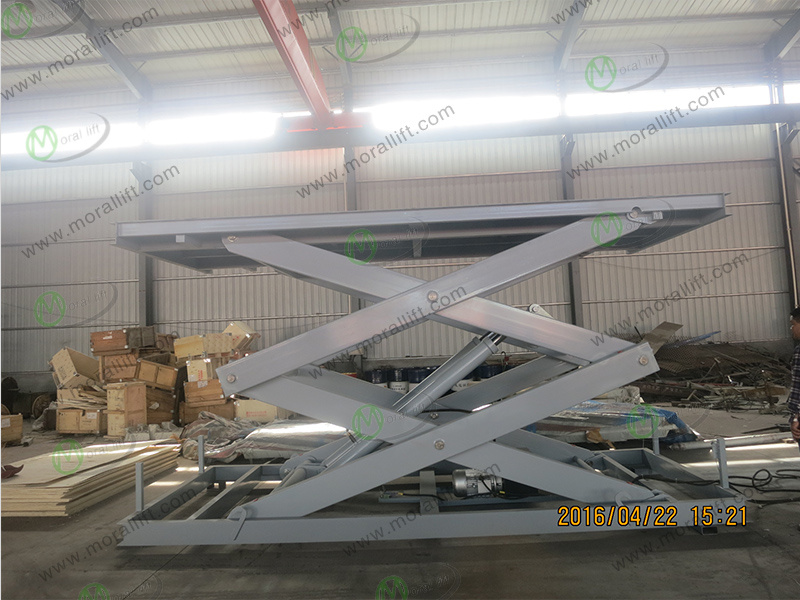

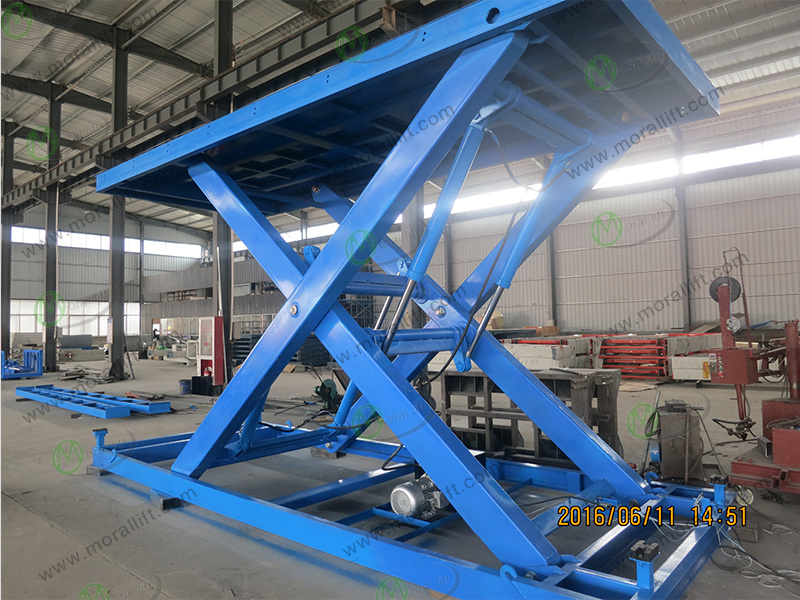

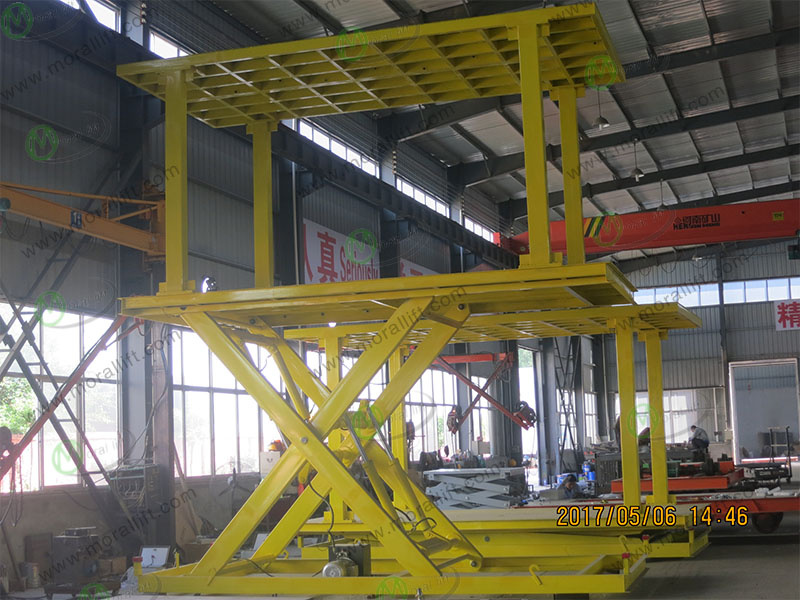

Product photos:

Welcome to your inquiry, we can customize for your every inquiry, thanks.

Prod Model:	SJG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Optional
Material:	Steel
Speed:	100mm/S
Warranty:	12 Months
Load Capacity:	3000kg or Customized
Platform Size:	5000*2500mm or Customized
Lifting Height:	5000mm or Customized
Power:	5.5kw
Control:	Buttons/Remote Control
Installation:	Pit
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	2.5T
Certification:	ISO
Design:	Scissor
Brand:	Moral
