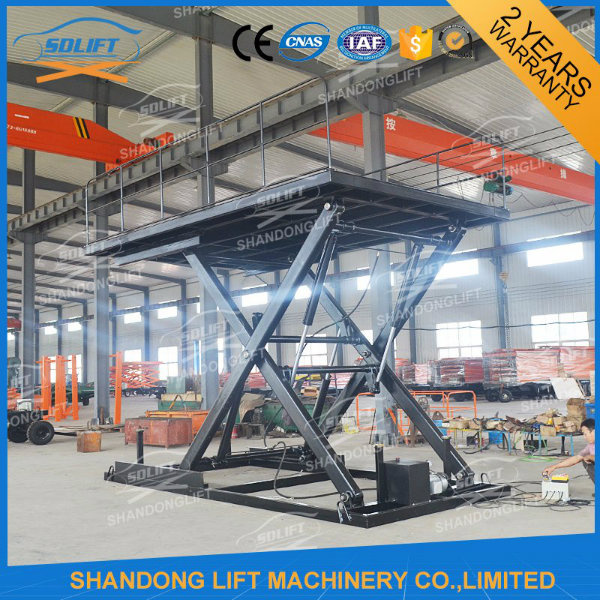

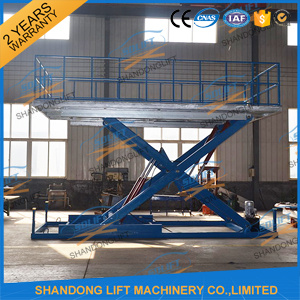

Hydraulic car scissor lift platform with CEApplication:
-The car lift parking can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
-Operation is easy. There are 2 sets control system installed on the Hydraulic scissor lift table, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
Parts Showing:
The frequent models we supplied for our clients:
| Model | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
| The hydraulic car lift can be customized as your detailed size. |
Configuration:
| Load capacity | 3000kgs |
| Platform size | 5.2m x 2.6m |
| Lift height | 2.89m |
| Height between platforms | 2.89m |
| Platform Material | 120mm*60mm rectangular tube +6mm checkered iron |
| Scissor material | 200mm*100mm*15mm high strength Manganese Steel |
| Hydraulic system | 380V/5.5Kw |
| High Precision Hydraulic Cylinder | 110*4sets |
| Piston Rod | 70*4 hard chromium plating surface |
| Hydraulic oil | summer 46#, winter 32# |
| Controller | 1 control box below, 1 control panel above platform |
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above hydraulic scissor lift.
3) Equipped 4 guide rails, to ensure the car lift parking runs more smoothly and steadily.
4) The limit switch system helps the garden scissor lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the car lift parking are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the custom car lift parking as per your requirement.
2) The most suitable car lift parking will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
