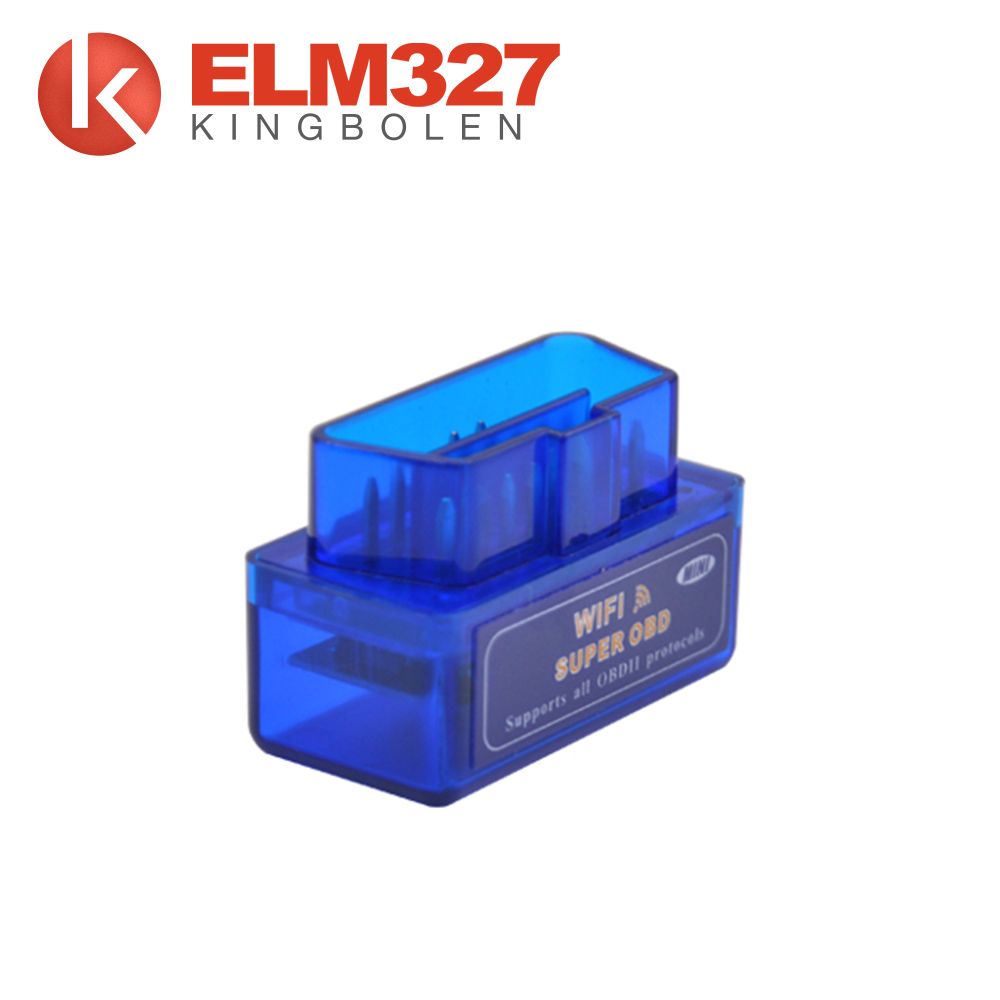

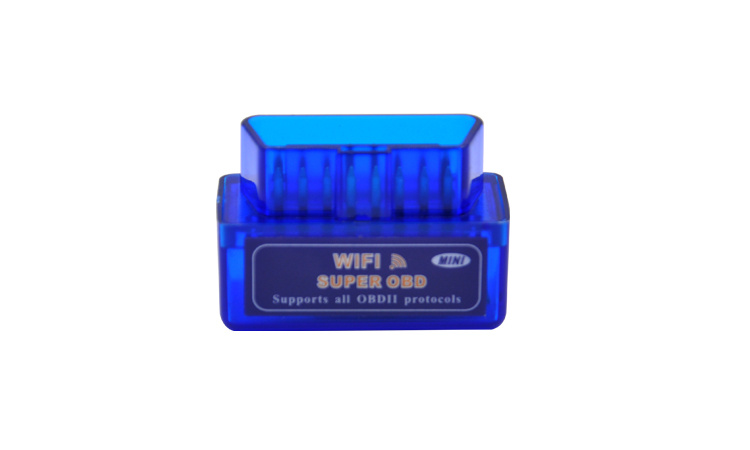

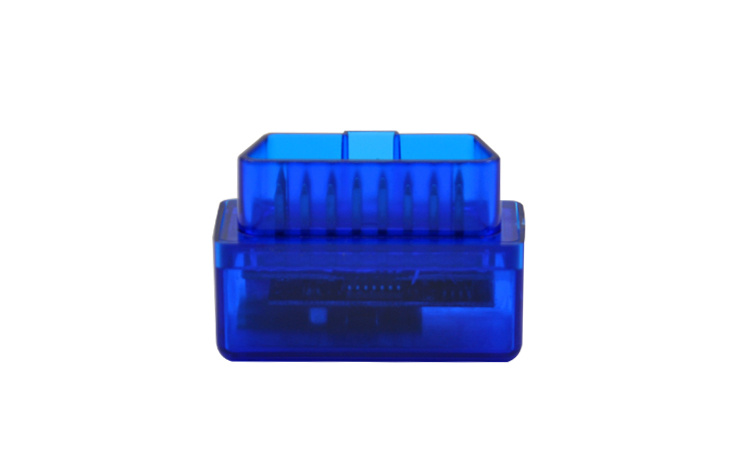

Hot Selling Mini Elm327 WiFi Elm 327 Obdii Car Diagnostic Tool OBD2 Code Reader Scanner for Ios Android Elm WiFi 327 Blue

Prod Model:	SC02-G
Bluetooth Password:	1234 or 0000
After-Sale Services:	One Year Warranty
Elm327 Function:	ECU Code Reader
Applied To:	OBD 16 Pin Gasoline Vehicels
Delivery Time:	Within 1 Day After Payment
Special Features:	WiFi
Update Method:	by Email
Testing Equipment Type:	Code Reader

Product Description

Features:

THIS LINK VERSION IS V1.5 wifi With

PIC18F25K80 Chips

1. Fully compatible with ELM327 V1.4b.

2. All ELM327 supported software are available to use.

3. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)

4. Due to the android diagnostic software becomes heavier to run, suggest to use on smart phone with CPU

800Mhz or higher, 1GHz recommended.

5. Built in power switch.

6. Low standby power consumption sleep mode.

7. Lower power consumption than ELM327

8. LED indicator is in the front side toward user for easier check of linking status.

9. Support J1939 protocol more than ELM327.

10. WiFi 802.11 b/g or 802.11n module.


Specifications:

1. OBDII decode chip: ARM 16bit MCU

2. Firmware: ELM327 Version 1.4b compatible

3. Transfer baud rate: 4800 / 9600 / 10400 / 38400 (default) / 115200 / 500K

4. Input interface: OBDII male 16pin

5. Output interface: Wifi 802.11 b/g or 802.11n after 2013 Feb 01

6. LED Indicator: Power(red) / OBD(green) / Link(blue) (PC or smart phone)

7. Operating Voltage: 12V from car OBD2 socket, including over voltage /shortage protection

8. Nominal Idle current: 45mA

9.Communication range: 500m open field

10.SSID: VGATE (discontinued) or BUYOBD (current)

11.Encryption: Open (VGATE) and WEP shared/WEP128 (BUYOBD)


Usage:

1. Keep car key at off position

2. Plug the Vgate scantool into Car OBDII female socket.

OBD2 socket is usually below the driving wheel.

The Vgate should blink all 3 LEDs and off again.

Only red power LED remains on.

3. Insert car key.

4. Switch car key to Accessory ON position,

5. Turn on WiFi of PCtebook/smart phone.

Check Windows control panel>wireless network>Setting>Advanced>Wireless mode>IEEE 802.11b/g/n.

Check android wifi setting, turn off existing link.

Check iPhone Wi-Fi networks, turn off existing link.

6. Scan the Vgate wifi device from your Desktop/Notebook PC/PDA/phone.

Find SSID "VGATE" or "BUYOBD".

The Vgate blue LED should be on now. Otherwise, the device doesn't respond to the scanning.

7. For Windows/Android,

If SSID is "VGATE", it is DHCP mode, not need to set up.

If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.

IP: select "Fixed", and enter "192.168.0.10"

Subnet mask: enter "255.255.255.0"

DNS: keep blank

For iPhone/iPad:

If SSID is "VGATE", it is DHCP mode, not need to set up.

If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.

IP: change from "DHCP" to "Fixed"!

IP: enter "192.168.0.11" or later

Subnet mask: enter "255.255.255.0"

HTTP local port: enter "35000"

8. App setup: select Vgate device as KiWi wifi or ELM327.

Click link, app will build a link to Vgate.

App may take time for scaning vehicle protocol less than a minute or so.

App starts to show static data once recognize the protocol and has correct table of associated sensor.

The Vgate green LED should be blinking now.

The faster data rate the protocol is, the the faster the green LED blinks.

Turn off the app, not    minimize", if app fails to link and doesn't show data. Start another app and try again.

Some vehicles may have to turn car key to "ON/Start" position to activate car ECU.

Turn car key to "ON/Start" position to read real-time data.

Communication Protocol

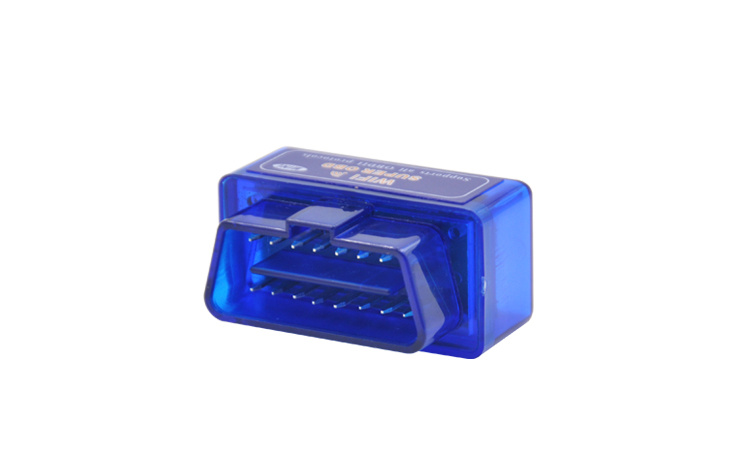

OBDII 16-pin DLC definition:
1. n/a

2. Bus + (SAE J1850 PWM, VPW)

3. n/a

4. Battery -

5. Signal -

6. CAN High (ISO 15765-4)

7. K Line (ISO 9141-2, SAE J2234)

8. n/a

9. n/a

10. Bus - (SAE J1850 PWM, VPW)

11. n/a

12. n/a

13. n/a

14. CAN Low (ISO 15765-4)

15. L line (ISO 9141-2, ISO 14230-4)

16. Battery +

Only pins 2, 4, 5, 6, 7, 10, 14, 15, 16 defined by above standards read data.


Other Customized pin are not supported.

Please confirm OBDII label located under front engine hood.

Support OBDII/EOBD2 protocols:

ISO 15765-4 (CAN-B 125Kbps, started since 2003 in USA)

ISO 15765-4 (CAN-C 500Kbs, 11bit ID, 29bit ID, started since 2003 in USA)

ISO 14230-4 (KWP2000)

ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)

SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)

SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)

SAE J1939 the Data link connector standard


Function

1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes) and its

meaning.

2. Clear DTC, turn off dashboard MIL "Check Engine" Light

3. Display sensor data, including:

Engine RPM

Load

Coolant Temperature

Fuel Status

Vehicle speed

Intake Manifold pressure (MAF/MAP)

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltage /short term fuel trim

Fuel Pressure


Software Support:

Driver: It does not need.

1.Applications supporting ELM327 chip:

PC windows (supports RS232/USB/bluetooth):

Auto Enginuity ScanTool 6.02 for PC in English/German/Hungarian/Spanish

Dashcommand by Palm Performance, Win 95/98/ME/2000/XP/Vista/7, support touch pad.

Digimoto 5.01.22

Easy OBDII 3.0.0

EVOSCAN for Mitsubishi 1994~2009, Mitsubishi EVOX 2008~2010, Subaru SSMII 1997~2007

FiatECUScan for Alfa/Fiat/Lancia, Win XP/Vista/7

for G-M mode 22 scan tool by Terry

moDiag Professional in English/German/Hungarian/Romanian, Win 2000/XP/Vista/7

MultiECUScan

OBD 2007 PID reader for PC and pocket PC by GLM Software

OBD Logger Windows & Unix by Jonathan Senkerik

OBDScan for G-M for Ford Chrysler Mazda. Win 2000/XP/Vista/7

OBD-II ScanMaster 3.52 in English/German/Russian by Wladimir Gurskij

OBD-II ScanMaster Pro

OBD2 Scantool by Ivan Andrewjeski

OBDII for ELM322 by David Huffman

OBDWiz

PCMSCAN for Windows 95/98/ME/NT/2K/XP/Vista/Win7

ProScan for Win 98/98SE/ME/2000/XP/Vista, NT4.0 SP6A.

pyOBD by Donour Sizemore for MacOSX and Linux

RDDTC Simple Trouble Code Reader by Pete Calinski

Real Scan by Brent Harris, Simple Read & Reset software for older PC.

ScanTest by Ivan Ganev aka a-ser for Pocket PC

ScanMaster-ELM 2.1, Win 98/ME/2000/XP/7, USB/Bluetooth/WLAN, OPEL 1996~2004, Alfa Romeo 1998~2001,

Fiat Bravo 1998~2002

ScanXL ELM (1996~2008 for Ford, Lincolin, Mercury)

ScanXL PRO, Win 95/98/ME/NT/2K/XP/Vista/7

TouchScan for Win2000SP4, XP SP2, Vista 32/64, 7 32/64, serial/USB/Bluetooth/WiFi/touch screen, EOBD/JOBD,

?90?PID, for Nissan

Vauxcheck by Gendan, Vauxhall/Opel 1997~2008 petrol/diesel (2004~2008 CAN bus), Renault Vivaro/Movano,

Vectra C diesel 2002~2003

VitalScan 1.3 for Win, Win Mobile, Palm, Win smartphone

WGIobdII

wOBD by WDT



2.Palm/Pocket PC (supports RS232/USB/bluetooth):

AutoEnginuity for Win PPC 2002/2003 v4.2, mobile 2003SE/2005 v4.4

AutoEnginuity for Palm 3.5+

EVOScanPPC for Mitsubishi 1994~2009 /Subaru,Win CE 4.2/5.0/6.0, Pocket PC 2002/2003, Win Mobile 5/6/7

OBD Gauge for PalmOS & Pocket PC by Dana Peters

ScanMaster-PPC for Pocket PC, Win Mobile


3.Nokia Symbian : (supports bluetooth)

AutoMobile (Blackberry, LG, Nokia, Motorola, Samsung, Sony Ericsson)

OBDScope (free trial and paid EUR9.95)

Nokia N800 & N810 internet tablet (supports bluetooth)

Carman

4.Android: (supports bluetooth)

alOBD scanner

DashCommand 2.9.1 by Palmer Performance

Torque by Ian Hawkins, Android 1.5/1.6/2.0/2.1

VoyagerDash by GTOSoft

5.iOS: (supports wifi)

DashCommand

Rev2 lite

NovaScan

Package including:

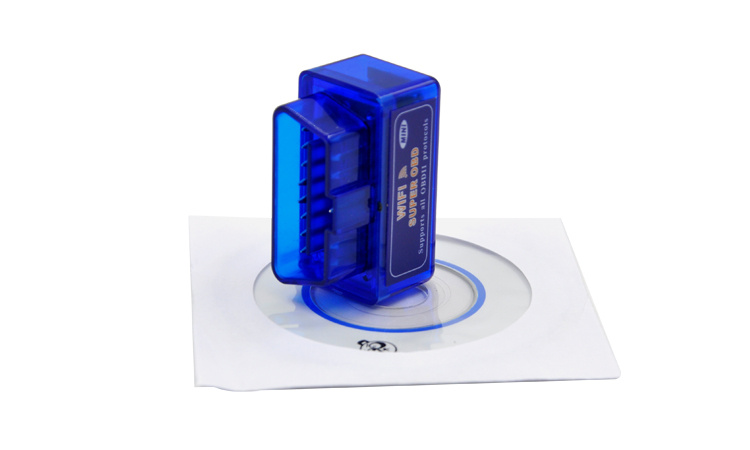

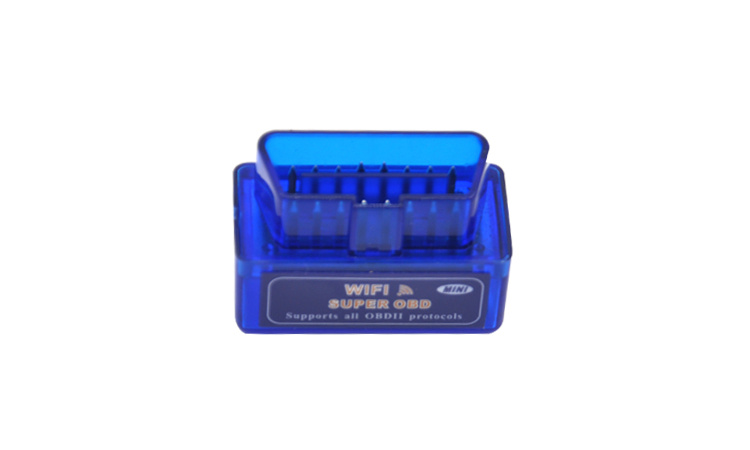

1 x WIFI  ELM327 for Android IOS Car Scanner

1 x CD driver
