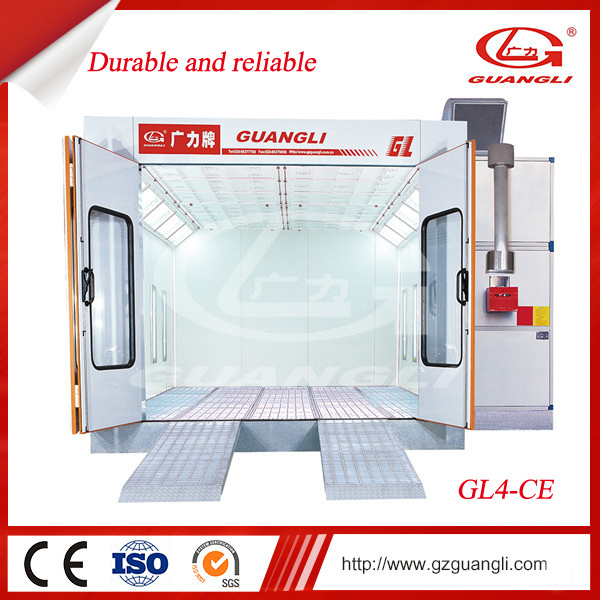

High Standard Automotive Spray Paint Bkaing Booth Water Based Device for Option (GL4-CE)
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
--Basement: steel structure, full grids. -ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
--One 7.5kw intake fan and one 7.5kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello Brand burner.
--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.
--Control box: imported components, overload, overheat, phase-lacking, phase-locking protection, engine Y/△ start.
--Automatically stop when preset time is up.constant temperature spraying.
--Environmental filter: the equipment can be adopted M style activated
| Technical Specifications | GL4-CE |
| External size(m) | 7.0×5.3×3.5 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 24000 |
| Inside on-load air speed(m/s) | 0.30-0.35 |
| Water-based paint device | As option |
| Power (kw) | 18 |
| Vehicle suited | Saloon car |

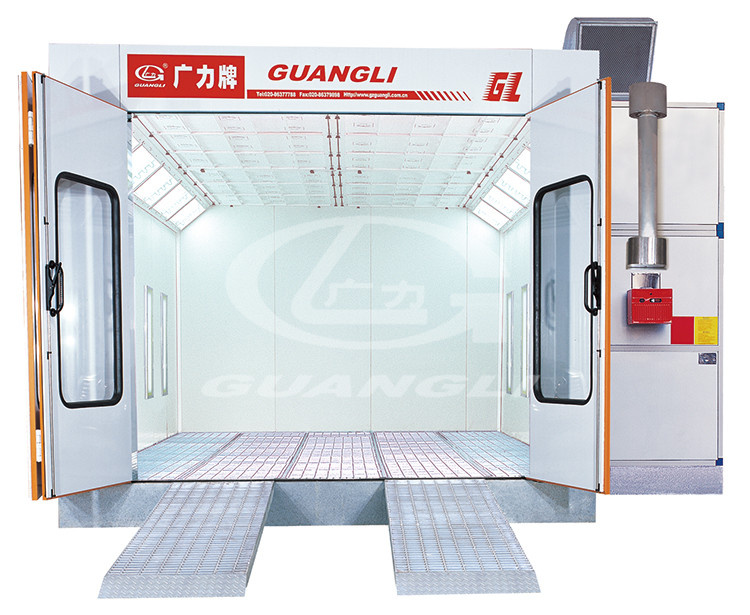

GuangLi Spray booth Show
Other product series

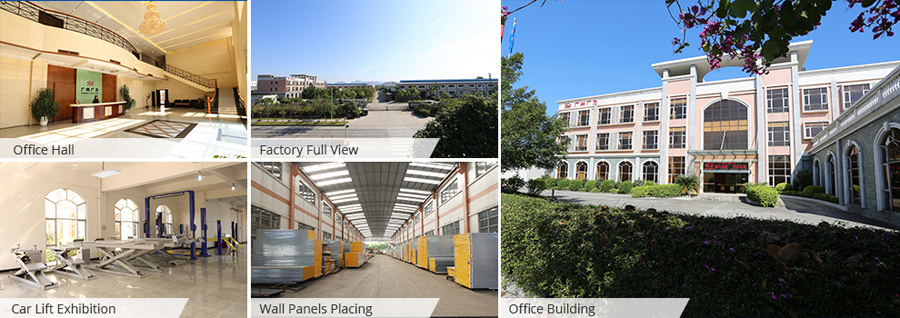

Company ProfileGZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China,
having a good reputation among Chinese auto-maintenance enterprise.
Founded in 1994,GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift
manufacturer for 22-year technical and production experience.
Our products have been approved and authorized in many car manufacturers' and thought
highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

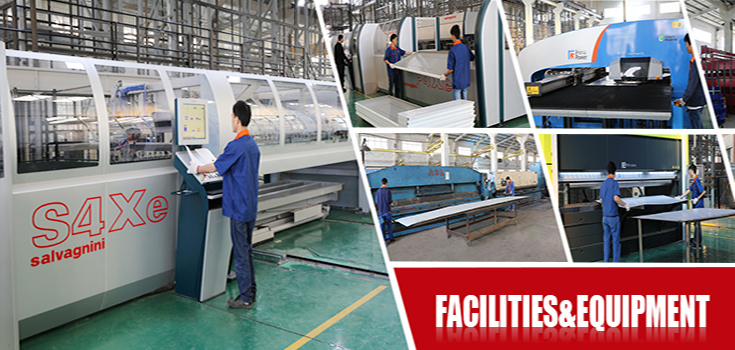

EquipmentWe have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

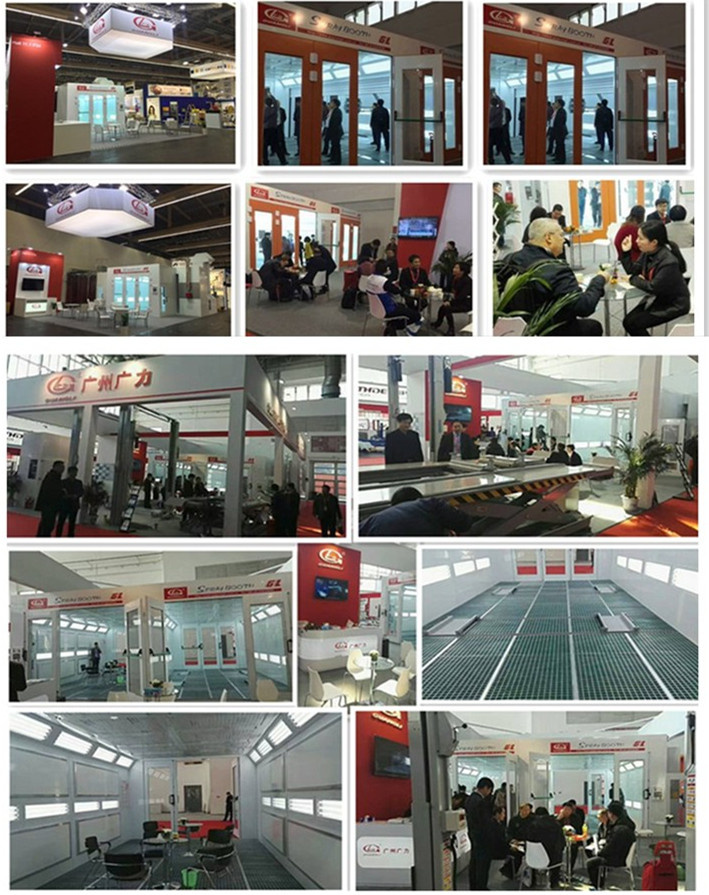

Exhibition
FAQ1.Are you a factory or Trading company?
A:We are a factory with export department.
2.Where is your company located? How can I visit there?
A:Our company is located in Guangzhou all clients, from home and abroad, are warmly welcomed to visit us.
3.How about the quality of the products?
A: With the advanced machines, technology and material sources, our products are quite excellent in performance and craftsmanship.
B:Customized material and standard are acceptable. We can offer different standards according your market and favor.
4.What's the MOQ for each items?
A:We accept one piece/set each time.
5.What's the delivery time?
Bulk Order:15-25 working days
Warmly Welcometo contact.
