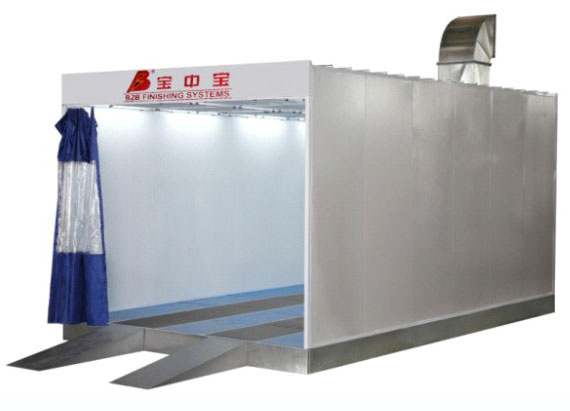

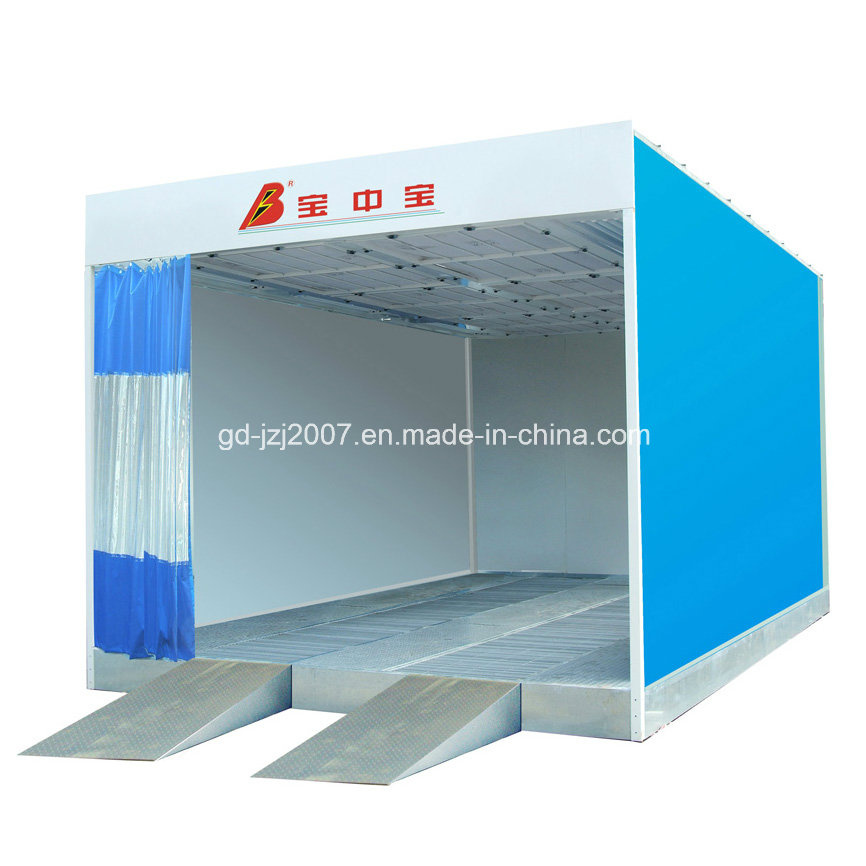

High Quality Prep-Station Spray Booth

Prod Model:	BZB-6500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

BZB6500 Mixing Room
Outside Size 7150x4000x3430 mm ( LxWxH)
Inside Size 6000x4000x2650 mm ( LxWxH)
Total power 7KW
Cabin System Top Wallboard Galvanized Steel Sheet Construction
Side Wallboard EPS(epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation Galvanized Steel Roof Panel.
Basement Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction.

Two sides with PVC soft curtain, back with wall panel.
Air Circulation System Model YDW-5.6S
Blower Capacity 15000m3/h
Pressure 800Pa
Rolling Speed 900rpm
Power 5.5kw
Quantity 1 sets
Air Purification System Multi-layer Filtering Structure, supported by the ceiling meshwork, easy to change. The Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust.
Environmental System Dual Filtering Structure, The First Filter, under the Grids, Can Capture bigger Granules. The Second Filter, the Fiber glasses Filter, under the Exhaust Cabin, Capture the rest Granules.
Lighting System Ceiling Light: 24 PCS 36w Philips Lamp;
Electric Controlling System Light Switch, Mixing Switch, Emergency Stop Switch, Breakdown Alarm
