Ce Certification and Spray Booths Type Paint Prep Station for Sale

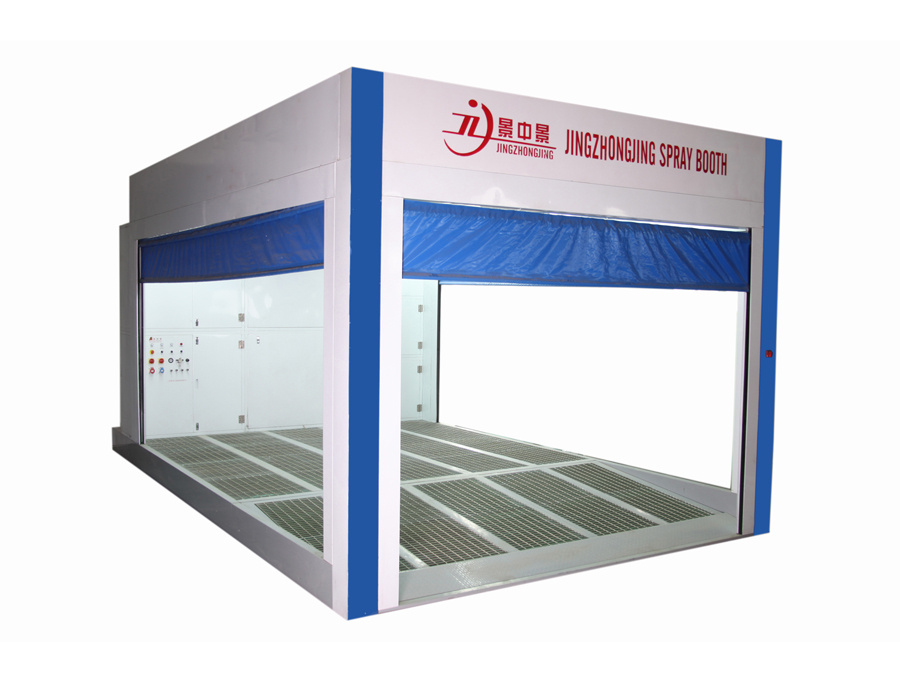

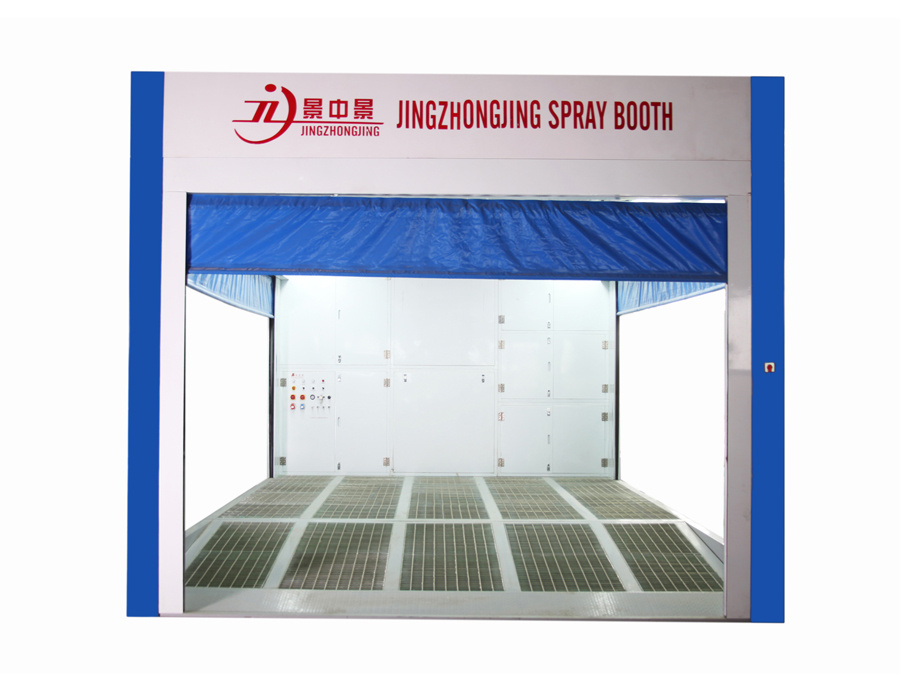

Name: Ce Certification and Spray Booths Type Paint Prep Station for Sale
Brand: ibuyautoparts.com
SKU: 734989035
Availability: InStock
Rating: 4.9 (78 reviews)

Price:	US $ 3599-6500/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

rep station explain:
outside size(mm) 7150*4000*3430
inside size:6000*4000*2650
total power:7KW.

Cabin system: 1: roof construction: cold rolling plate: galvanized steel.
            2: front and side:PVC soft slipping curtain, manual control
            3: back wall board: EPS steel skin board, 50mm thick.
Circulation system: 1: centrifugal fan, capacity 15000m3/h, speed 900rpm, 1set, power 5.5KW.
             2: fan cabin: profile framework, assembly of steel plate cabin: durable, beautiful and easy for maintenance.
Purification system: multi-layer filtering structure, the ceiling filters capture granules bigger than 5um,the whole purification system has capacity of large volume of dust.
Environmental system: dual filtering structure, the first filter, under the grids, captures bigger granules, the second filter, and the fiber glass filter, under the exhaust cabin capture the rest granules.
Lighting system: ceiling light:24 pcs 36W Philips lamp, light can make the room bright and uniform, ballast is professional and durable.
Controlling system: it is assembled by good electronic components. Main circuit has multi-protection.Working switch, light switch, emergency stop, breakdown alarm.

Prod Model:	BZB-6600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	White,Red,Orange,Blue.......
Voltage:	as Require

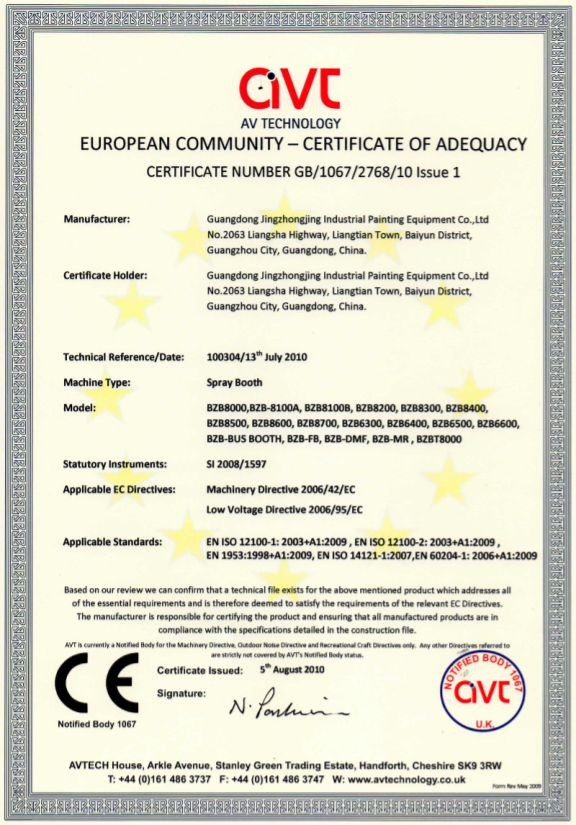

Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
