High Quality Cheap Car Simple Prep Station

Prod Model:	BZB-6100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

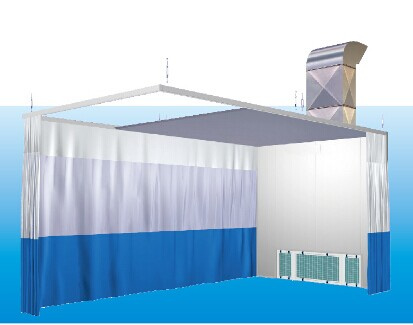

Name: Prep-station

Model: BZB-6100

Specification
Inside Size(mm): 6400×4000×2650 (L×W×H)
Outside Size(mm): 7650×4106×2700 (L×W×H)
Total Power(KW): 6.5

Cabin System:
 1. Ceiling: One half is EPS panels, one half is empty hole as inlet air place;
 2. Front and side: PVC soft slipping on Aluminum guide by manual;
 3. Back wallboard: EPS steel skin panel,50mm Thick;

Circulation System:
 1. Inlet Fan Model: Centrifugal YDW-5.6S; Air Capacity: 15000m3/h; Pressure 800Pa; Rotate Speed: 900rpm;Power: 5.5KW;Qty:1 set
 2. Fan Cabin: Profile framework, Assembly of steel plate cabin; Consturcion: Solid, beautiful and easily to maintain;

Purification System:
Filtering stucture: mutli-storey fixed under the top network, no corrosion, and can capture guanules larger than 5um;

Lighting System:
No (Ceiling lights for option: 4 group*2 pcs*36W)

Controlling System:
It is assembled by good electronic components. Main circuit has Multi-protection. Working Switch, Light Witch, Emergency Stop, Breakdown Alarm.
