High Quality Ce Standard Electrical Spray Booth
| Price: |
US $ 5800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
GW-ST300A |
| Inside Dimension: |
6900X3900X2700mm |
| Outside Dimension: |
7000X5350X3400mm |
| Main Door: |
3000X2600mm, 3 Folds Metal Sheet |
| Emergency Door: |
750X1800mm with Pressure Lock |
| Basement: |
No |
| Inlet Fan: |
Natural Air Inlet From Top Open on Ceiling Panel |
| Exhausting Fan: |
1 Set 5.5kw Turbo Fan |
| Heating Method: |
Electricity |
| Lighting: |
Famous Brand LED Lights |
| Wall Panel: |
50mm EPS with Double Sides 0.4mm Color Steel |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Ginwave Forest |
Product Description
Detailed Specifications| Item | Detailed specification |
| Inside dimension | 6900×3900×2700 mm(L×W×H) |
| Outside dimension | 7000×5350×3400 mm(L×W×H) |
| Front door | Folding door, 3 folds, 3000×2600mm,(WxH), metal sheet, color : blue, red, white, orange |
| Emergency door | 1 unit, 750×1800mm(W×H), color: white |
| Basement | No |
| Wall panel |
Thickness: 50mm, width:950mm, tongue and groove structure, 0.4mm color steel with EPS inside, color: white. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×16W, LED lights. The lighting boxes open outside, and with powder coating. illumination≥1200Lux |
| Intake and Exhaust system | Air Inelt: Natural air inlet from top open on ceiling panel. |
| Air outlet: 1x5.5kw turbo fan for exhausting, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. Standard air duct is 3m. |
| Heating system | 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. Max temperature: 80ºC |
| Spray to baking switch | Auto Pneumatic damper |
| | Chimney ducting | | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system | | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter | |
| Roof | |
Galvanized steel | |
| Control system | |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, emergency stop, hour meter, temperature limit controller. | |
| Total power | 16 KW |
Pictures

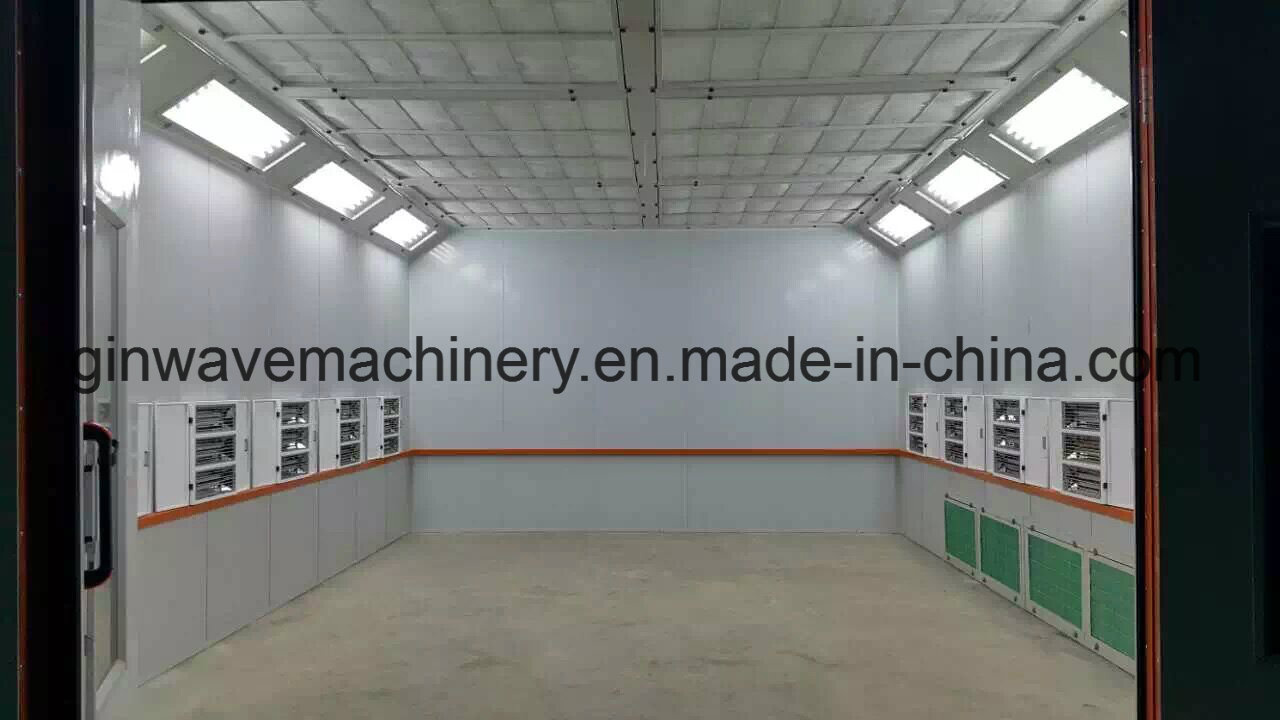

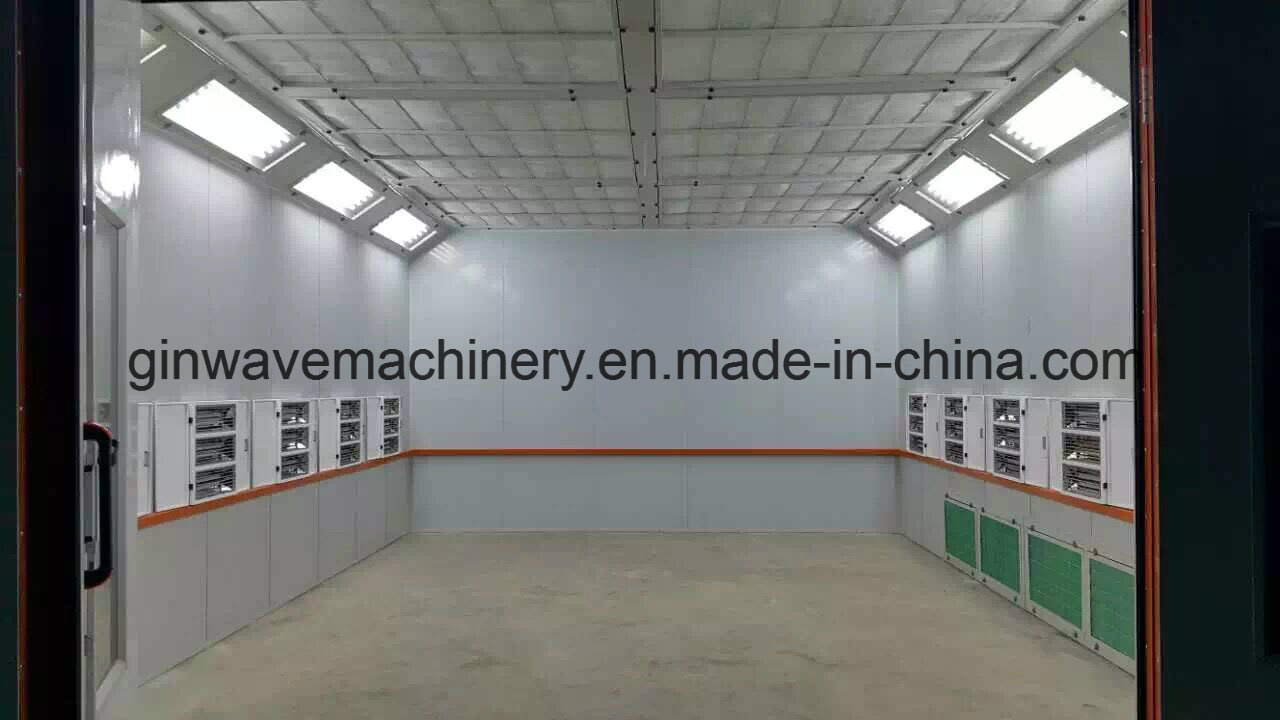

inside view

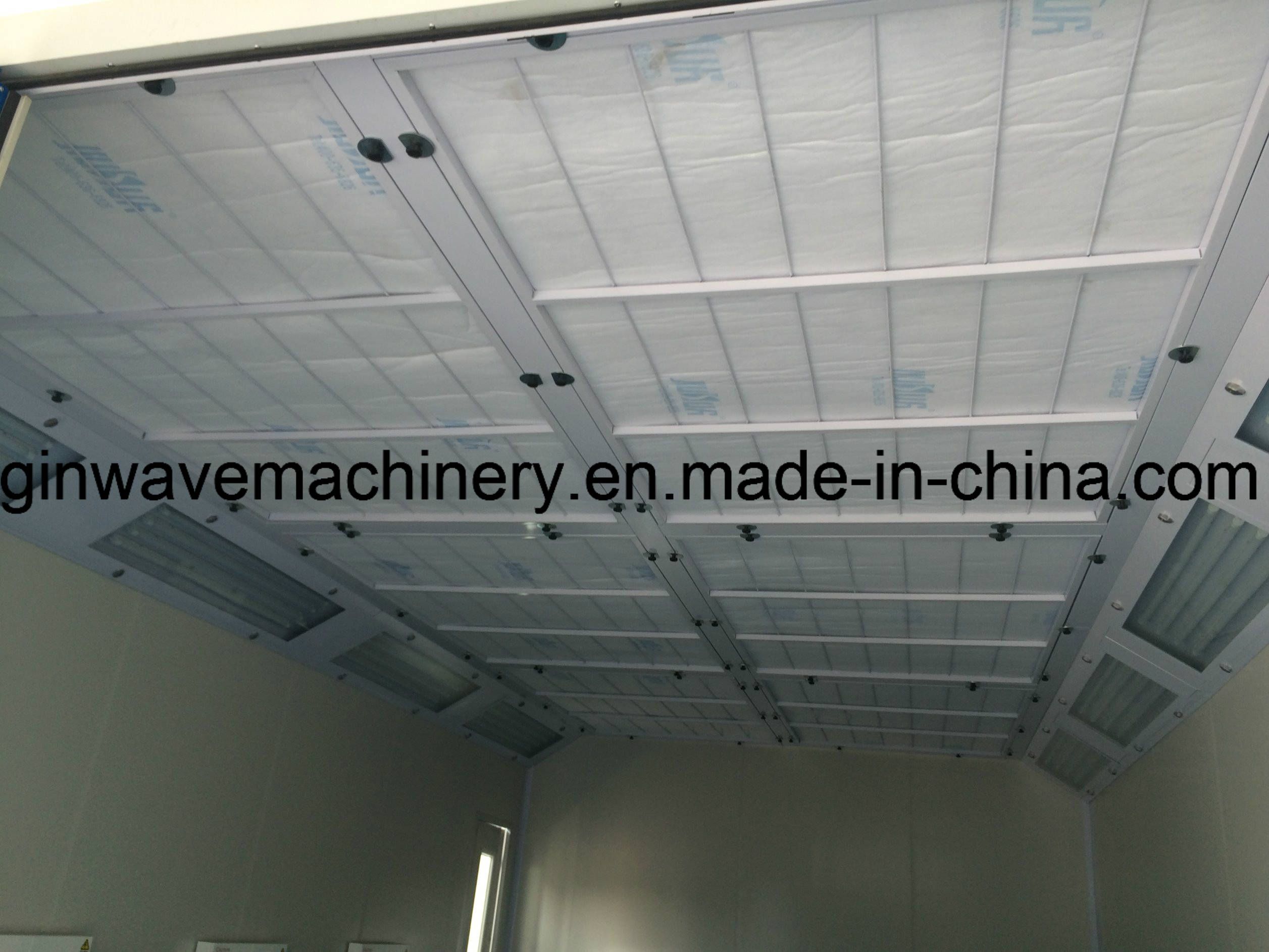

Ceiling
Main Door Inside View

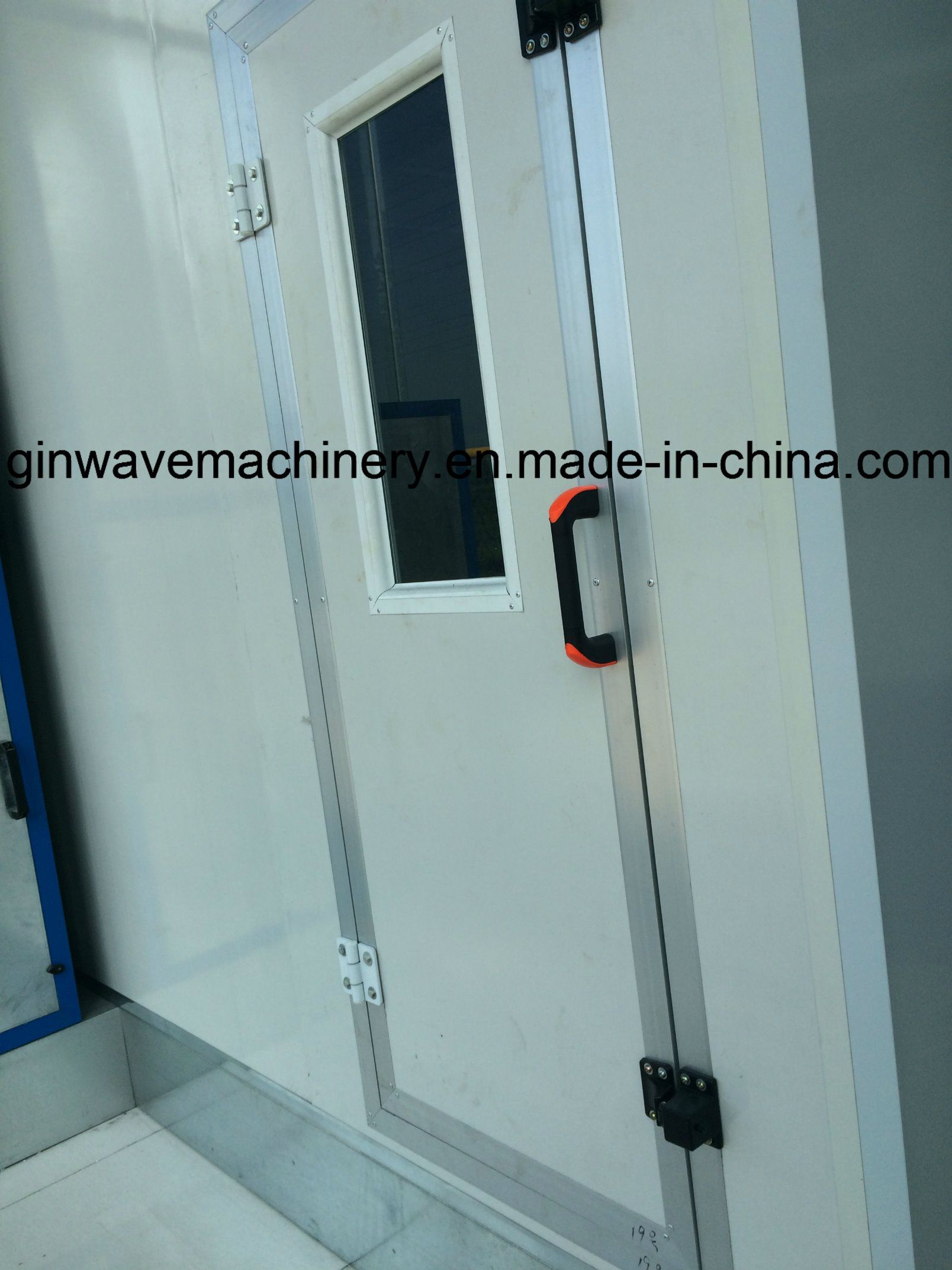

Service Door

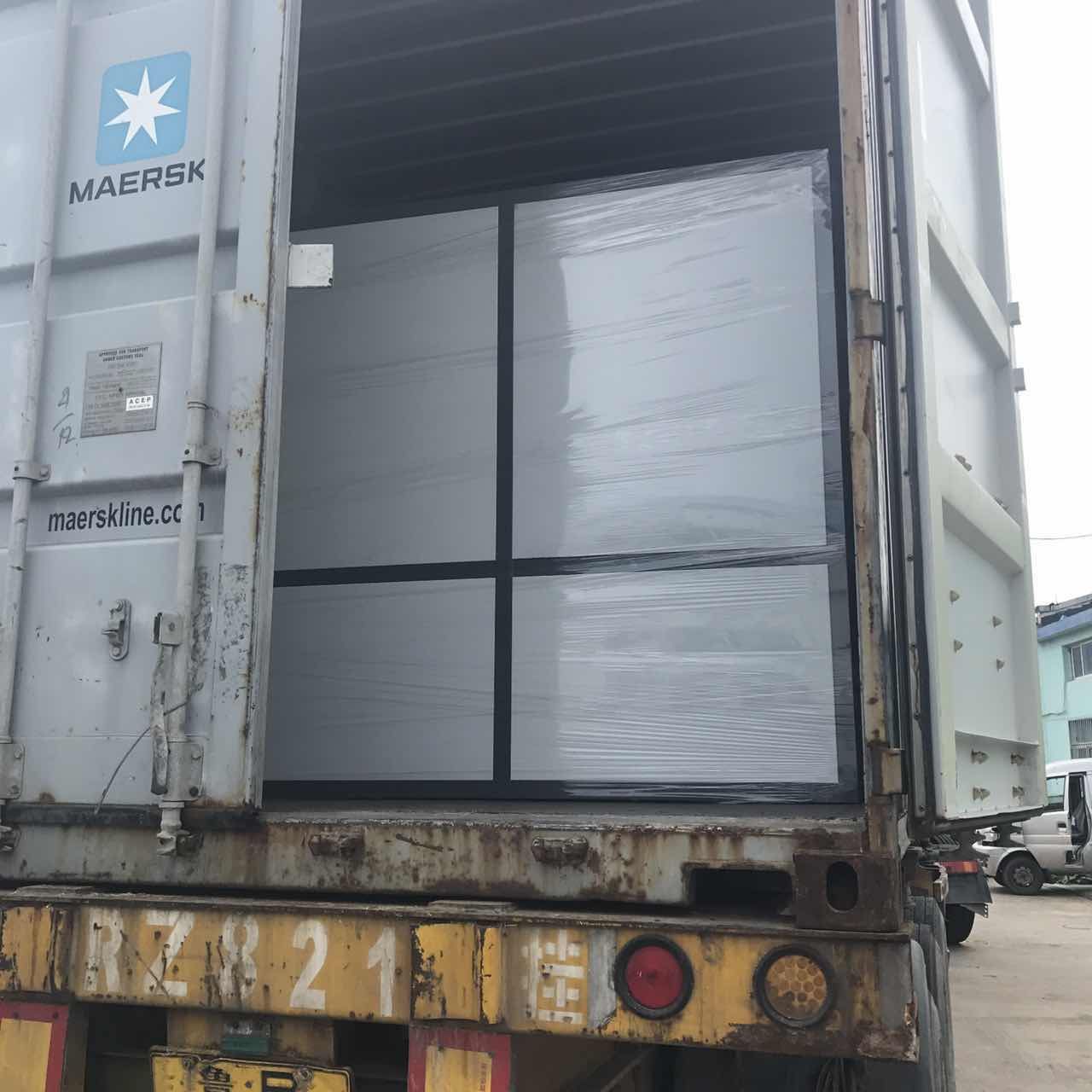

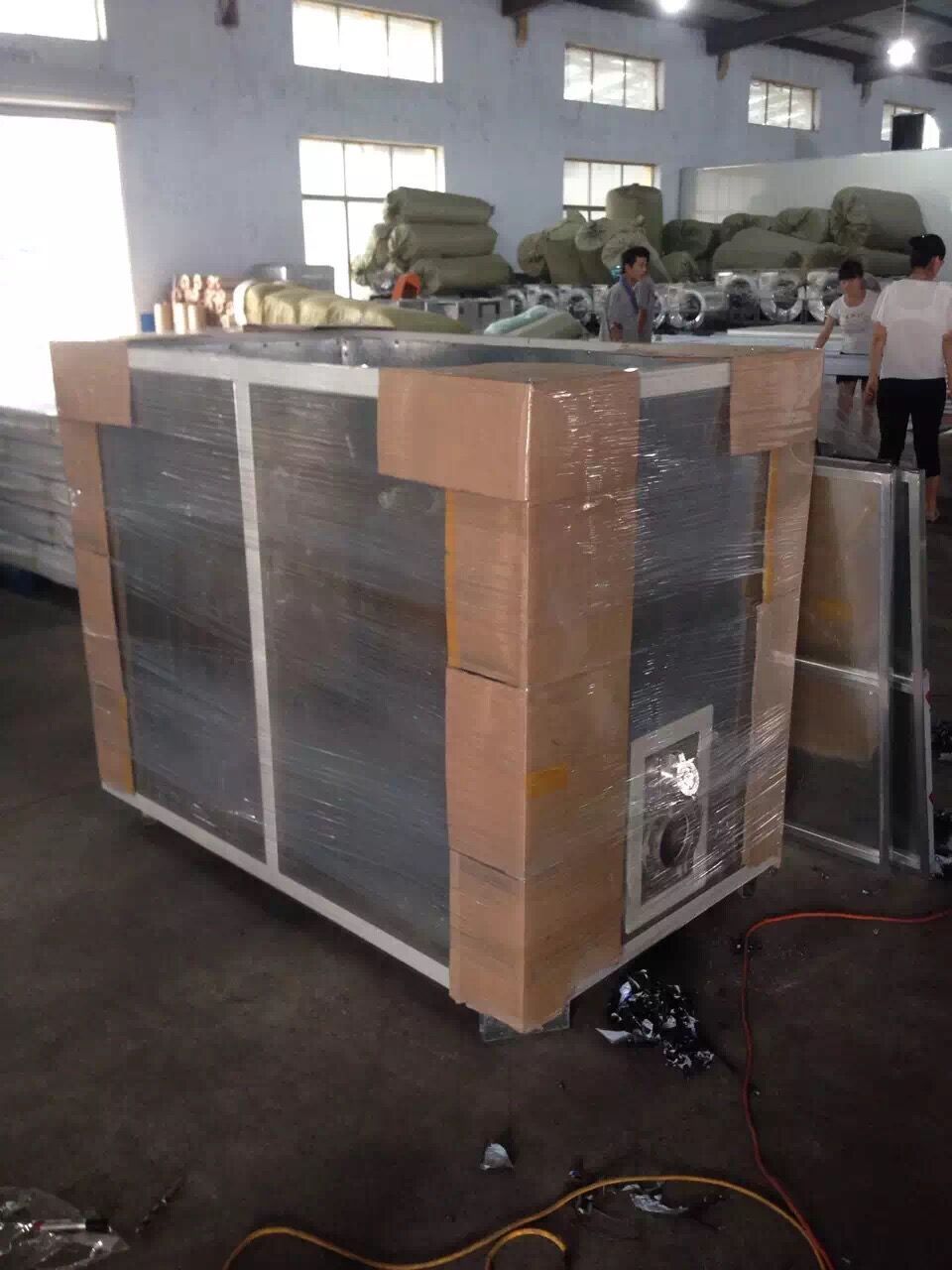

package and loading
We supply 2 years warranty!
