Detailed Specifications | Item | Detailed specification |
| Inside dimension |
6900×3900×2700 mm(L×W×H) |
| Outside dimension |
7000×5350×3400 mm(L×W×H) |
| Front door |
Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, metal sheet. stronger and better sealing |
| Emergency door |
1 unit, 750×2000mm(W×H). |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support,
3 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 50 mm, width:950 mm, tongue and groove structure, 0.5mm color steel with antiflaming EPS inside. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×16W, with electronic ballasts, lighting boxes open outside, illumination≥900Lux. |
| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 2×4 KW Double-intake belt centrifugal fan, air capacity: 29000m3/h. |
Outlet:1×5.5KW Double-intake belt centrifugal fan, air capacity: 20000m3/h. |
| Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000Kcal/h. |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Powder coating filter frame. |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
power supply switch, emergency stop, hour meter, temperature limit controller. |
| Total power | 15.0 KW |
| | |
Our Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !

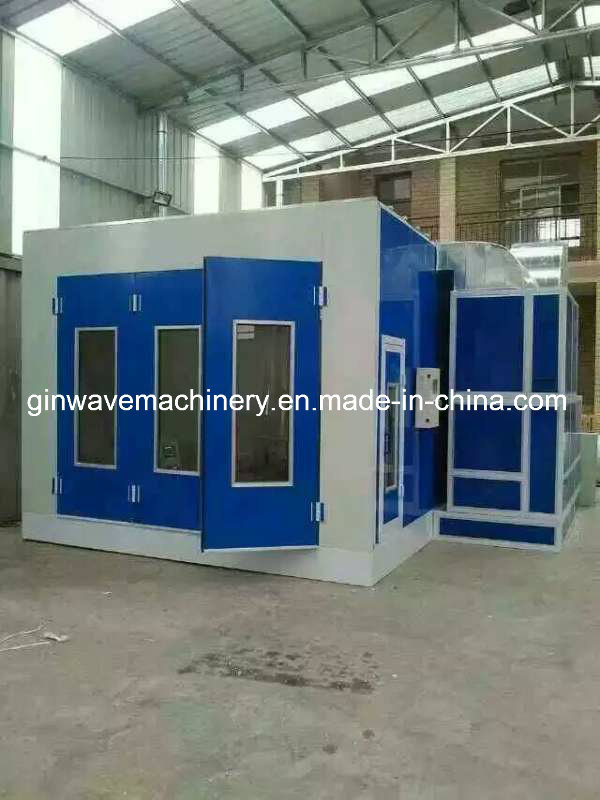

*Personalized design to meet customer various needs! ! ! Front View

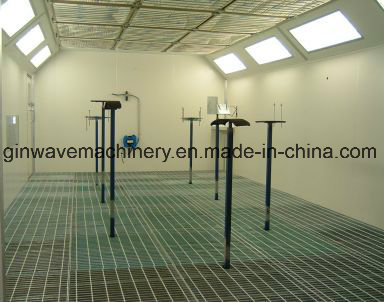

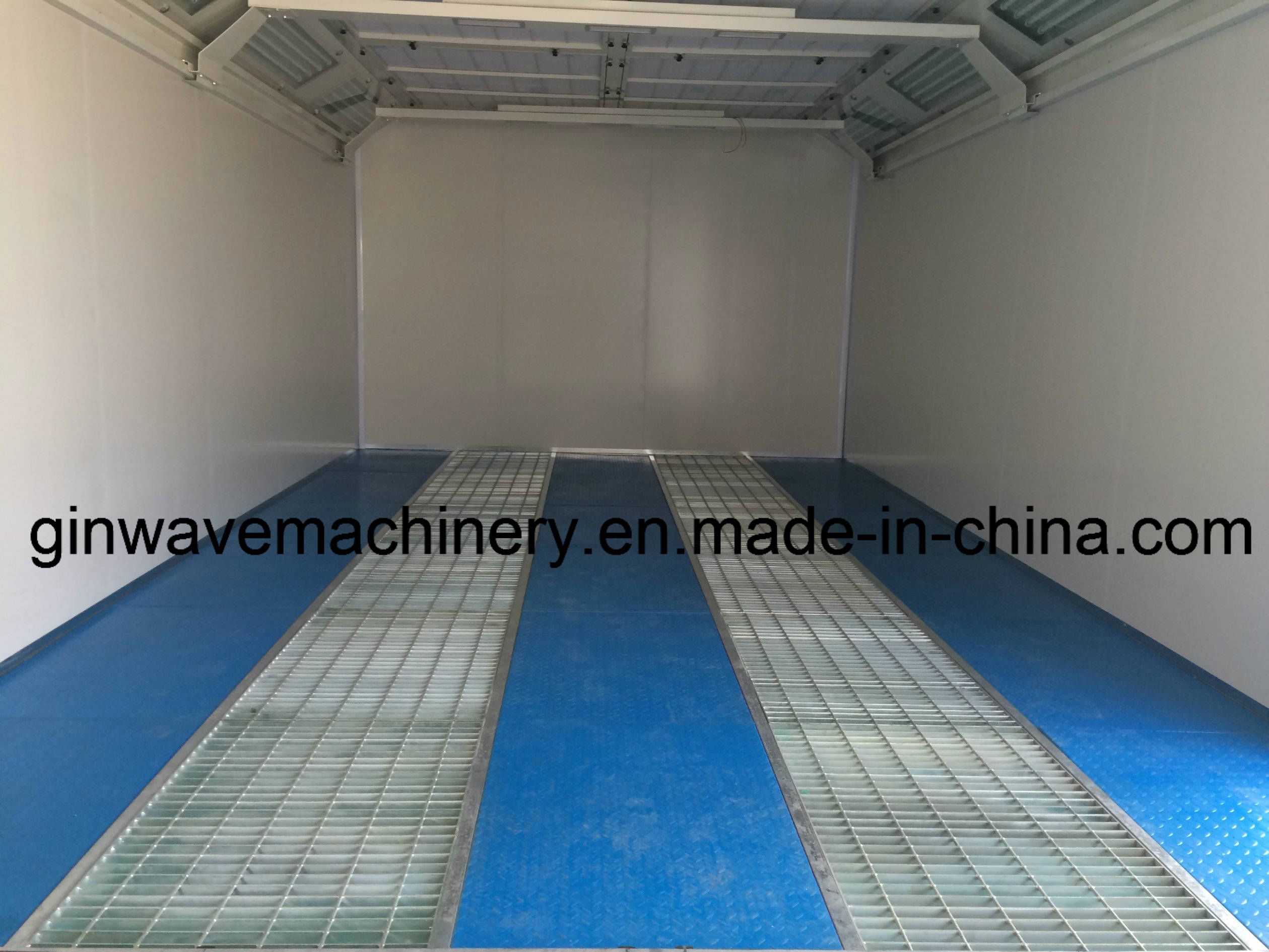

Inside View

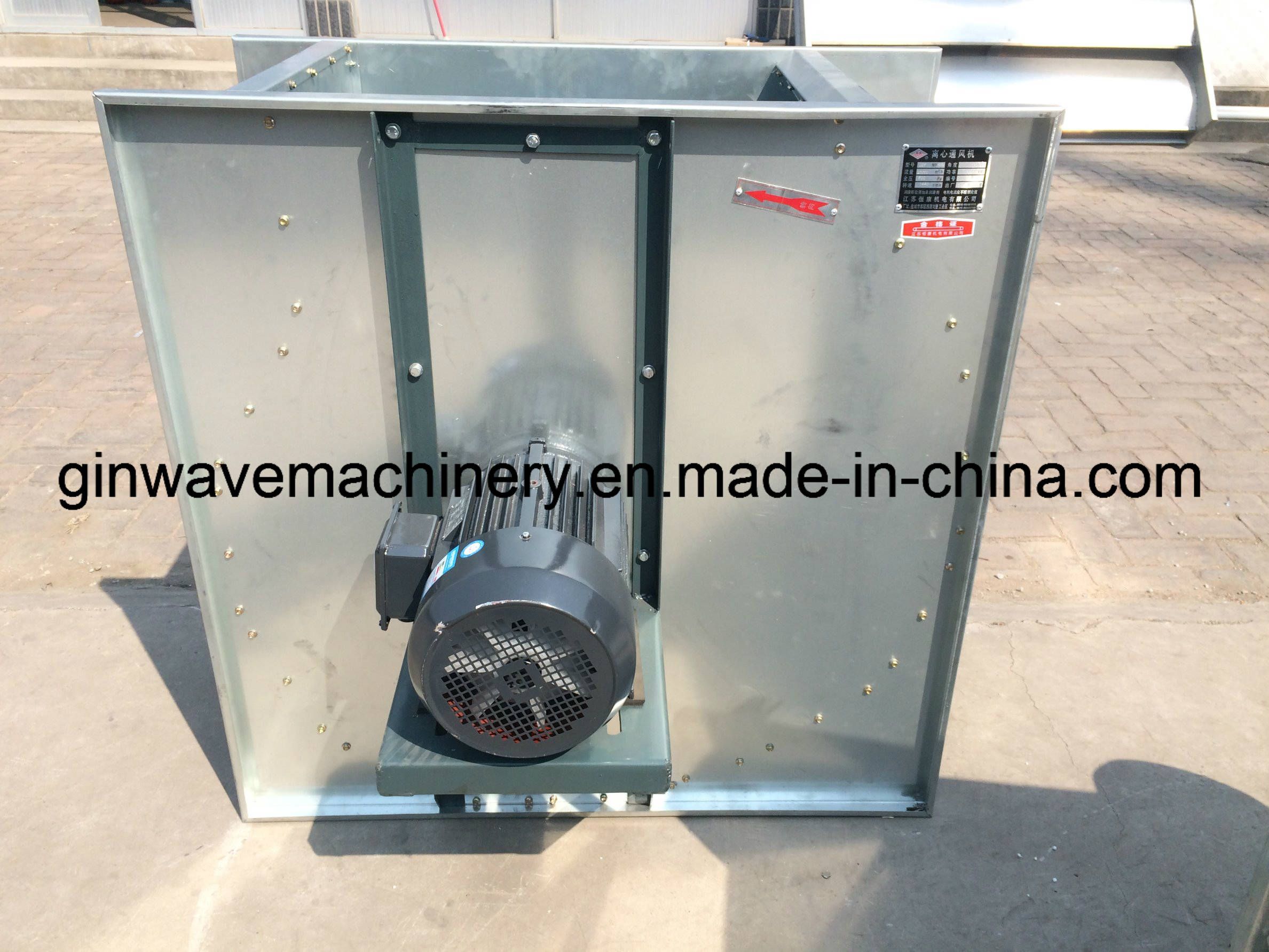

The fan
Package and Loading

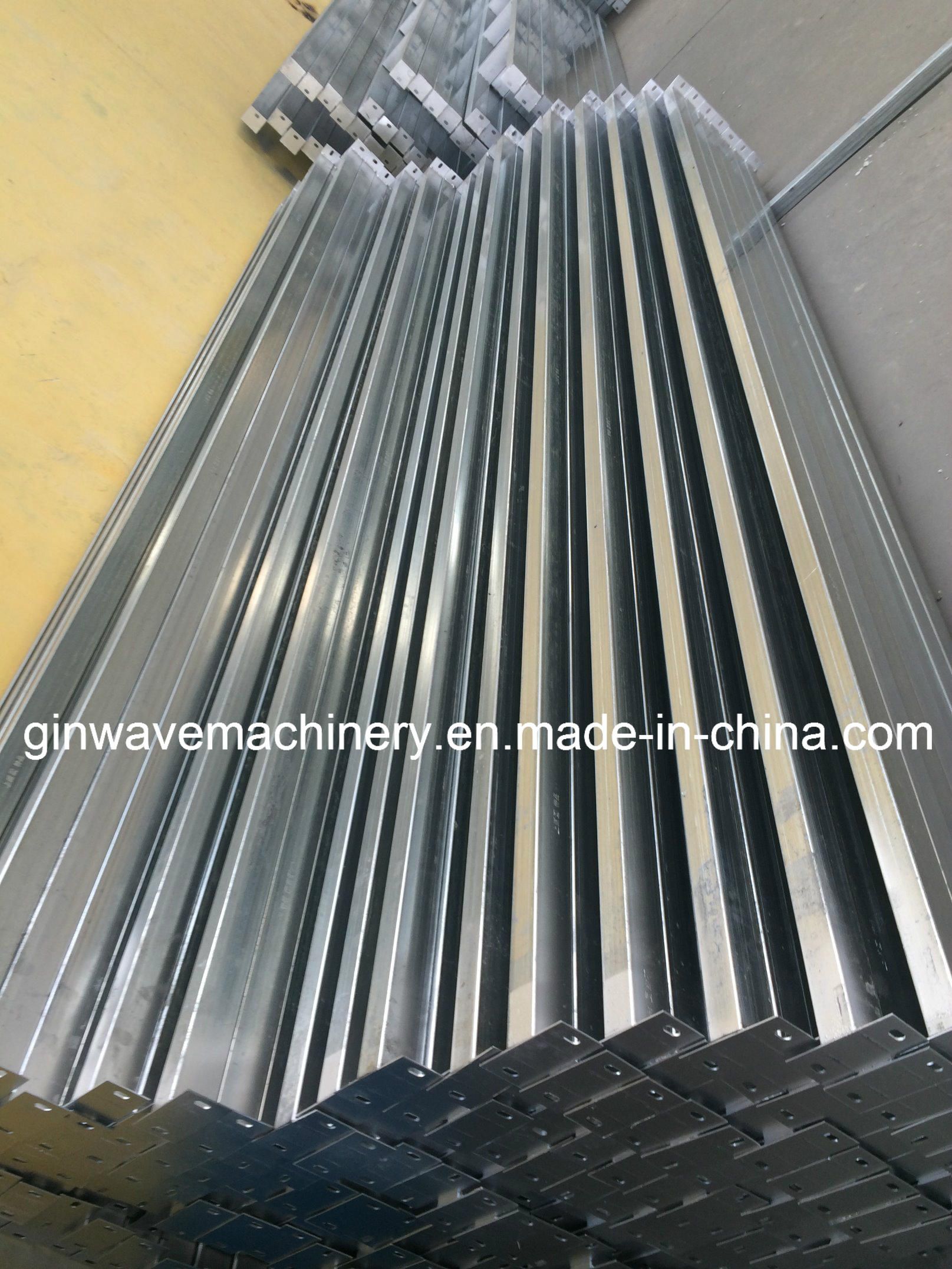

Workshop and enough stock
Detailed Product Description
Car Maintenance Diesel Burner Water paint Drying Room, Water Spray Booth
Customized Car Painting And Baking Water Spray Booth, Waterborn Paint Drying Room
Stainless Steel Heating RIELLO Burner Car Paint Baking, Water Spray Booth, Station
Emergency Stop Car Waterborn paint and drying Room, Water Spray Booth
Auto paint drying Station, Water Spray Booth with Stainless Steel Heating Exchange
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
Qingdao Ginwave Forest Precision Machinery Co.,Ltd
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply 3 years warranty, good after sale service will let you have insurance for using our product.
