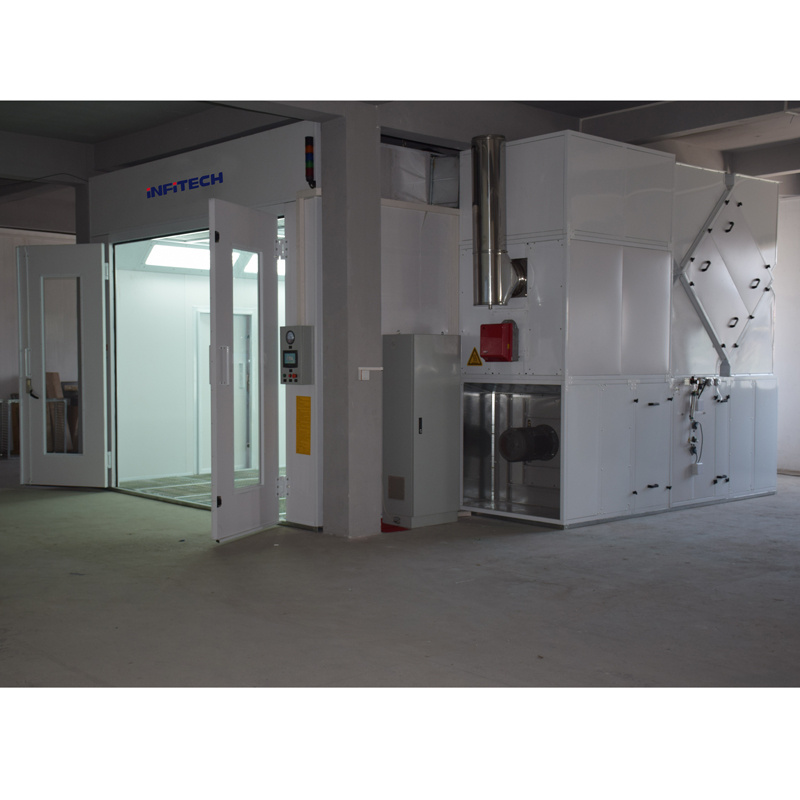

High Quality Automotive Painting Room Car Paint Spray Booth
| Price: |
US $ 18500-20000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
YFT-1101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optional Colour: |
White, Blue, Orange and Red |
| Empty Loaded: |
+/- 0.32m/S |
| Brightness: |
>1500 Lux |
| Motor Brand: |
Siemens |
| Air Exhaust: |
Optional |
| Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
| Inside Dimention: |
7000X4000X2800 |
| Service Time: |
Lifelong Maintenance |
| Heating Exchange Capacity: |
315kw |
| Total Fan Capacity: |
35000 M3/H |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Airflow Direction: |
Full Downdraft |
Product Description
YFT-1101 Spray Paint Booth
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter: | Airflow | Internal Size(mm) | External Size(mm) | Heating Modes | Inlet/Exhaust fan | LED Ceiling Lights | LED Side lights | Empty Loaded
Air Speed |
| Full downdraft | 7000X4000X2800 | 7110x5760x3810 | Oil/Gas | 2X11KW | 8 set/4X24W | 8 set/2X24W | 0.32 m/s |
| 8000X4000X2800 | 8110X5760X3810 | Oil/Gas | 2X11KW | 8 set/4X24W | 10 set/2X24W | 0.28 m/s |
| 9000X4000X2800 | 9110X5760X3810 | Oil/Gas | 2X11KW | 10 set/4X24W | 12 set/2X24W | 0.25 m/s |
Airflow
1.Downdraft for spray .
2.Cabin pressure self-regulation.
3.Innovative high efficient big impeller fan ,sparkproof design (SIEMENS).Entrance door
1.2+1structure, 3 observation windows with armoured glass.
2.Safe door,observation windows with armoured glass,emergencylamp,door closer . Cabin structure
1.Full grids, 900kg/ wheel
2.heat-resistant rock wood panel,base plate thickness:0.6mm
3.600mmheight plenum chamber /350mm height basement
4.European bulge roof designHeating system
1.315KW high efficient , energy-saving heating exchanger
2.Cabin pressure self-adjusting
3.Double protection with over temperature Control system
1.Invert energy saving system.
2.Touching screen man-machine interface device.
3.PLC control system
4.Water-based paint high efficient model
5.Intelligent recognition safety device.

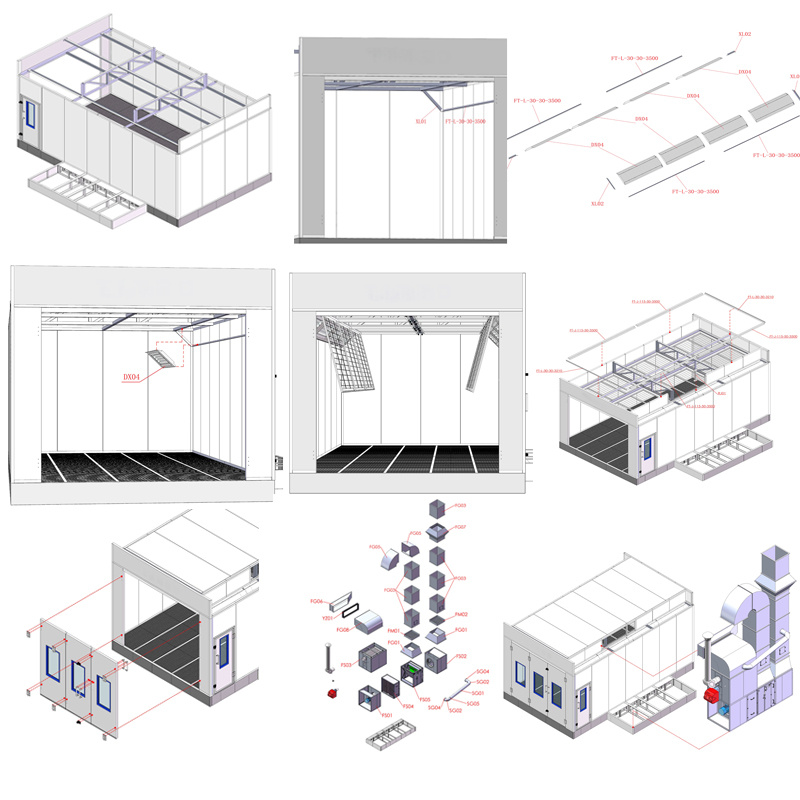

Component pictures

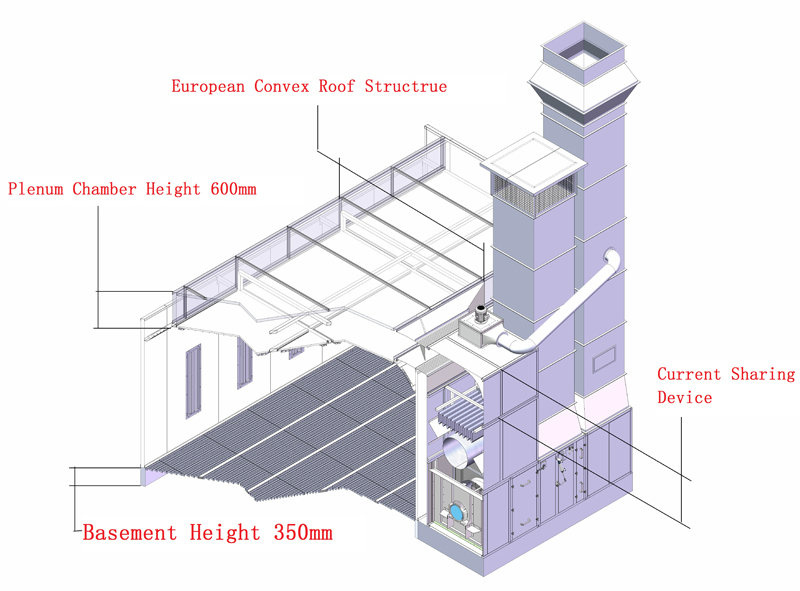

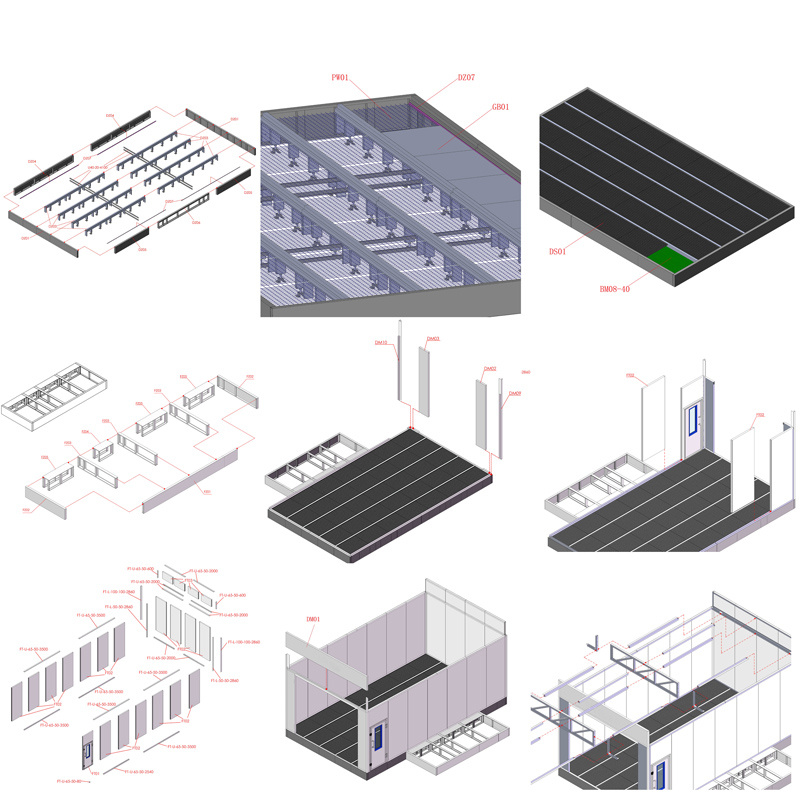

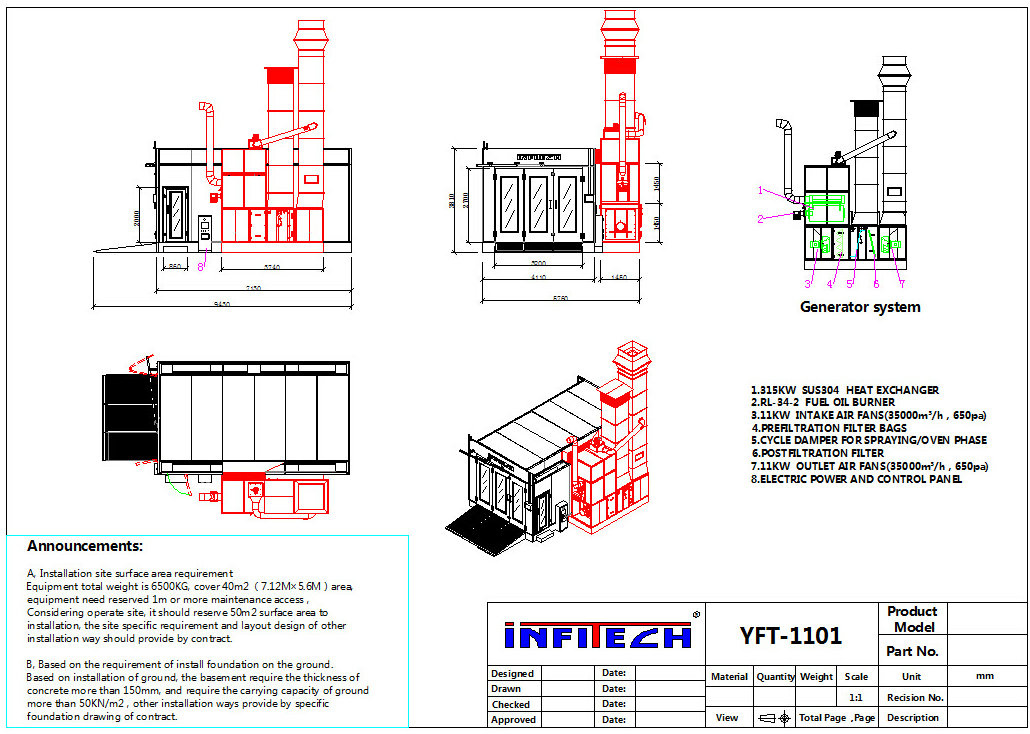

The spray paint booth we designed has the most stable structure to ensure smooth airflow. The secret of balanced and stable flow lies in the 600mm heightplenum, wide space allows static pressure smaller, and the air cover the entire top.Rapidly through the heat exchanger and after finishing, the airflow provided important assistance to balance and stable air distribution in the plenum.The balanced airflow formed around the vehicle to is completed by a 350mm height . We have designed the reasonable and effective diversion for the base to achieve the balanced airflow from side to side.Installation profile

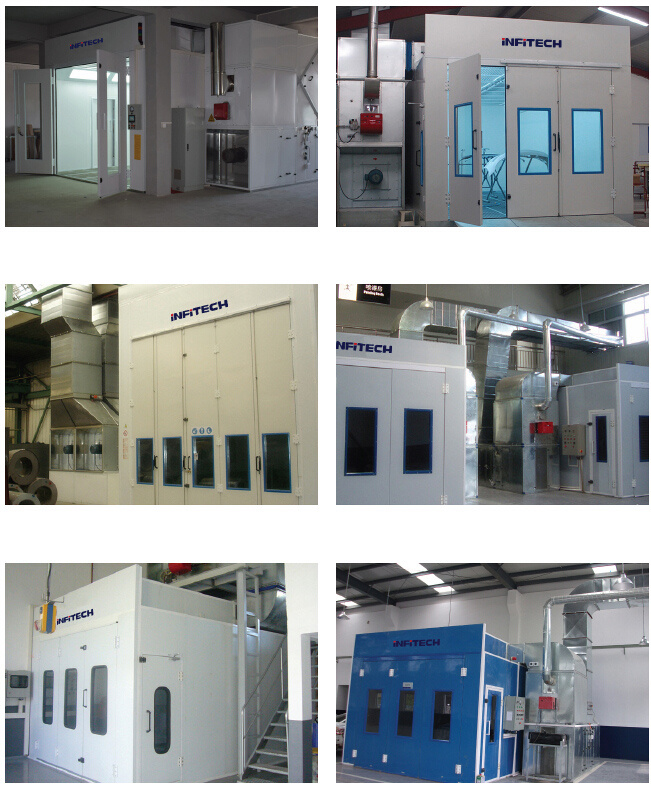

Sussessful Story
Service commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and testing files.
2. Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then to package and delivery.
Product price commitment:
1. Use famous brand raw material to ensure high reliability and advancement of product.
2. Under the equal race condition, our company sincerely provides the most favorable price and won't be at the cost of reducing product performance and changing product components.
Are buying
Delivery time commitment:
Product delivery time: comply with customer's requirement. If the goods need to be finished in advance, we will arrange production and erection to satisfy the customers.
After purchase
After purchase service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: service quality to win customer satisfaction.
3. Service principle: the warranty is 12 months, the supplier freely replaces damaged parts caused by quality reason within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment damages caused by human factors, the supplier repairs or provides spare parts at cost. Our service people shall provide technical support in 24 hours as long as receive your inform.
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
