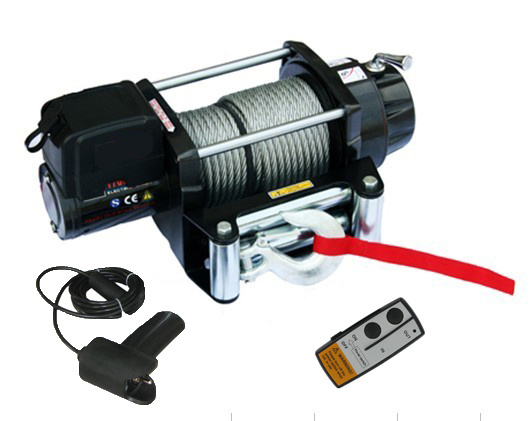

Heavy Duty Powerful Pulling 17500 Lb Electric Winch with Waterproof

Name: Heavy Duty Powerful Pulling 17500 Lb Electric Winch with Waterproof
Brand: ibuyautoparts.com
SKU: 839048475
Availability: InStock
Rating: 4.9 (88 reviews)

Price:	US $ 227-232PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

17,500 LBS Features and Specifications :
Part Number : XM-XU610
Performance:         12 or 24 VDC
Single line rated pull: 17,500lbs ( 7929kg)
Motor:              7.8hp/5.9 kw series -wound
Braking action:       Automatic locking with motor
Clutch:              Sliding ring gear
Gear train :           all- metal gears for 3 -stage planetary
Gear ratio:            330: 1
Remote Switch: 12ft ,wired remote control with black handbar ,
wireless remote control included
Battery:         Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead: 4-way roller fairlead
Steel cable:            88 ft, 13mm in diameter (Ф13 x 27 m )
Weight:              131pound (60kg )
Overall dimension: 25.2" x 8.5" x 11" (640mm x 215mm x 279mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	8000	12000	14000	16000	18000
Line Pull	kg	LOAD	1812	3624	5436	6342	7248	8155
Line speed	ft/ min	19.80	10.70	9.3	7.8	6.3	5.0	3.8
Line speed	m/ min	6.5	3.5	3.1	2.57	2.08	1.65	1.25
Motor current	Amps	85	172	207	358	469	505	538

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	17500	13825	11316	9923
Rated line pull per layer	kg	7928	4497	3737	3191
Length of cable on drum	ft	13.28	33.87	55.20	69.15
Length of cable on drum	m	4.38	11.18	18.20	22.82

Prod Model:	XM-XU610
Weight:	61 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	17500lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.
