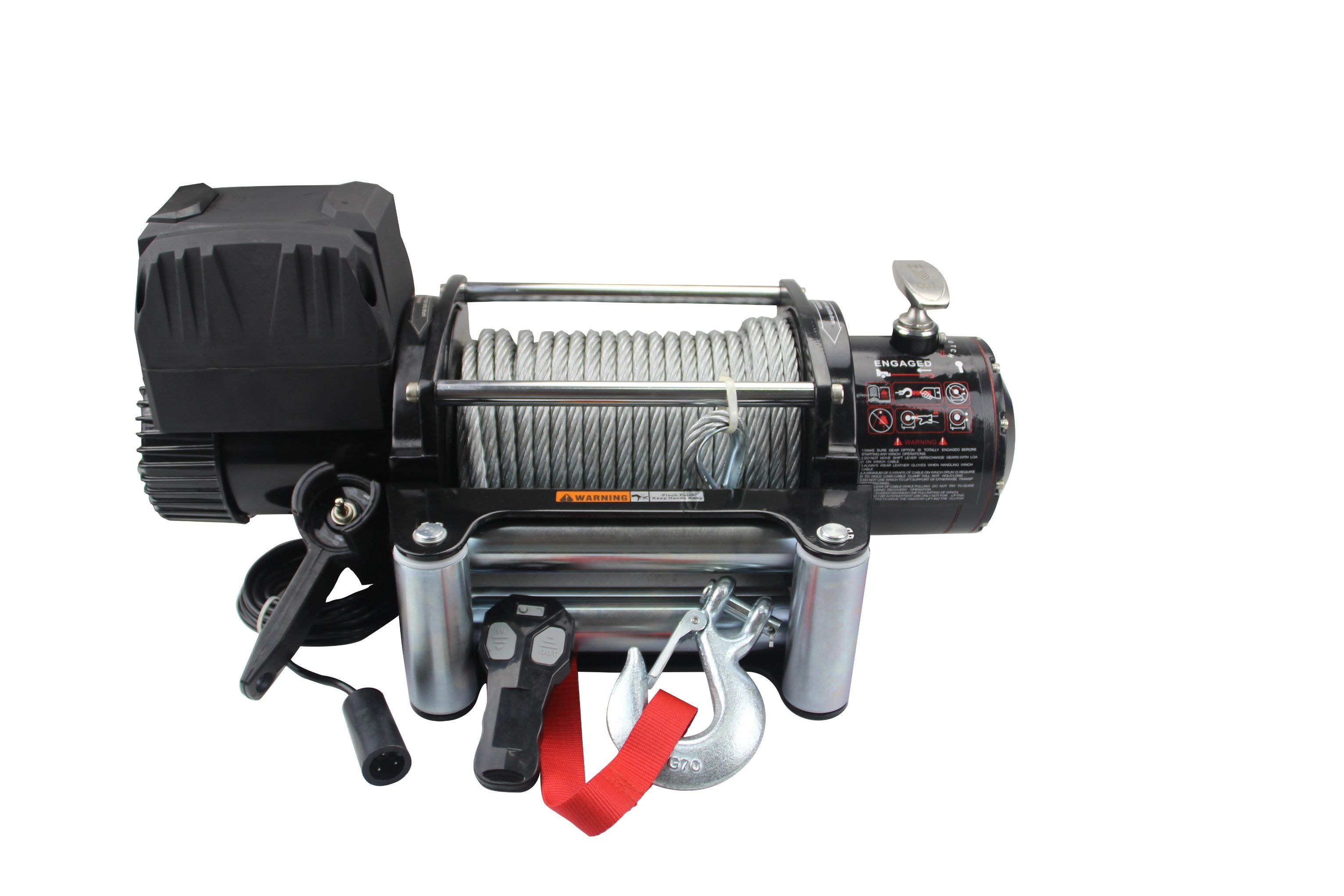

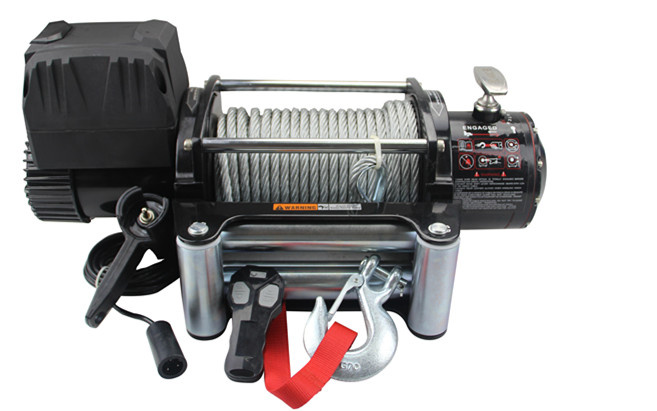

Heavy Duty 4X4 Truck Winch with 15000 Lb Pulling Waterproof

Name: Heavy Duty 4X4 Truck Winch with 15000 Lb Pulling Waterproof
Brand: ibuyautoparts.com
SKU: 839044835
Availability: InStock
Rating: 4.8 (74 reviews)

Price:	US $ 189-205PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

This is HEAVY WEIGHT winch for 4x4 off road riders . Fast speed ,high torque ,big horsepower sealed series wound motor . Bigger two supporting aluminum brackets with waterproof o-rings . . Big T-shape clutch bar can be laser etched logo and make clutch "IN" or " OUT " easily .All steel gears to increase the strength and durable of them and run smoothly and quietly .

Synthetic rope for this winch model is acceptable !

OEM is available !

15,000 LBS Features and Specifications :

PN : XM-XU609

Performance:           12 or 24 VDC
Single line rated pull: 15000lbs ( 6795kg)
Motor:                      7.2hp/6.0 kw series -wound , fast speed
Braking action:          Automatic locking with motor
Clutch:                     Rotating ring gear ,stainless T-clutch handle
Gear train :               3 -stage planetary ,all metal ,smooth weld planetary plate
Gear ratio: 265: 1
Remote Switch: 12ft ,wire remote control with black handbar ,
wireless remote control included
Battery: Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead: 4-way roller fairlead (Forged hawse optional)
Drum: 3.5"/8.8"(89mm x 224mm)
Steel cable: 11 x 85" (Ф11 x 24.5 m )
Weight: 105 pound (54kg )
Overall dimension: 22.9" x 6.7" x 7.2" (582mm x 170mm x 182mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)

Winch gloves ,winch cover , snatch block ,tow hook , ...ect .

Prod Model:	XM-XU609
Weight:	54 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	15000lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
