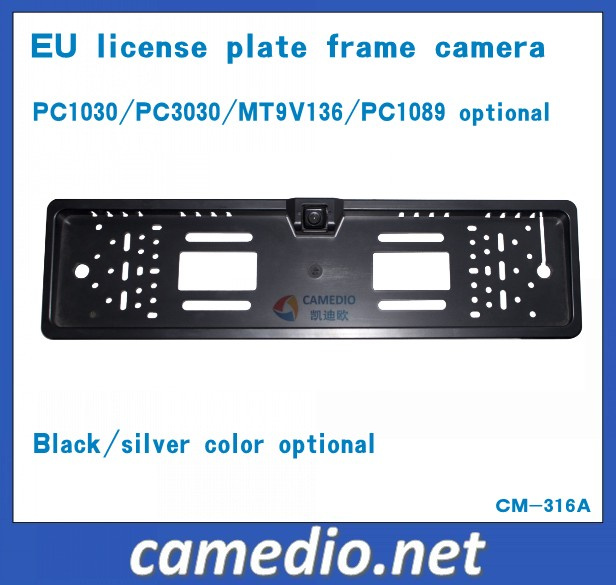

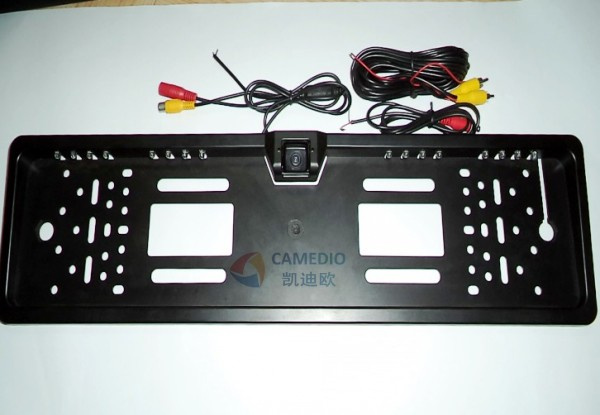

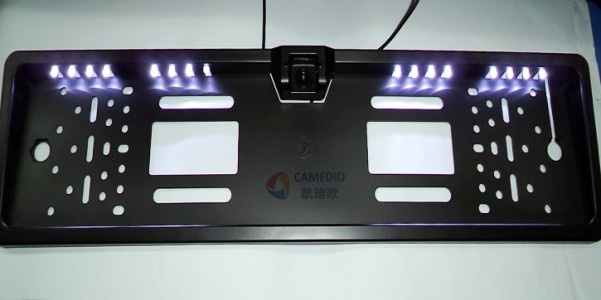

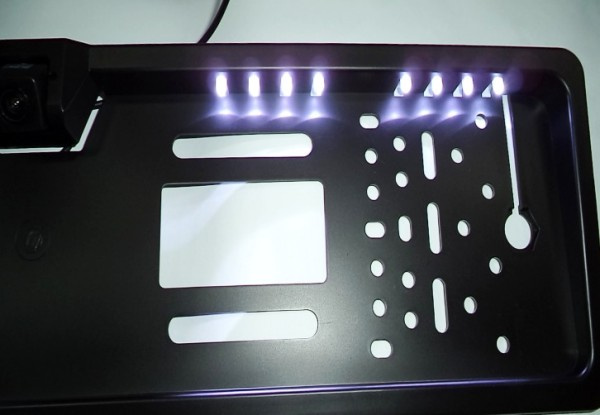

1)License plate frame car camera for European cars
2)EU license plate rear view camera ,
3) Size:55*14*3cm ,
4)black and silver optional,
5)different kinds of image sensors optional PC1030/PC3030/MT9V136/PC1089 CCD
6)Wired& wireless optional
7) higt quality ,factory good price
Key features:
1. Easy installation and assembly
2.High-resolution , high sensitivity and high signal to noise ratio
3.Super low-light, high-quality imaga capabiities .
4.DSP digital chip , image clarity without distortion ,
5.Shockproof , waterproof , anti-interference and resistance to high/low temperature
Specfication:
Europe license plate car backup camera
* Primary Function: Waterproof License Plate Camera
* Image Sensor: 1/4" Color CMOS/CCD
* Waterproof: YES, IP68
* TV System: PAL/NTSC
* Minimum Illumination: 0.1LUX
* Lens: f=1.8mm / F = 2.0
* Pixels: 628x582
* Resolution: 480TVL
* Viewing Angle: Wide Angle 170 Degrees
* Connection: RCA
* Operating Temperature: -20 ~ +70
* Power Supply: DC12V
* Dimension Plate: 545 x 140 x 23mm (L x W x D)
Length of AV Cable: ~6M
Packing information:
20pcs/carton
Carton size: 58*31*50cm
G.W : 12.6KG/carton
Specifications for different image devices
| A. PC1030 (parking guide line) |
| Image device: PC1030 | Resolution: 420 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC - 70ºC,RH 95% MAX |
| Effective pixels: 648×488 pixels | Gamma consumption: 0.45 | Storage temperature: -40 - 85,RH 95% MAX |
| Electronic Shutter : 1/60-1/5000 | White balance: auto | Waterproof: IP67/68 |
| |
| B. MT9V136 (parking guide line) |
| Image device: MT9V136 | Resolution: 480 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC-70ºC,RH 95% MAX |
| Effective pixels: 720x576/480 pixels | Gamma consumption: 0.45 | Storage temperature: -40ºC-85ºC,RH 95% MAX |
| Electronic Shutter: 1-1/10000 | White balance: auto | Waterproof: IP67/68 |
| |
| C. PC1089 (parking guide line) |
| Image device: PC1089 | Resolution: 520 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Dark Signal: 46.7 mV/sec @60ºC | Operation temperature: -40ºC-70ºC,RH 95% MAX |
| Effective pixels: 765×652 pixels | Sensitivity: 9.67 V/Lux.sec | DynamicRange: 63.7 dB |
| Scanning system: 2:1 interlace | Waterproof: IP 67/68 | SNR: 46.4 dB |
| |
| D. Color Sony CCD |
| Image device: 1/3 "Sony CCD | Resolution: 480 TV lines | Power supply: DC 12V |
| TV System: PAL/NTSC | Sensing Area: 4.9X3.7 mm | Horizontal Sync.Frequency: 15.625/15.734 KHz |
| Video Output: 1Vp-p,75Ohm | S/N ratio : Better than 48dB | Pin lens: F=1.9mm/F=2.0 mm |
| Waterproof: Ip67/68 | Operating Temperature( o C): -20~+75(RH95% Max.) | Angle of view: 170 ° |
Shenzhen Camedio Technology Co., Ltd. Is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.
Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.
We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.
"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.
Welcome for your valuable inquiry and visiting our company at any time!
