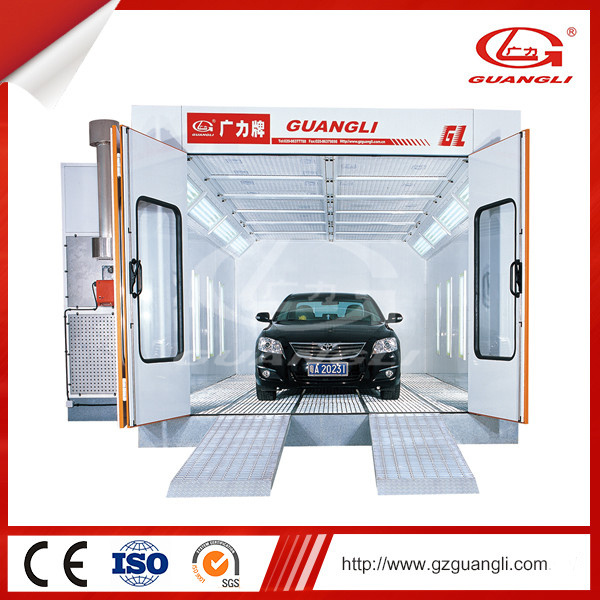

Guangli Manufacturer Hot Sale Ce Approved Car Spray Painting Room Equipment
| Price: |
US $ 2000-25780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |

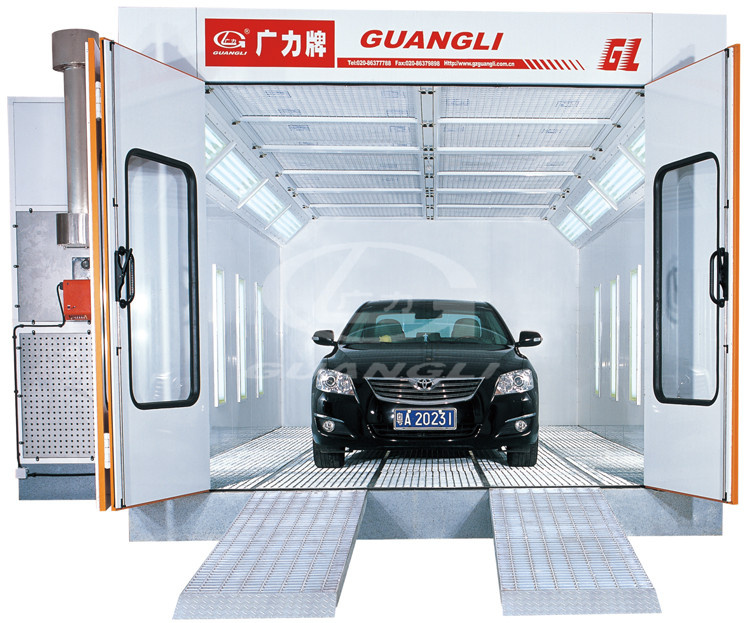

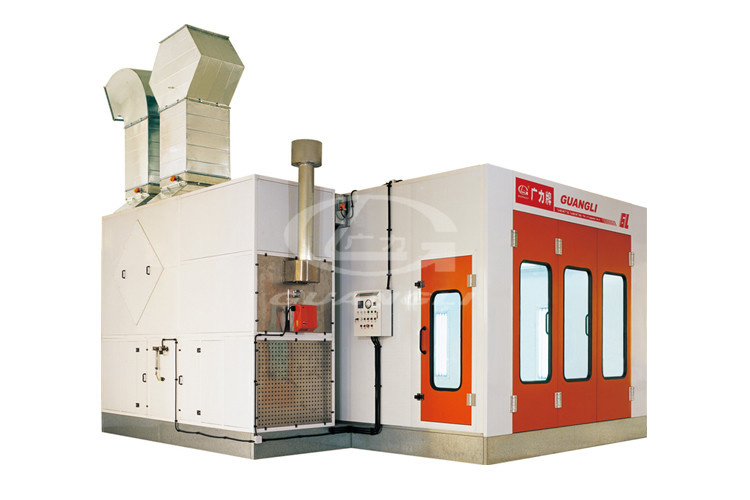

Guangli Hot Sale CE Approved Car Spray Painting Room Equipment
Feature Description
--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement :steel strucutre,full grids.
--Ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Electrical VCD. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Fire protection equipment:1set,the inductor controll closed;energy-saving equipment:1 set.
--Heat exchanger:stainless steel.Riello /RG5S burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking, phase-locking protection,Motor soft start.
--Automatically stop when preset time is up.
--Constant temperature spraying.| Model | GL4000-A2 |
| External size (m) (LxWxH) | 7.0x5.6x3.5 |
| Internal size (m) (LxWxH) | 6.9x3.9x2.7 |
| Entrance width(m) | 3.0 |
| Entrance height(m) | 2.66 |
| Fan capacity( m 3 /h ) | 30000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature(ºC) | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Exhaust type | Full-undershot,Bilateral,Semi-down,Unilateral etc |
| Color | Orange,Blue,Red,White,or Client's Requirements |
| Water-based paint device | As option |
| Power (kw) | 25 |
| Suitable Automobile Type | Saloon Car |
Guangli Spray Booth Show

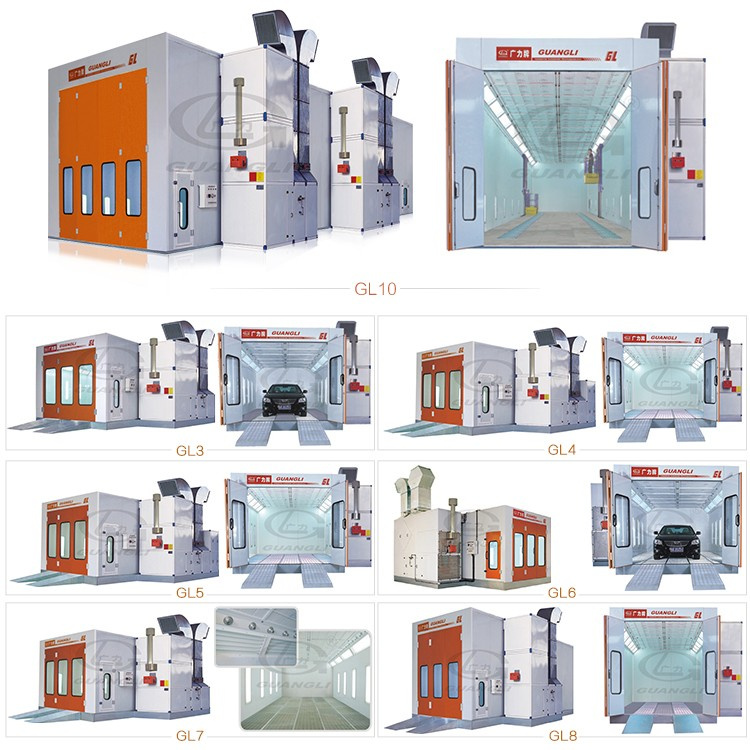

Spray Booth Series

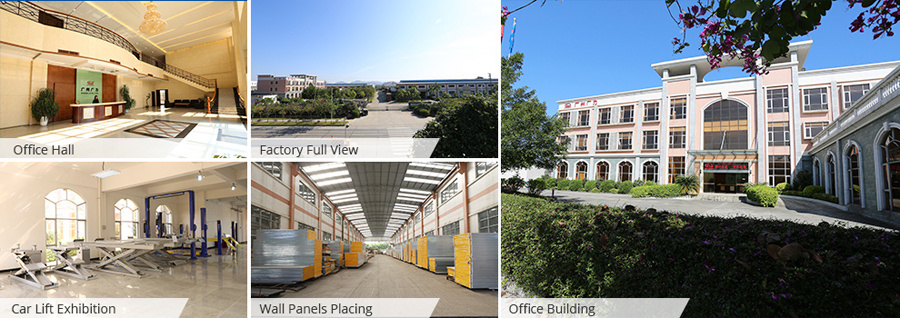

Why Choose Us1.More than 20-year experience in Spray booth and car lift field. 2.Superb unique technology and Automatic production line.3.Large order can be placed.4.Advanced equipment and exquisite workmanship.5.Durable and reliable.6.Excellent pre-sales and after-sales service.Factory ShowGZ GUANGLI EFE CO.,LTD (Short for Guangzhou Guangli Electromechanical Facilities Engineering
Co., Ltd )is a professional spray booth and car lift manufacturer and the member of China
Automobile Maintenance Equipment Association.
Founded in 1994, GUANGLI has our own enterprise headquarters and production base, which covers
58,000M2 of grounding area and 36,000M2 of building area. Now the largest one
in South China in this field, having a good reputation among Chinese auto-maintenance enterprise.
Our main products contain spray/baking booths, auto car lifts, prep rooms,painting mixing rooms,auto powder coating lines etc. Our products have CE certificates and our company has passed
ISO9001.

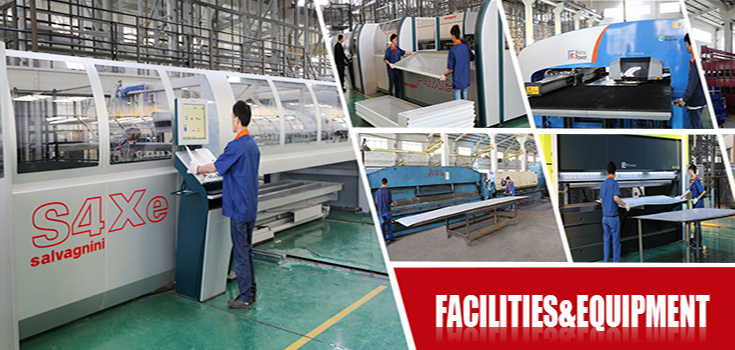

EquipmentWe have the most advanced sheet metal production line imported from Europe and have
achieved the world-class production level among this industrial.

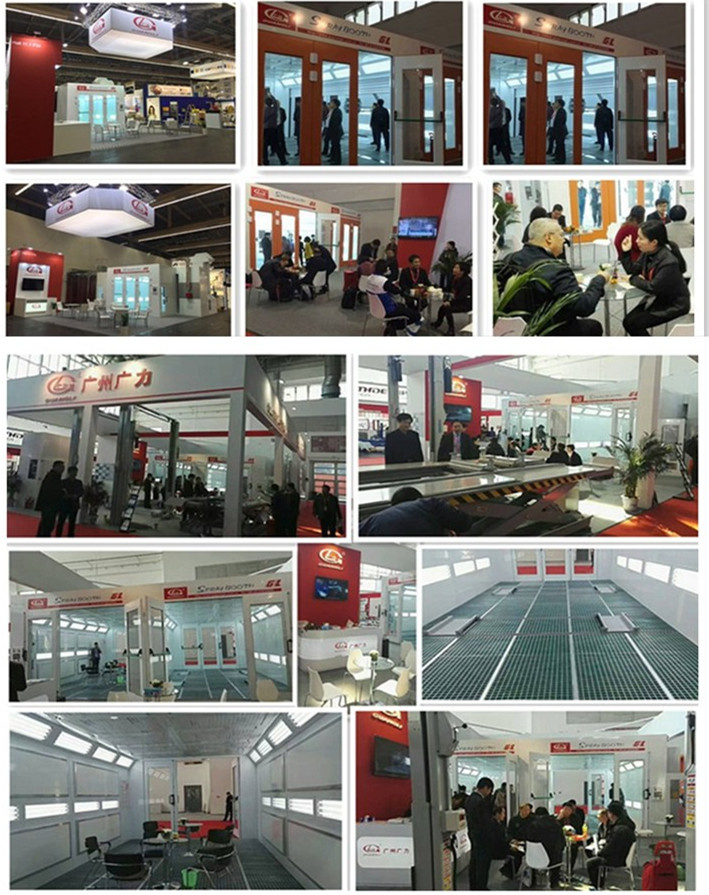

Exhibitions
Contact Information
Sunnie Di
Tel:86-20-86378972
Mobile:+8613925061383
Website:www.gzguangli.com
| Prod Model: |
GL4000-A2 |
| Door Width(M): |
3.0 |
| Door Height(M): |
2.66 |
| Air Flow (M3/H): |
30000 |
| Heating System: |
Riello Brand Diesel Burner/Gas Burner |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Vehical Suited: |
Saloon Car |
| Warranty: |
Yes |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
