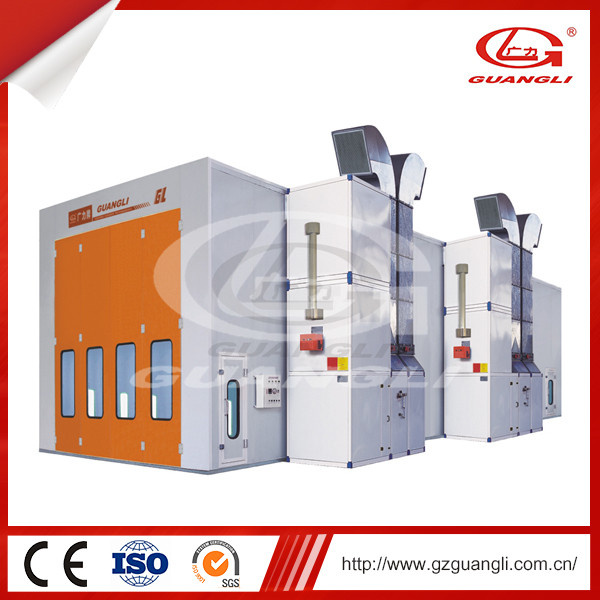

Guangli Factory Thinckness Panels Diesel Burber Car Spraying Painting Cabin for Bus/Truck
| Price: |
US $ 2000-25780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Guangli Factory Thinckness Panels Diesel Burber Car Painting Cabin for Bus/Truck
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=75mm, rock wool available as required.
--Basement: concrete structure made by customers, 2 rows of grids, 3d lifts as optional.
--Door: 4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
--Two 11kw intake fans and two 11kw exhaust fans.
--2 pcs of floor filter and 2 pcs of air mouth filter.

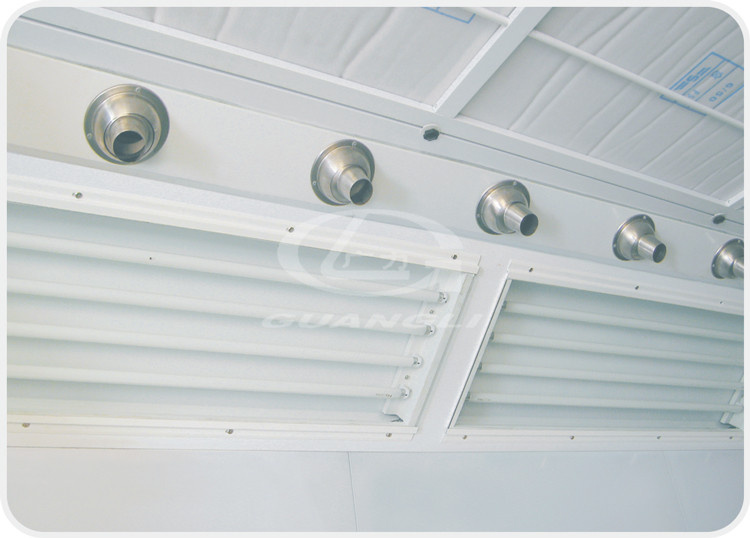

--Upper light: 20 sets, 4*40w per set. side lights: 16sets, 4*40w.
--Two sets of exhaust/intake ducts, 5m straight, one 90° bend, and one 60° bend
each. two sets of chimney, 5m straight and 2 small bends.
--2sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. 2units of RIELLO RG5S burners.
--Roof filter: 16 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--Control box: imported components, overload, overheat, phase-lacking,
phase-locking protection, engine Y star-delta start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter :either M style or drawer style active carbon equipment can be adopted.
| Technical Specifications | GL3000-C1 |
| External size(m) | 15.2×6.7×5.0 |
| Internal size(m) | 15.0×5.0×4.4 |
Door width(m) | 4.0 |
Door height(m) | 4.0 |
| Air flow (m3/h) | 72000 |
| Inside no-load air speed(m/s) | 0.3-0.5 |
| Power (kw) | 50 |
| Vehicle suited | Truck/Bus |

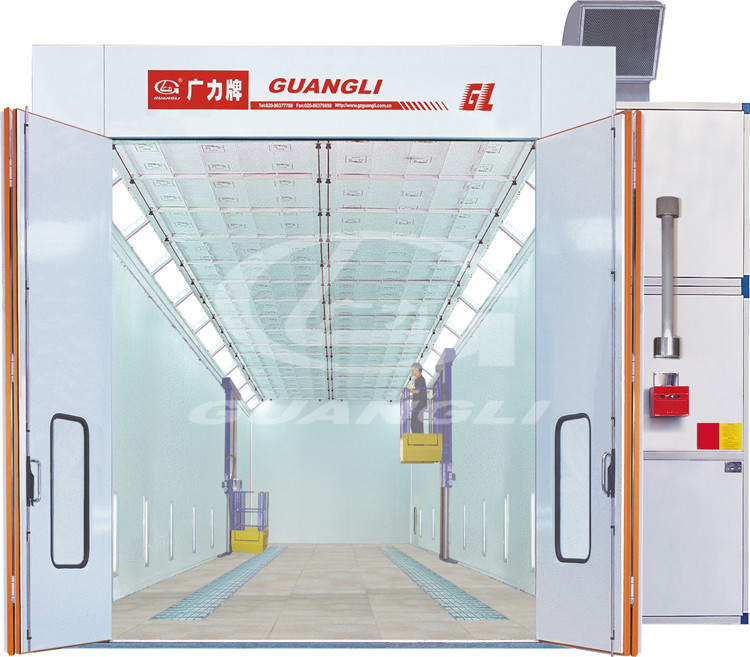

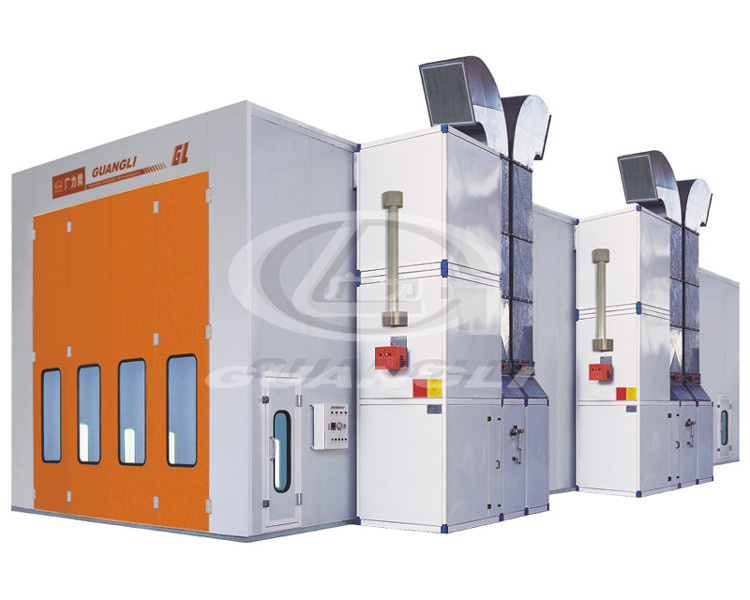

GuangLi Spray booth Show
Note:Water-based Device as option
Why Choose Us1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.

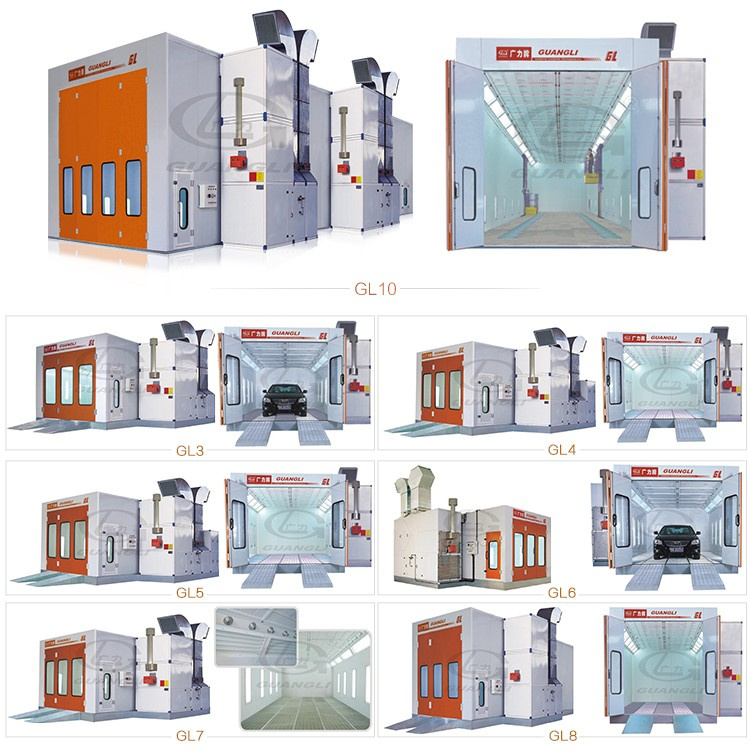

Products Series
Company Profile
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 22 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters, which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, havinga good reputation among Chinese auto-maintenance enterprise.The sales volume of spray booth ranks top in this field over years.
Certificate
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

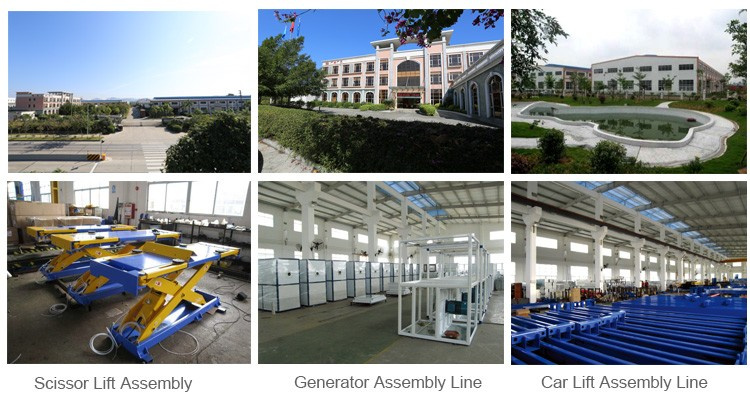

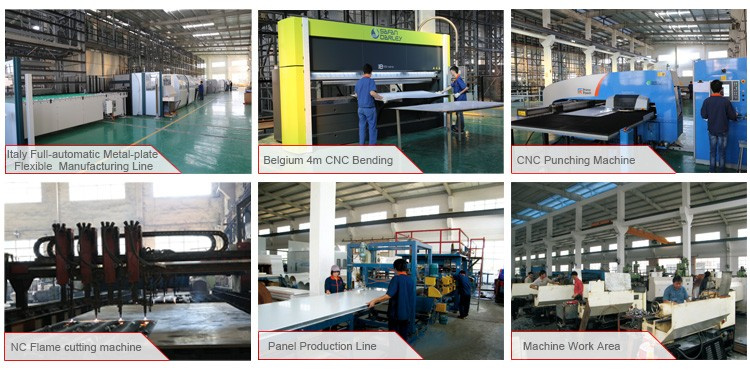

EquipmentWe have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
FAQ
1.Q:Are you a factory or Trading company?
A:We are a factory with export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou all clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A: With the advanced machines, technology and material sources, our products are quite excellent in performance and craftsmanship.
B:Customized material and standard are acceptable. We can offer different standards according your market and favor.
4.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
5.Q:What's the delivery time?
Bulk Order:15-25 working days
Contact Information:
Sunnie Di
Tel:+86-20-86569629
Mobile:+86 13925061383
Website:www.gzguangli.com
| Prod Model: |
GL3000-C1 |
| Door Width(M): |
4.0 |
| Door Height(M): |
4.0 |
| Air Flow (M3/H): |
72000 |
| Vehical Suited: |
Truck/Bus |
| Usage: |
Car Painting Baking |
| Color: |
Red White Orange Blue |
| Heating System: |
Riello Brand Rg5s Diesel Burner |
| Filters: |
High Efficiency Filter |
| Lighting System: |
Ceiling Light+Side Light |
| Special Design: |
Customised |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
