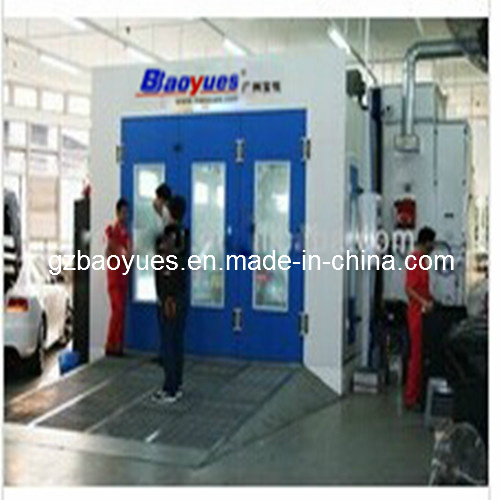

Gold Supplier Tools for Paint Auto Body
| Price: |
US $ 5900-10900set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
non-standard BY-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Purification: |
≥95% |
| Noise Decibels (a): |
≤70 |
| Air Capacity: |
25000m3/H |
| Max Operating Temprature: |
80 |
| Illumination: |
≥1500lux |
| Safety: |
with Pressure Emergency Door |
| Voltage: |
220V/Single Phase,380V/Three Phase,50Hz |
| Free Air Speed: |
0.3m/S |
| Warranty: |
1 Year |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Tools for Paint Auto Body |
| Paint Mist Treatment: |
Filter |
| Brand: |
Baoyue |
Product Description
Clear advantage
1. Good after sale service
2. Professional design team
3. Experienced installing team
4. Abord installation service
5. Life-long technical support service
Product advantage
Car spray paint tools
1. Save energy
2. Low noise, Low pollution
3. Reasonable price
4. Prompt delivery
Company advantage
As a professional manufacturer, we have a wealth of production experience, can be very good control of the production cost and help you to lower your purchase cost
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Item |
Detailed Specification |
|
Inside dimension |
6900× 3900× 2 7 50 mm ( L× W× H ) |
|
Outside dimension |
7000× 5 70 0× 3 5 00 mm ( L× W× H ) |
|
Front door |
F olding door, 3 folds, 3000× 2 7 00 mm (W× H), without any frame, color: white |
|
Emergency door |
1 unit, 800 × 20 00mm (W× H), colour: white. |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, with adjustable bolt, full grilles made by flat bar 30× 4 & 10× 4, hot galvanized, 2 ramps, 750× 2000mm |
|
Wall panel |
Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.426mm colour steel with EPS insulation inside, colour: white. |
|
Light |
Ceiling Lights: 8Units× 4Pcs=32Pcs× 36W, side ligh: 8Units× 4Pcs=32Pcs× 36W, with electronic ballasts. |
|
Generator cabinet |
Intake from side upper, exhaust from back upper, aluminium alloy frame; machine-made panel covered, filled with heat preservation material in the middle. |
|
Intake and Exhaust system |
Inlet: 2× 4KW centrifugal fan, motor outside, belt drive, Model: TAE-400H, air capacity for each fan: 12500m 3 /h |
|
|
Outlet: 1× 7.5KW centrifugal fan, motor outside, belt drive, Model: TAE-560H, air capacity for each fan: 23000m 3 /h, with manual damper |
|
Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 2 0 0000kcal/h, maximum temperature: 80 degree |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter. |
|
Roof |
Galvanized steel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, thermostat, temperature limit controller, failure indicator, power supply switch, emergency stop. |
|
Total power |
18 KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
