Germany Red Dot Award Product Automotive Borescope
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
ME |
Certification: |
RoHS |
Update Method: |
by Internet |
Product Description

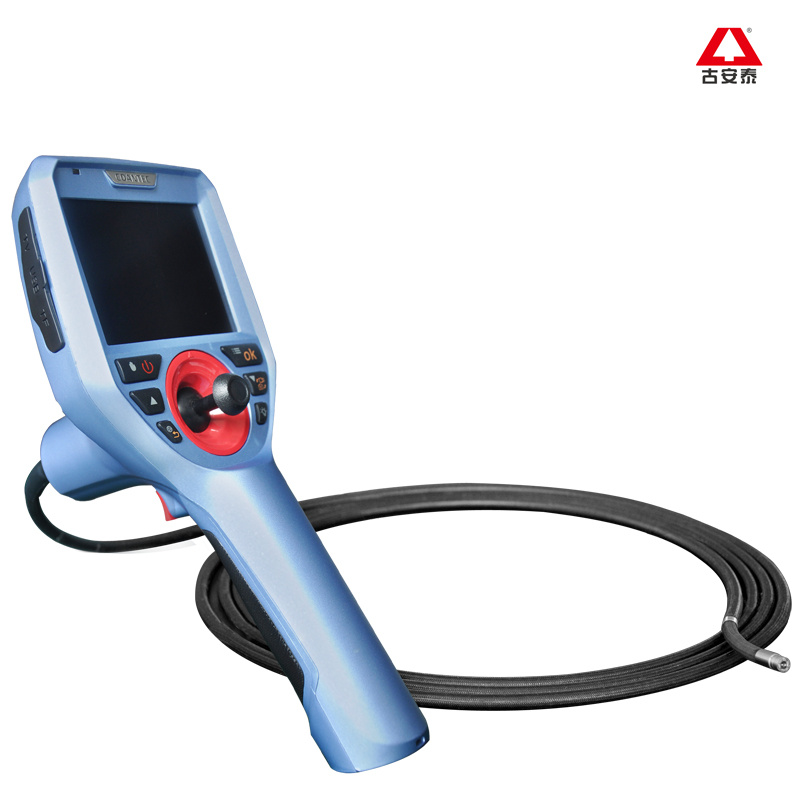

Coantec ME Series Automotive endoscopes----the best endoscope in auto aftermarket!
Germany Red Dot Award: Product Design 2016Product Features:1. Excellent Quality- Wear-resistant titanium alloy probe
Using a new type of titanium alloy probe, the wear resistance is 100 times of ordinary stainless steel.
- Sapphire protective lens: impact-resistant/ fall-resistant/scratch resistant

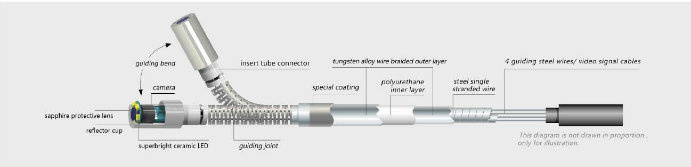

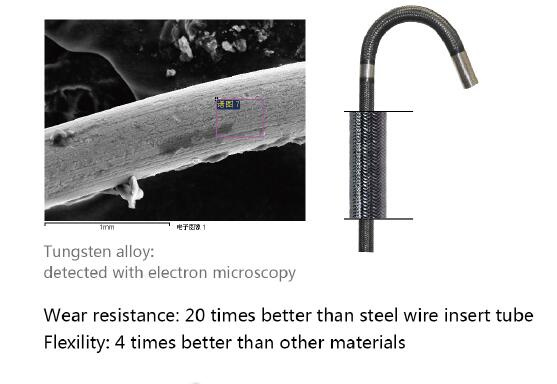

- Double tungsten alloy braided insert tube of 4 layers
- Low power consumption, long working time
3200mAh rechargeable batteries, low power consumption design, saving 30% power. A battery can work for 4.5 hour. It is equipped a backup battery to support long time inspection work, also supports for charging directly with adaptor during working. - Sturdy and durable: cold-resistant/ high-temperature-resistant /water-proof/ fall-resistant
Pass a large number of harsh environmental testing: water-proof and dust-proof test: insert tube:IP67/ monitor: IP55 one meter fall-resistant test 2. Easy Operation- Simple and intuitive guidance menu
Support 8 languages:Chinese, English, Russian, etc. Ergonomic design, easy operation- Fast and accurate target location

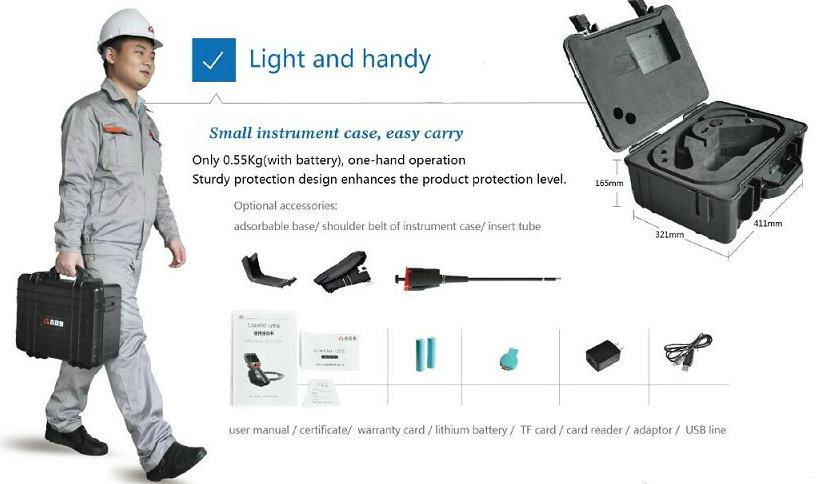

With a unique design of damping elastic rocker, users can fast and easily control the probe direction. After positioning, users can make sharp turning with ocker for more detailed inspections.3. Light and Handy The packaging case is fall-resistant, light and portable. Users can easily carry out and put it into luggage rack in the aircraft, train during the trip. Sturdy protection design enhances the product protection level.

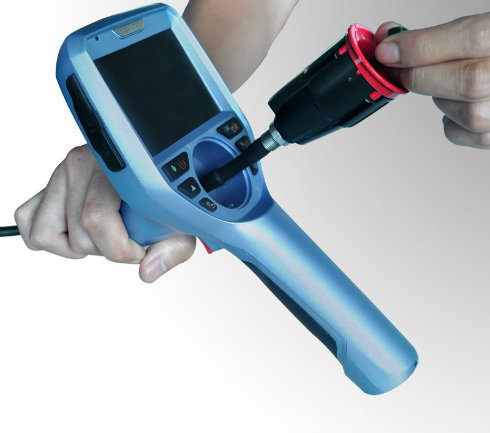

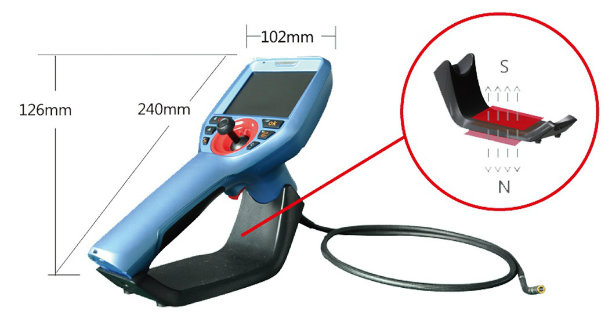

Integration design, one-hand-operation Detachable magnetic base can be adsorbed on the metal surface, makes the operation and inspection easier.4. Super features- Globally unique technology of replaceable insert tube
According to different inspection requirements, users can easily replace the spare insert tube with different length, diameter, depth of field and viewing angle, which can greatly reduce the using cost.
- Super large depth of field and wide viewing angle
The illumination of ME Pro series is 10 times of the ordinary borescope. It is up to 20,000lx at a maximum. 7 levels of brightness adjustment Super large depth of field: 10mm-100mm Viewing angle:100°- Excellent Image processing technology
3.5 inches SONY HD digital screen Static picture:4 times magnification Real-time image:2 times digital magnification With Wider picture processing technology, it can effectively highlights the details, and makes the pictures delicate and realistic. Application ME series are widely used in auto aftermarket, in order to check the cylinder block, valve, piston head, nozzle, ternary catalytic converter, evaporation tank, piping and gap of car body. With visual inspection, the car owners and mechanics can easily know the running state and of the car and troubleshoot.
