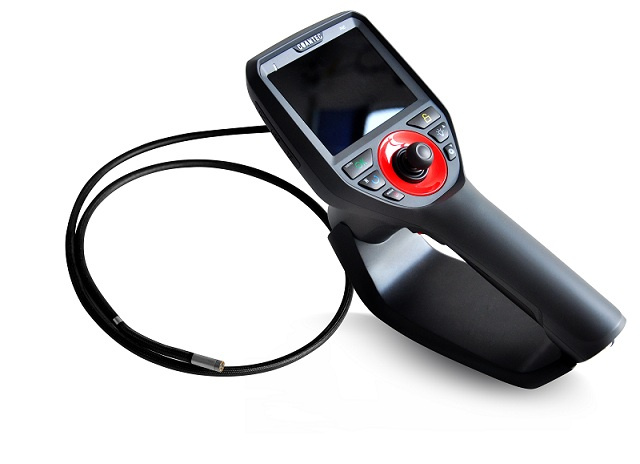

Automotive Borescope
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Description
P40 series borescopes are widely applied in the field of special equipment inspection, electric power, car manufacturing, automotive aftermarket, petrochemical, machinery, aviation, pipeline container checking, security checking, etc.
Features:* Excellent guiding function-----360°all-way bending probe, bending angle≥160°.
* Waterproof Level:insert tube:IP67/ Monitor: IP55.*
Simple and intuitive menu guidance, easy operation.*
With a unique design of damping elastic rocker, users can fast and easily control the probe direction. After positioning, users can make sharp turning with ocker for more detailed inspections.
* Support 8 languages:Chinese, English, Russian, etc.

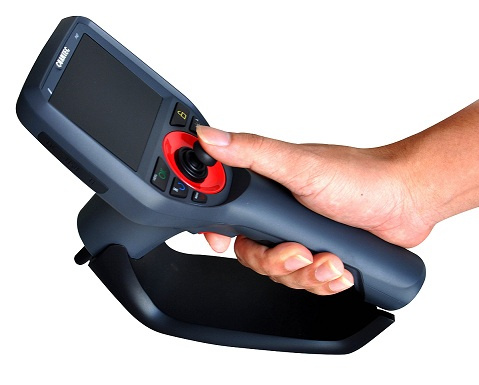

Ergonomic design,only 0.55Kg(with battery), one-hand operation

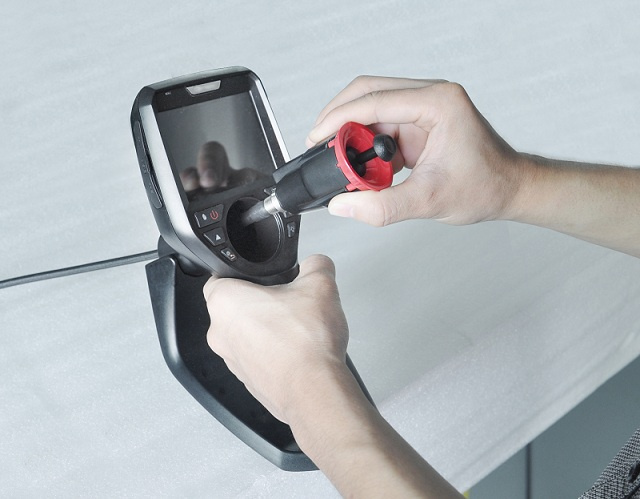

Globally unique replaceable insert tubeAccording to different different inspection requirements, users can easily replace the spare insert tube with different length, diameter, depth of field and viewing angle, which can greatly reduce the using cost.

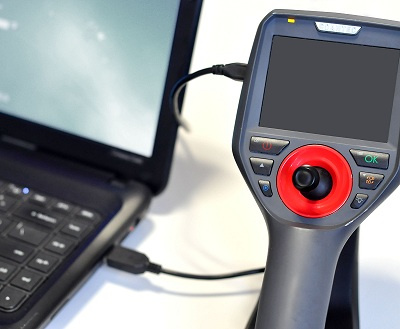

Connect with PC
Parameters| Replaceable Insert Tube | Users can easily replace the spare insert tube. |
| Remote Connection | Connect with computers and remotely view the situation of measured object in real time. |
| Camera Diameter(mm) | Φ6mm |
| Camera Material | Titanium alloy |
| Camera Pixel | 450,000 |
| Depth of Field | 10mm~100mm |
| Angle of Field | 90° |
| Illumination | 20,000lx at a maximum,adjustable |
| Bright/Chroma/Chontrast Ratio Adjustment | Manual:bright:six levels,chroma and chontrast ratio: manual adjusting |
| Bending Control | 360° manual omnidirectional control |
| Bending Angle | ≥150°
|
| Effective Working Length | 1.5m |
| Insert Tube | Quadruple tungsten-braided tubes |
Protecting Device of
Durability | Buffer protection device between the host and wear-resistant tube |
| Display | Highlight 3.5 inchesTFT LCD |
| LCD View Angle | 85° |
| Image Resolution | 720*480 |
| Memory | Standard SD card:8G, Maximum: 32G |
| Data I/O port | Micro-USB port,Video output port |
| Waterproof | Camera/Object glass/Tubes:IP67 |
| Host Working Time | ≥4 hours |
| Weight | ≤0.55kg(with batteries) |
| Power Supply | Rechargeable lithium battery(dismountable) |
| Battery Capacity | 4.2V 2200mAh |
| Power Consumption | 2W |
| Charging Parameters | DC5V, Maximum current:1A |
Standard Configurationinstrument Case, P40 borescope,battery,card reader,8G SD card,adaptor,USB line,users manual,certificate,warranty card. Optional: detachable magnetic base,battery,insert tube,shoulder belt of instrument case
| Prod Model: |
P40-6015 |
| Certification: |
ISO |
| Update Method: |
by Hard Disk |
