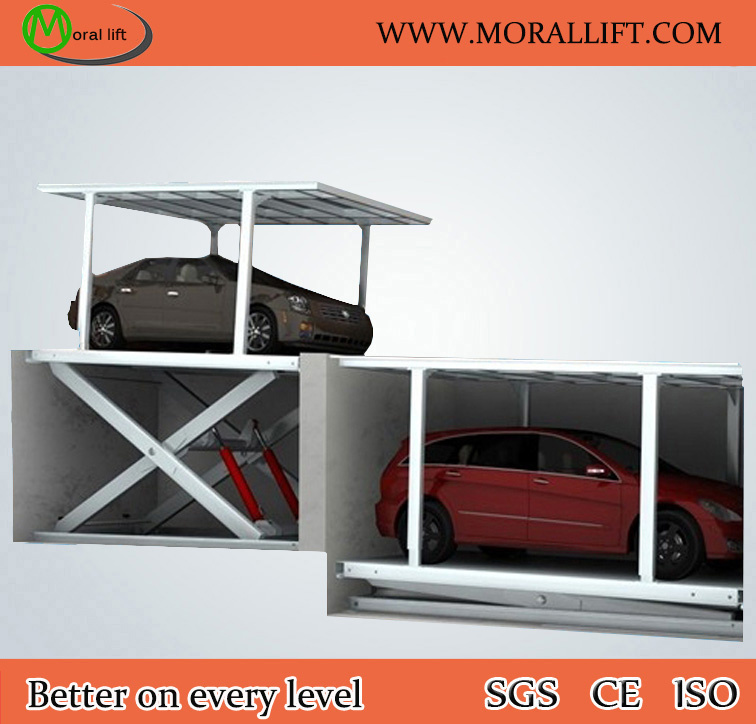

Garage Basement Scissor Car Parking Lift
| Price: |
US $ 3500-8300/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SJG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
3000kg |
| Platform Size: |
5000*2700mm |
| Lifting Height: |
4000mm or Customized |
| Speed: |
6m/Min |
| Power: |
5.5kw |
| Control: |
Button/Remote Control |
| Height: |
650mm |
| Color: |
Grey, Blue, Customized |
| Installation: |
Pit-Installation |
| Warranty: |
12 Months |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
CE |
| Design: |
Scissor |
| Brand: |
Moral |
Product Description
Garage Basement Scissor Car Parking Lift
Main Features:1. Load capacity: 3000kgs
2. Table size: 5m*2.7m
3. Travel height: 4m
4. Structure: High-strength Mn steel structure
5. System: Hydraulic systemMain Descriptions:1.This scissor hydraulic car lift can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2.The limit switch system helps the lift to stop at accurate position.
3.All the lifts are passed 1.2 times loading test before leaving factory.
9. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of goods.
4.Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5.Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6.Maintenance window is made in the middle of work platform, it is for your convenience to maintain the lift in future.
7.There are 2 sets control system are installed on the lift, 1 control box below, and 1 control panel on handrail that can be operated on work platform.
8.Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
9.Delivery time: 25 days.
10.Customers from Netherlands, Greece, Uruguay, Brazil, Estonia, Croatia, and Switzerland have already established agreeable business relationship with us, and highly appreciated our professional service.
Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.Advantages:Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.Applications:It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck;
It is installed in the pit or the ground floor to convey the goods from one working level to another.The control panels are available at the designated floors and one the lift platforms.Parameters: | Model | SJG3-4 |
| Lifting capacity | 3000kg |
| Lifting height | 4000mm |
| Platform size |
5000 X 2700 mms.
( Diamond steel sheet metal ) |
Motor power | 5.5kw |
| Power supply | AC 220V/380V 50HZ/60HZ |
| Speed | 100mm/s |
| Weight | 1850KG |

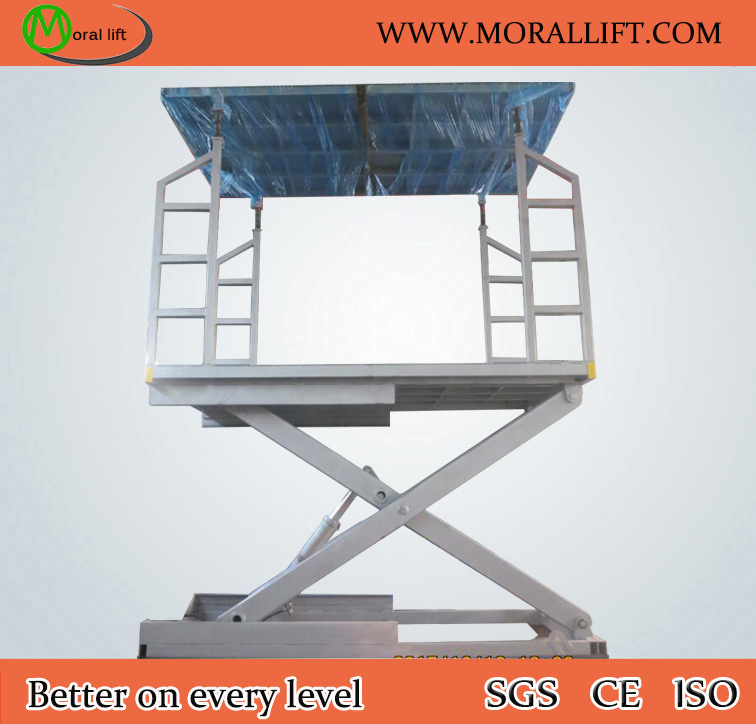

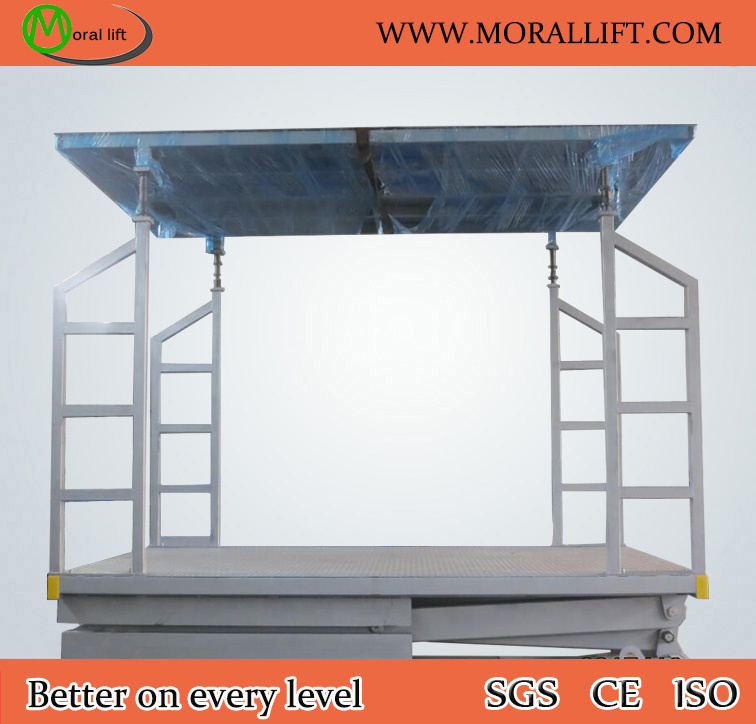

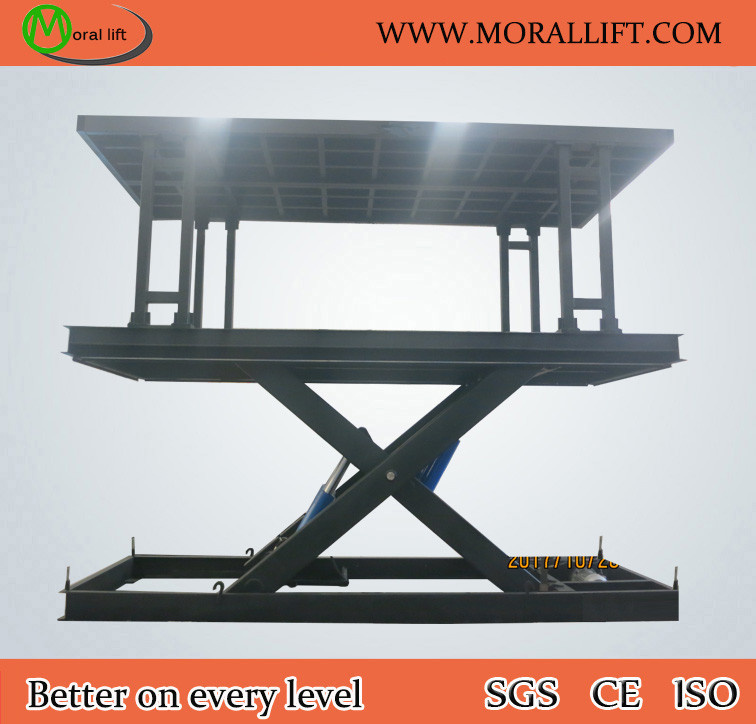

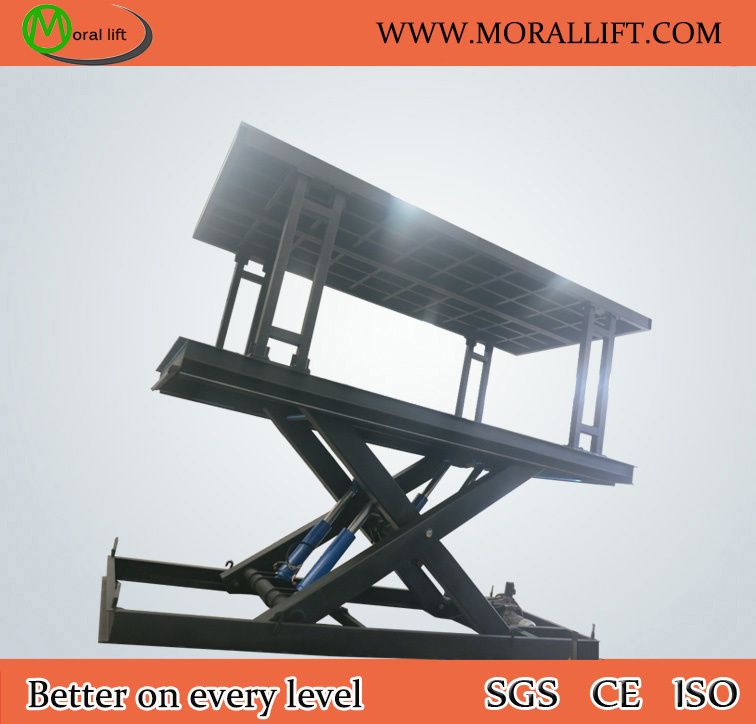

Pictures:
