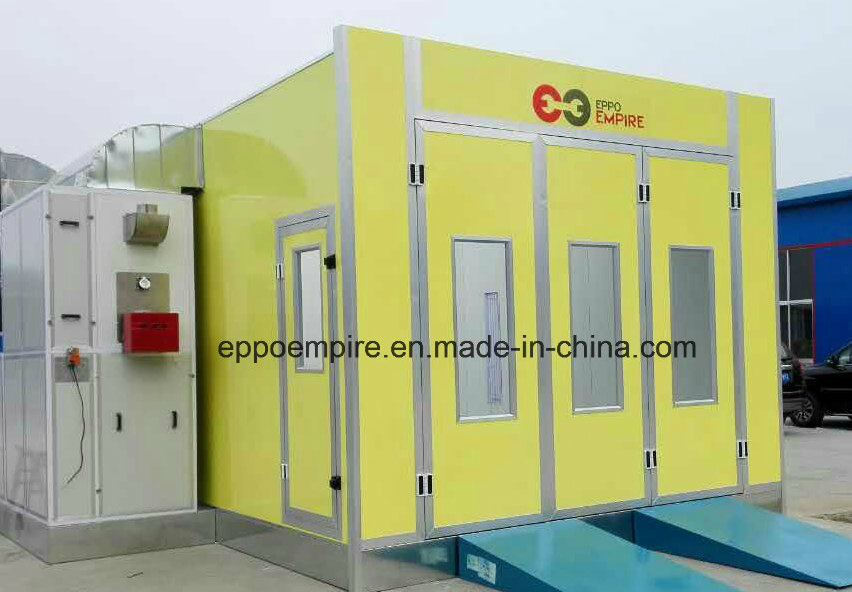

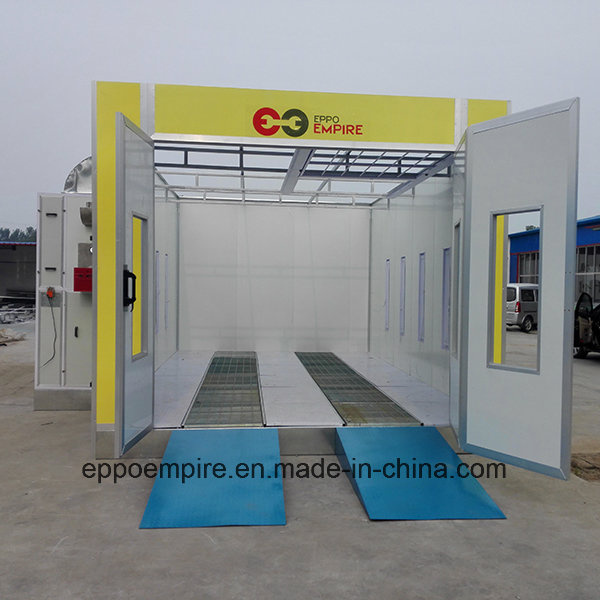

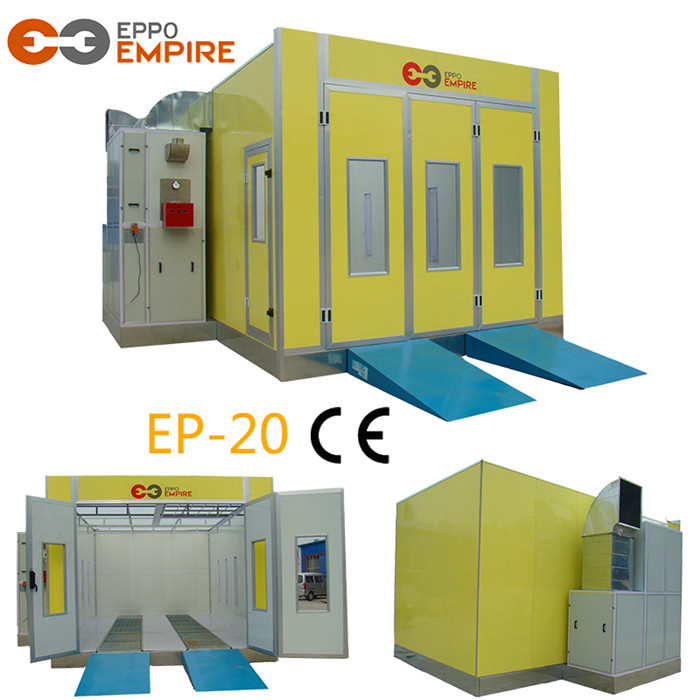

australian standard auto car spray paint booth
Product DescriptionDimensions: | Length (mm) | Width (mm) | Height (mm) |
Booth Outside | 7,050 | 5,250 | 3,600 |
Booth Inside | 6,900 | 3,900 | 2,750 |
Entrance Door | Equipped with Handle & Lock | 3,000 | 2,700 |

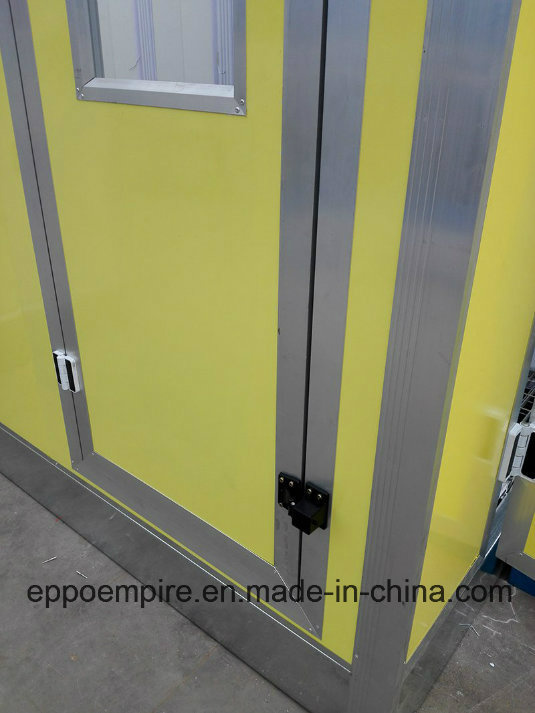

Personnel Door | Equipped with Handle & Anti-Explosion Lock | 800 | 2,000 |
Features: | Total Power 14.5 KW; 380v/3phase/50hz | Noise < 80 db |

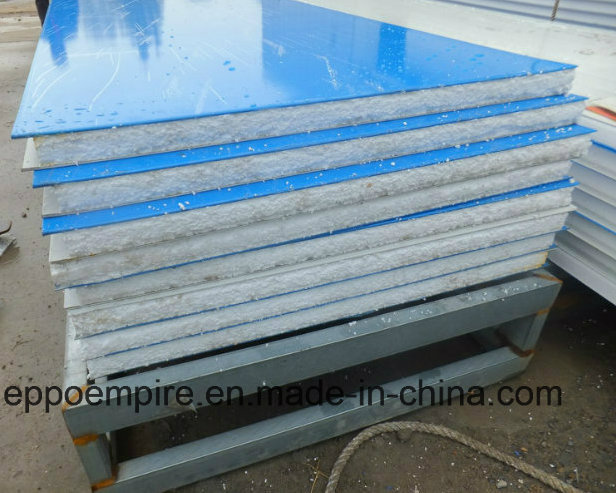

1. Walls & Ceiling | - Panels 75 mm thick, with foam in the middle and color steel on both sides |

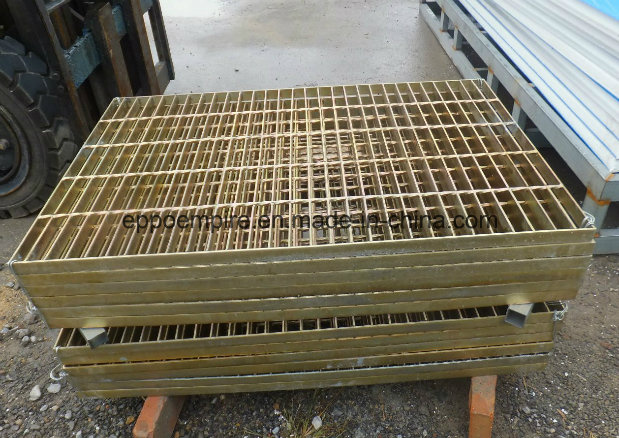

2. Basement System | - Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple - Grid Plates (Galvanized)* 2rows - Diamond Plates (Powder Coated or Galvanized)* 3rows |
3. Heating System | - Diesel Burner (Italy RIELLO, G20)* 1unit - Heating Exchanger (Stainless Steel material)* 1unit - 5~10 minutes reaching the baking temperature 60~80 degree Celsius - Cabinet (rock-wool insulation) * 1unit; Air Ducts * 2pcs |
4. Filter System | - Primary Filter* 1set, filtering rate > 83% - Air-Intake Filter* 1set, filtering rate > 97% - Air-Exhaust Filter* 1set, filtering rate > 70% |
5. Air System | - Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each - Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor - Air velocity 0.30 m/s - Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (pneumatic)* 1unit |
6. Illumination | - Ceiling Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design - Side Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design |
7. Control Panel | - *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc. |
** Included | - All Hardware, Fasteners, and Sealants |
certification
Our Services 1. OEM ODM service.
2. Customized service.
3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.
4.Professional team supply service for life long time.
Company Information
YANTAI EMPIRE INDUSTRY&TRADE CO.,LTD is a company making efforts to supply quality garage equipments including Frame Machine, Booth, Heater and Burner, lift, Tire Changer, Wheel Balancer,Wheel Aligner, Decoder, Key Programmer, Oil Drainer, Tools Cabinet,Air Compressor, Jack & Stand, Crane, Pressing Machine etc. Also we could supply parts and accessories for auto repairing shops, such as hydraulic cylinder for lifts, turning plate for wheel aligner, weights for wheel balancer etc.
Our products have been selling to worldwide countries as Canada, U.S, Colombia, U.K, Ireland, Sweden, Poland, Finland, Hungary, Norway, The Netherlands, Deutschland, Denmark,Bolivia, Latvia, Slovenia, UAE, Saudi Arab, Malaysia, Mongolia ,South Africa ec.
From various customers we learnt various experiences in manufacturing applications, and businesses.We have been improved much of the products and are always will to continuously improve.
www.euroempire.com
EUROEMPIRE, founded in 1995, has been manufacturing and selling auto frame machines/auto frame racks to more than 90 different countries. In the past eight years, with the appreciation and support from domestic and foreign clients, our corporation has grown to one of the largest frame machine manufacturers in our country. We offer a wide selection of collision repair equipment, with the fastest order to delivery time in the world, at value prices. Our experienced sales representatives are available to answer your questions, provide a prompt written quote, and/or assist in designing your quality frame machine.
Our large workshop enables the whole production line of auto body collision repair system. Sitting near the most beautiful seaside city, the workshop keeps waiting for your coming!
Parts of processing equipment. The middle machine is CNC(Computer Numberic Control) cutting machine. For some extent, equipments represents the producing ability of a manufacture. I'm glad we have all needed equipment to produce car body pulling bench.
