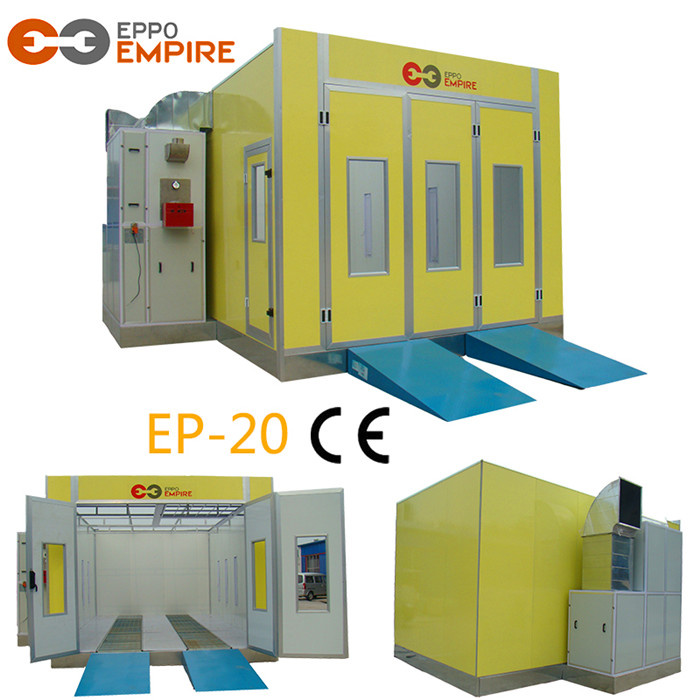

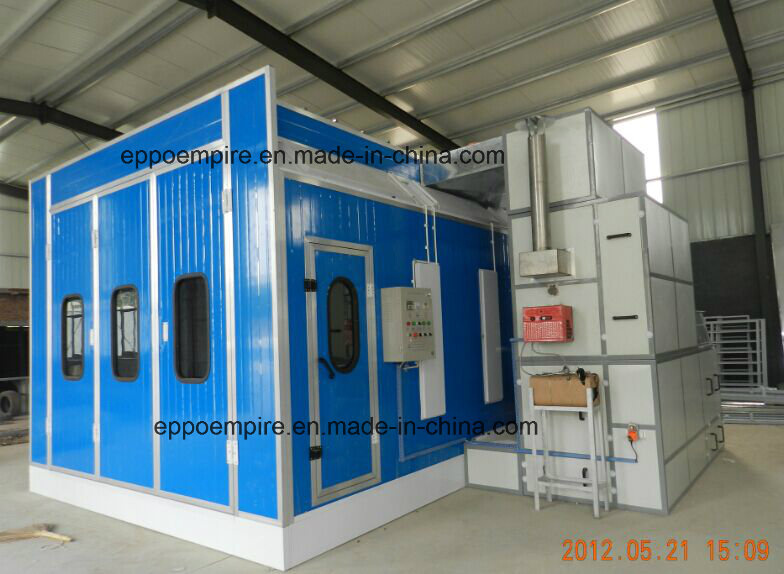

Product details:Product name: Car paint booth , baking booth
Model:EP-200
Specification: | Dimensions | Length | Width (mm) | Height (mm) |
| Booth Outside | 7050mm/277.6" | 5250mm/206.6" | 3600mm/141.7" |
| Booth Inside | 6900mm/271.6" | 3900mm/153.5" | 2750mm/108.3" |
| Entrance Door | Equipped with Handle & Lock | 3000mm/118.1" | 2700mm/106.3" |
| Personnel Door | Equipped with Handle & Anti-Explosion Lock | 800mm/31.5" | 2000mm/78.7" |
| Item | Total Power 16 KW; 380v/3phase/50hz | Noise < 80 db |

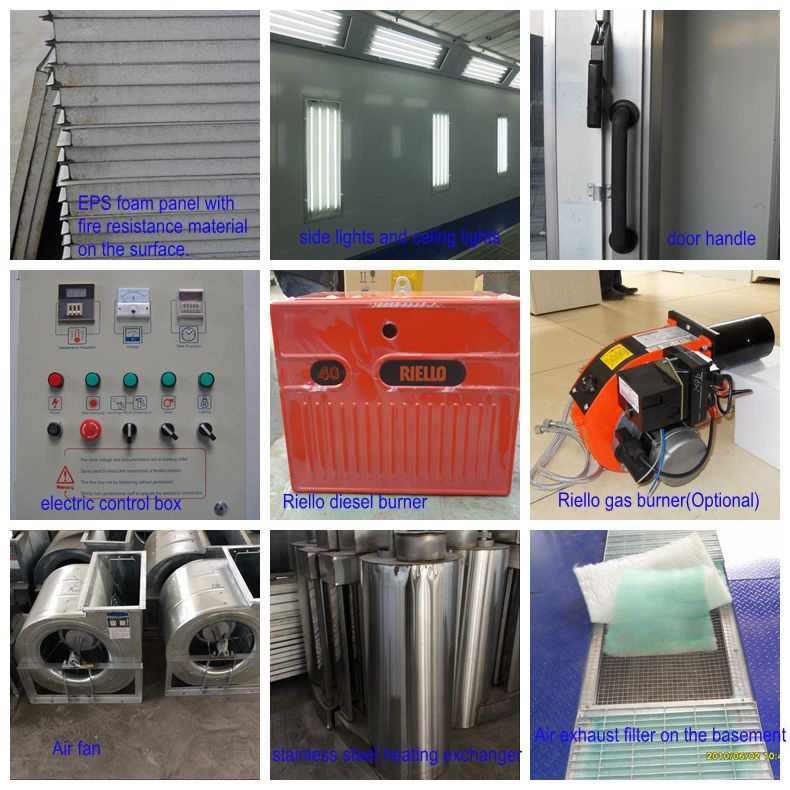

| 1.Walls&Ceiling | EPS colorful steel skin board, Wall Panels: 50 mm thick, steel sheet thickness: 0.426mm, galvanized steel roof panel. |
| 2.Basement System | Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple |
| Grid Plates (Galvanized)* 2rows |
| Diamond Plates (Powder Coated or Galvanized)* 3rows |
| 3.Heating System | Italy RIELLO G20 diesel burner * 1unit, 180000Kcal/h. |
| Heating Exchanger (SUS304 Stainless Steel material)* 1unit |
| 8~15 minutes reaching the baking temperature 60~80 degree Celsius |
| Cabinet (rock-wool insulation) * 1unit; Air Ducts * 2pcs |
| 4.Filter System | Primary Filter* 1set, filtering rate > 83% |
| Air-Intake Filter* 1set, filtering rate > 97% |
| Air-Exhaust Filter* 1set, filtering rate > 70% |
| 5. Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each |
| Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor |
| Air velocity 0.35 m/s |
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit |
| 6. Illumination | Ceiling Lights 8*4=32pcs, 40w each, with Light Fixtures, anti-explosion design, CE & UL approved |
| Side Lights 8*4=32pcs, 40w each, with Light Fixtures, anti-explosion design, CE & UL approved |
| 7. Control Panel | *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc. |
| ** Included | All Hardware, Fasteners, and Sealants |

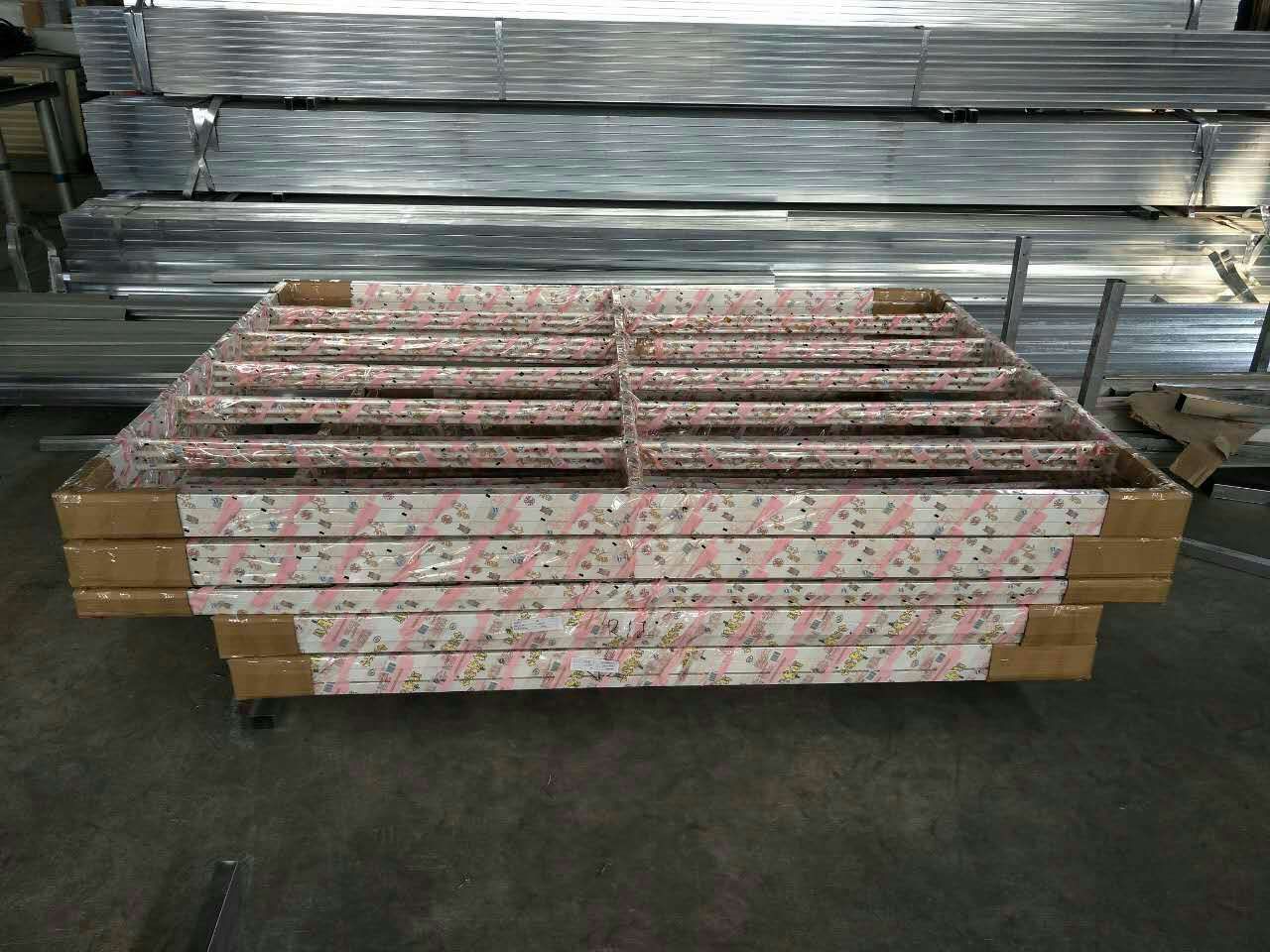

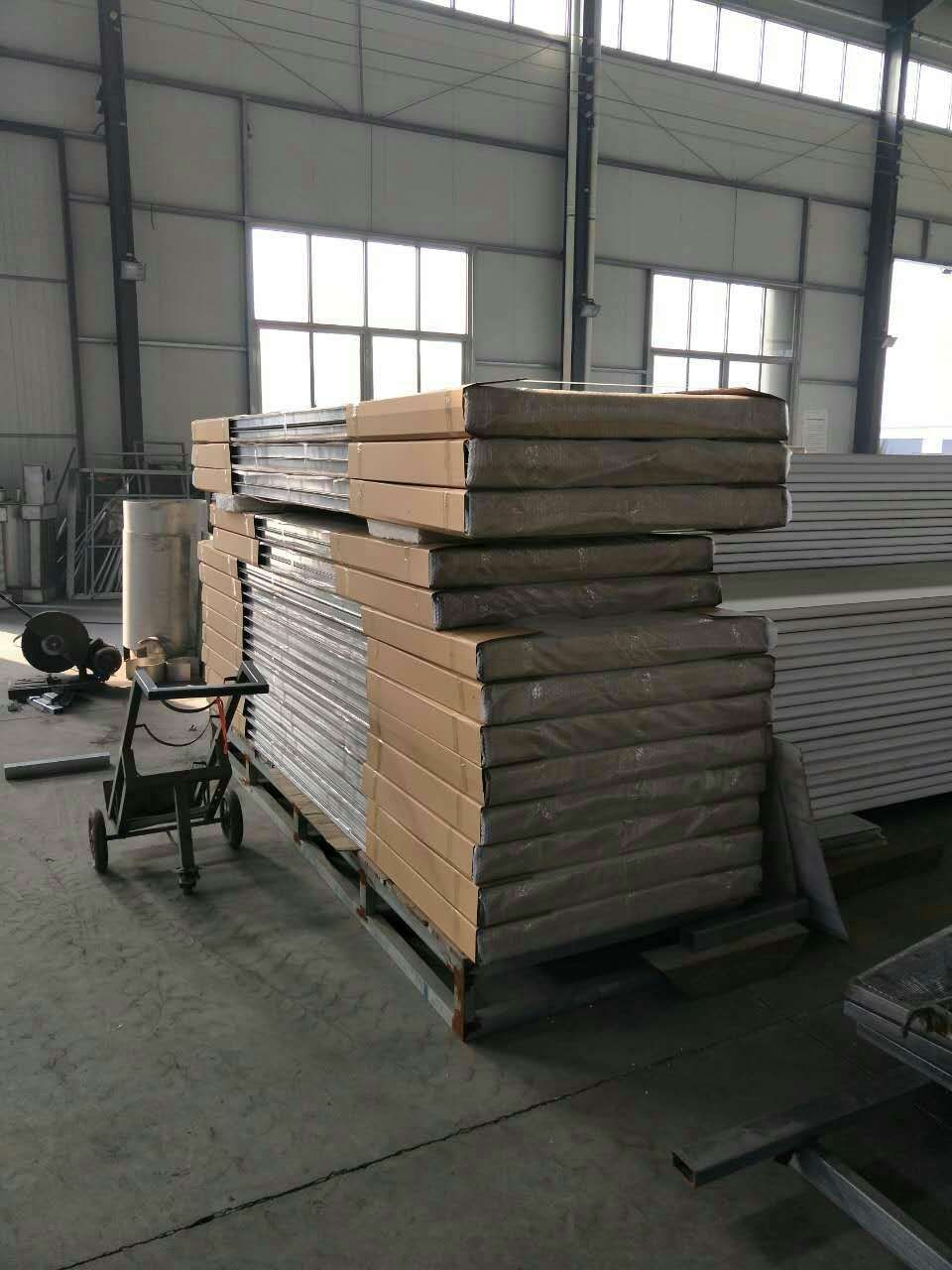

Package:Each part use foam film to pack ,then use carton paper to protect.
