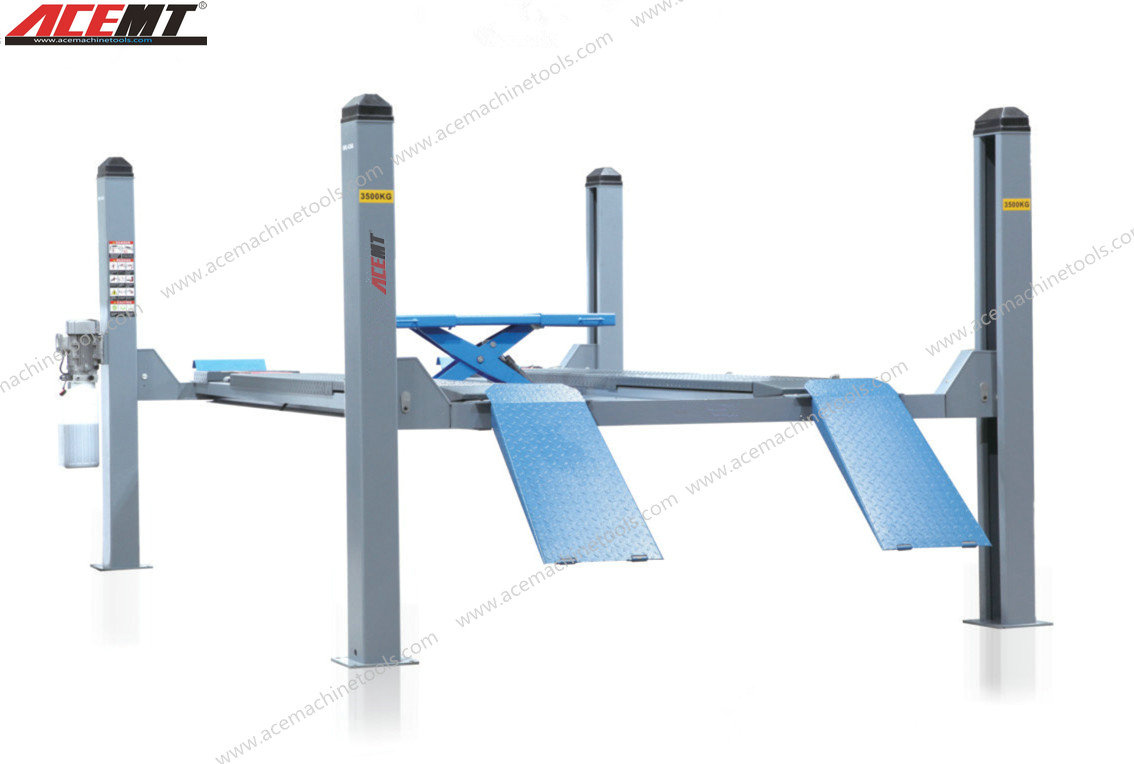

Four Post Lift (ACEL435/440/450/455)

Prod Model:	ACEL435/440/450/455
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Liftting Capacity:	3500kg/4200kg/5000kg
Lifting Height:	1800mm
Min. Height:	220mm
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	2.5T
Certification:	CE
Design:	Two Post

Product Description

FEATURES:
Suitalbe used in the car 4S shop and the repair and maintain service workshop as vehicles lifting,may also cooperating used with wheel alignment.
4000kg/5000kg lifting capacity.
Manual machine lock release,easy to be operated,and provide electric release for choose.
Aluminum shell motor prevents overheated.
Low profile,minimum height is 200mm.
Hydraulic cylinder located inside of runway, perfectly protected.
The heavy duty steel wire drum, ensures the vehicles safety.
Adjustable runways make lift suitable for more versatile vehicles.
The automatic operated mechanical lock engaged in process to ensure the vehicles lifting safety.
Runway synchronizer system provided for preventing vehicles from tilt possibly.
The hydraulic system is equipped with device for over-load prevention.
Pipe broken and steel rope broken protection device provided.
24V safety voltage used for control system.
Routine testing with 115% dynamic and 150% static loading.
TECHNICAL SPECIFICATION:

Liftting Capacity	3500kg/4200kg/5000kg
Lifting Height	1800mm
Min. Height	220/220/260mm
Overall Height	2120mm
Jack Capacity	2500kg
Runway Length	4250/4800/4800mm
Runway Width	520/520/500mm
Lifting Time	60s
Rated Oil Pressure	18Mpa
Motor Power	2.2/2.2/3.0kw
Power Supply	220V/240V/380V/415V
Weight	1384/1604/1824kg
Packing Size	4570/5100*560*730+820*340*360mm
