Product Description

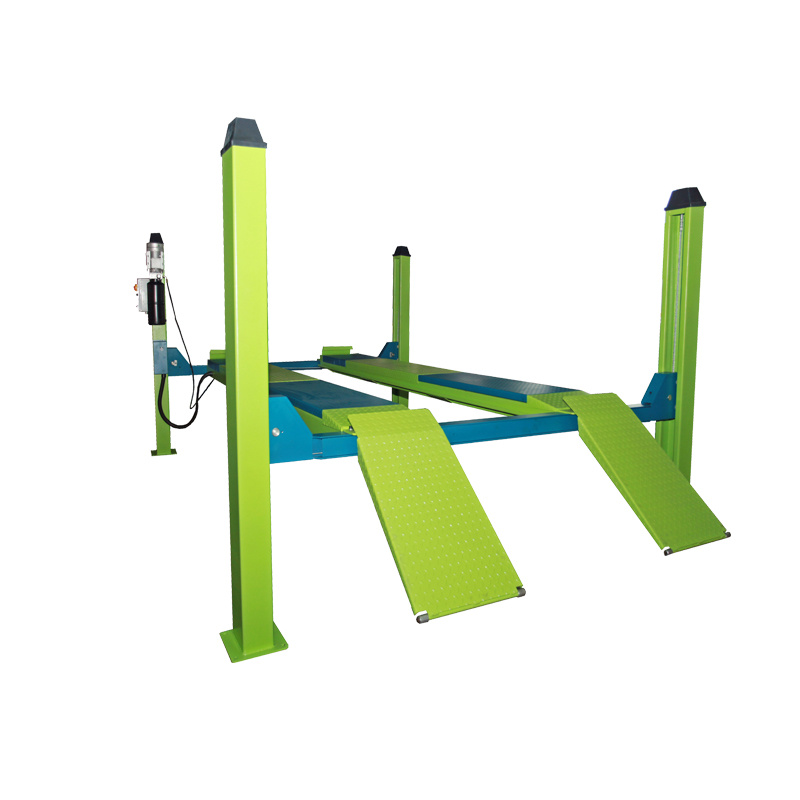

Four Post Car Lift for 4s Shop Station with Alignment
Product DescriptionFeatures:1.Hydraulic drive , steel rope lifting system
2.Adjustable self-lock system ensure the vehicle safe in different height , pneumatic lock release, steel rope anti-dropping device
3.Self-lubricating bearing to ensure the safety
4.Four points automatic safety locks
5.Heavy duty sliding turnplate
6.Slideway inside of the runway for other equipments
7.Anti-falling blocks in all the posts to add safety
8.Free caster kit for moving the lift ,Diamond plate runways and ramps
9.Hydraulic middle rolling jack , manual or pneumatic
10.Polished and powder coated posts
Parameters: Model NO. | JH-4P5000 |
Drive Mode | Hydraulic drive + steel wire |
Loading Capacity | 5000kg |
Lifting Height | 1700mm |
Width Between Runways | 900-1180mm |
Overall Height | 2110mm |
Outline Dimension | 3083×5140×2106mm |
Rise/Drop Time | 90S/60S |
Rated Oil Pressure | 18Mpa |
Surface Treatment | Powder coated |
Safety Lock | Pneumatic lock release |
Power Supply/Motor Capacity | 220V/380V/2.2kw or according to customers' request |
Safety | Four points automatic safety locks ,Multiple safety locks, Adjustable self-lock system to ensure safety |

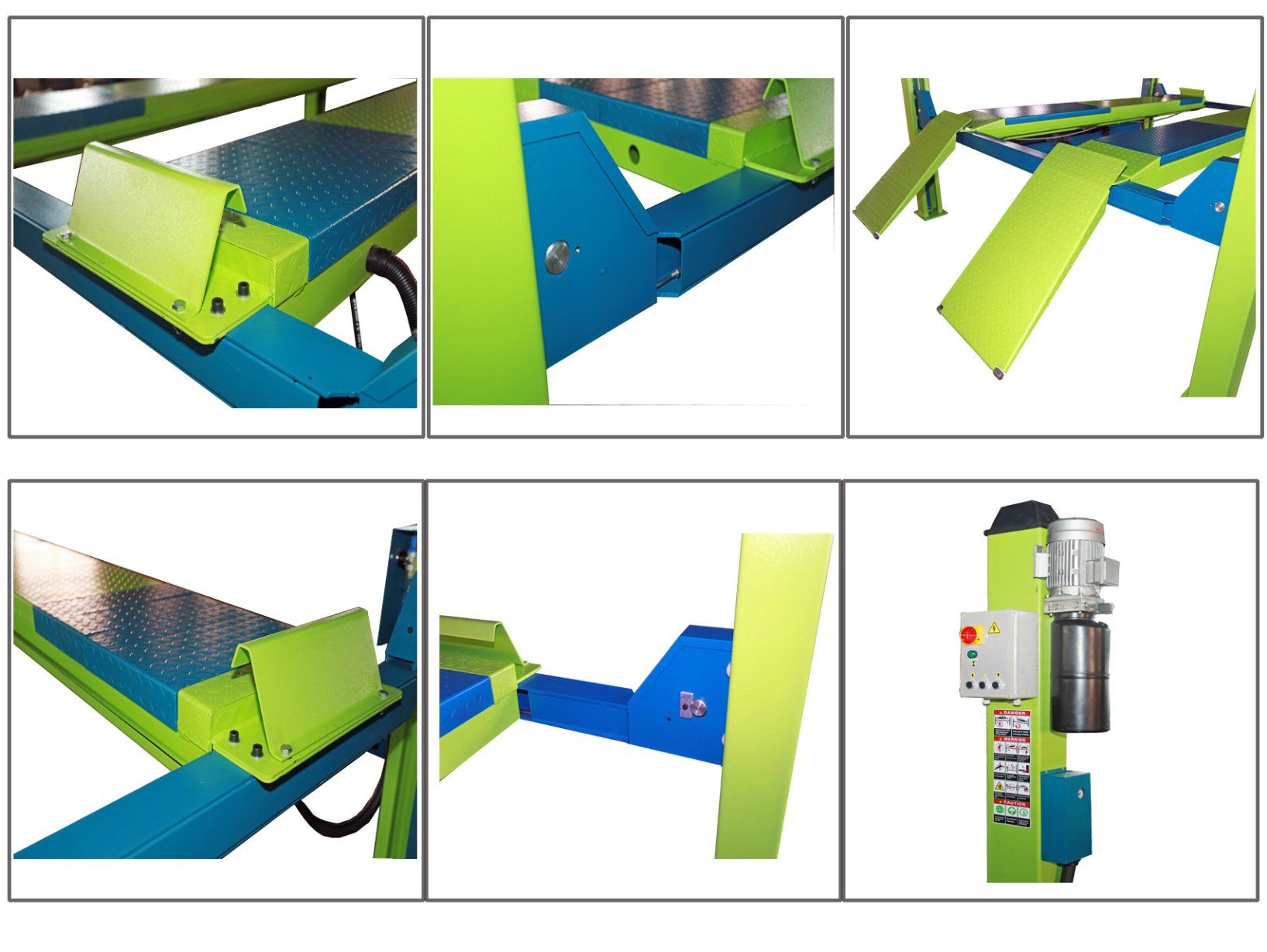

Detail picture:
Delivery Date:Usually it takes 3 weeks after receving your receipt payment .
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Quality management:To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Whole manufacturing processes are under a veryserious and strict system.
Company Introduction: FAQ |
Q1 | What's the delivery term for making business with us? |
A | Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients. |
Q2 | What's the delivery time after placing the order? |
A | Usually it takes 3 weeks after receving your receipt payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
Q3 | What's the payment? |
A | By T/T, 50% is paid in advance; balance befor delivery |
Q4 | What's the min order? |
A | 1 set. |
Q5 | What's the warranty? |
A | 1years for free |
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
