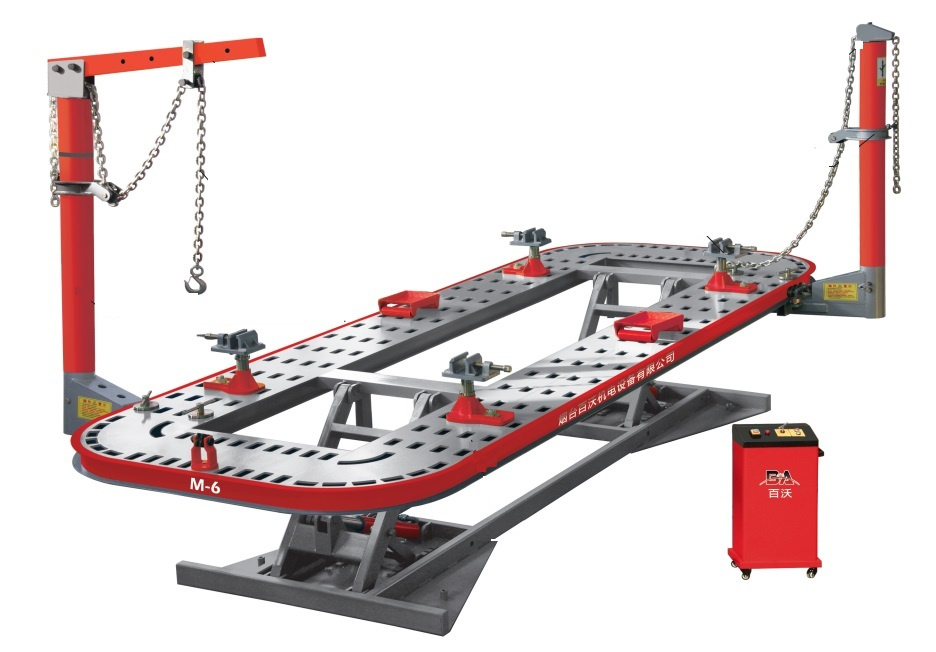

Fostar-M6 Automobile Frame Correcting Equipment

Name: Fostar-M6 Automobile Frame Correcting Equipment
Brand: ibuyautoparts.com
SKU: 725469952
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 3200/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Type: FOSTAR-M6
Origin: China - Zhuhai
Registered trademark: ZHZY
Technical Parameters:
The overall equipment by an electric hydraulic pump as a power, two pull tower, platform lift only a remote control can be manipulated, simple operation, easy to use.
Platform high-quality manganese steel plate composition, high strength, good rigidity, long service life.
Double cylinder hydraulic vertical lifting platform, take off a smooth and reliable, in the 350-1150mm range of flexible adjustment platform height, lifting device equipped with hydraulic and mechanical double insurance,
The new side of the tower, 360 degrees along the platform can be flexible to move, can achieve multi-point stretch, the force structure is more reasonable, easy to use and safe.
Mechanical streamline design of the fixture, after forging, heat treatment process, high strength, long life, the opportunity to consider all the deformation correction.
Universal fixture, you can pull the skirt, but also folder the beam.
Hydraulic pump station exclusive design, exclusive production, all hydraulic components using domestic flat shot, powerful. To force evenly, stable and reliable, long service life.

Table Length	6000mm
Table Width	2200mm
Table Height	560mm
Hydraulic Pressure	70Mpa
Post Working Range	360°
Post Max.tension	95KN
Max.lifting	3500kg

Prod Model:	FOSTAR-M6
Certification:	ISO

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
