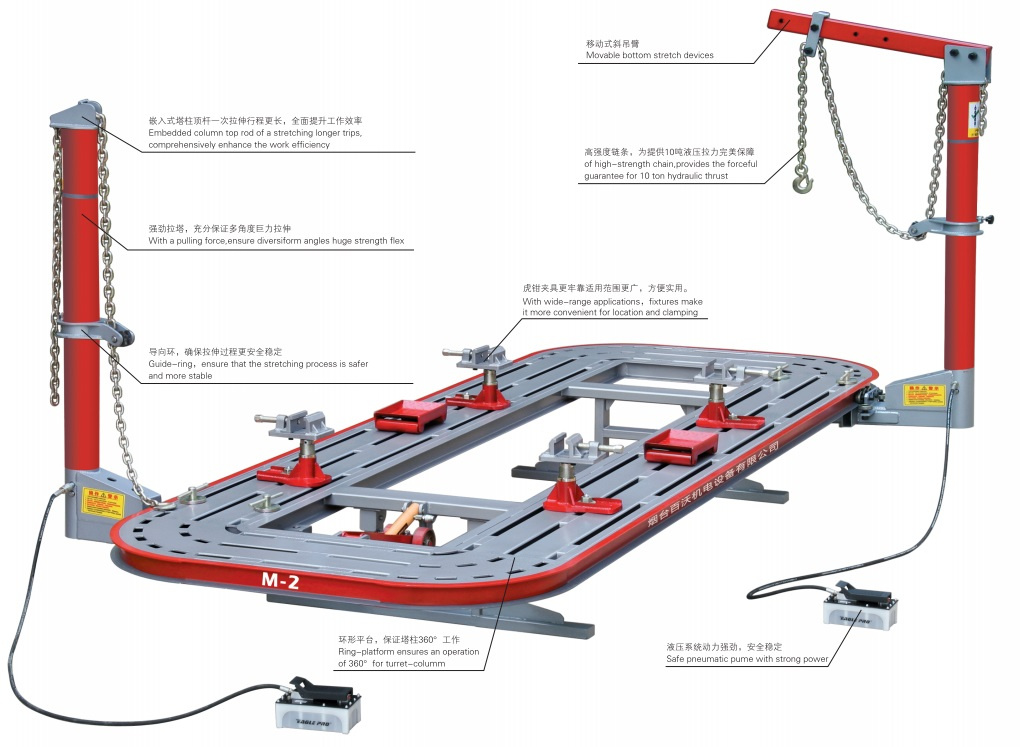

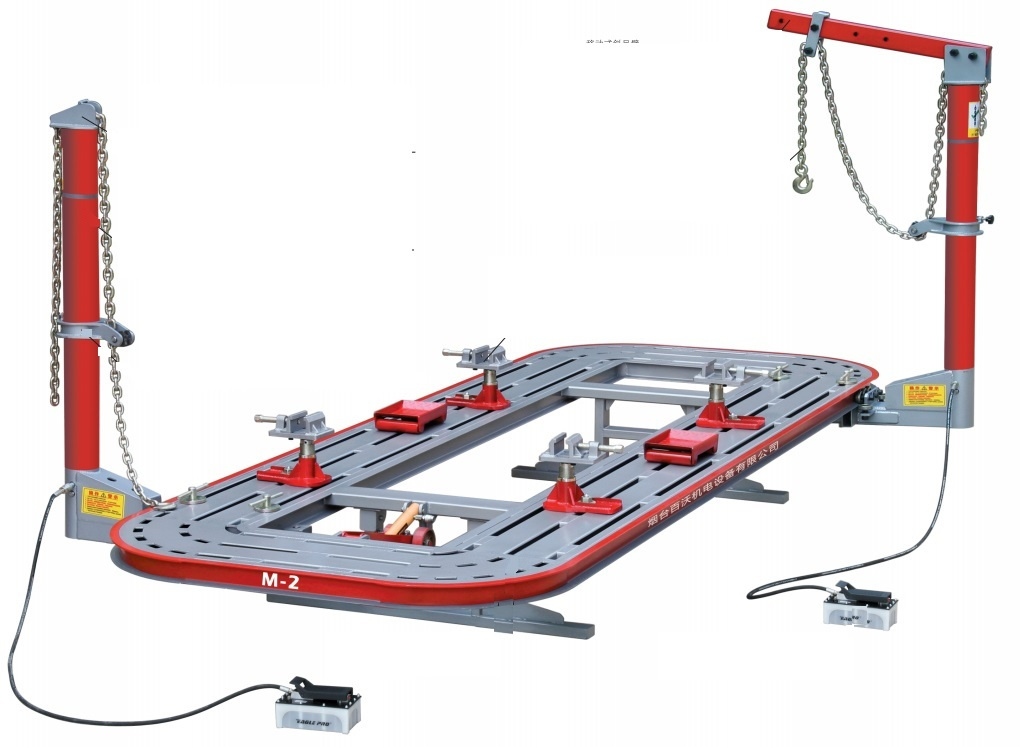

Fostar-M2 Automobile Frame Correcting Equipment

Name: Fostar-M2 Automobile Frame Correcting Equipment
Brand: ibuyautoparts.com
SKU: 725469902
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 3088.2352/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Origin: China - Zhuhai
Registered trademark: ZHZY
Technical parameter:
1. hydraulic tilt lifting platform makes it easier to get on or get off in any accident. Platform lifting is easier.
2. hydraulic double pole 360 degree operation, free and flexible, cylinder vertical work, pulling force accurate and strong.
3. mechanical streamline design of the main fixture, after forging and heat treatment process, high strength and long service life, almost suitable for arbitrary deformation correction.
4. embedded tower push rod with concealed hydraulic jack, plus maintenance disassembly, more powerful.
5., a full range of sheet metal tool accessories, taking into account the arbitrary shape of the deformation correction, can make the correction more in place, more convenient and more efficient.
6. hydraulic pumps, equipped with pneumatic pumps or supplied by POWER TEAM, USA, have a longer service life.
7. rectangular tube work platform, high strength steel plate, more work holes on the platform, fixture fixed, easy to operate, easy to eliminate deformation, stress protection, no damage parts.
8. reliable beam corrector performance and cost-effective, taking into account the ability to accept different groups of investors!groups!

Table Length	5200mm/5600mm
Table Width	2100mm
Table Height	560mm
Hydraulic Pressure	70Mpa
Post Working Range	360°
Post Max.tension	95KN
Max.lifting	3500kg

Prod Model:	FOSTAR-M2
Certification:	ISO

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
