Veise (Guang Zhou) Electronics Co., Ltd. >> Forklift Truck Camera with 1/3" Sharp Sensors and Night Vision (DF-723H2561-MP7W)

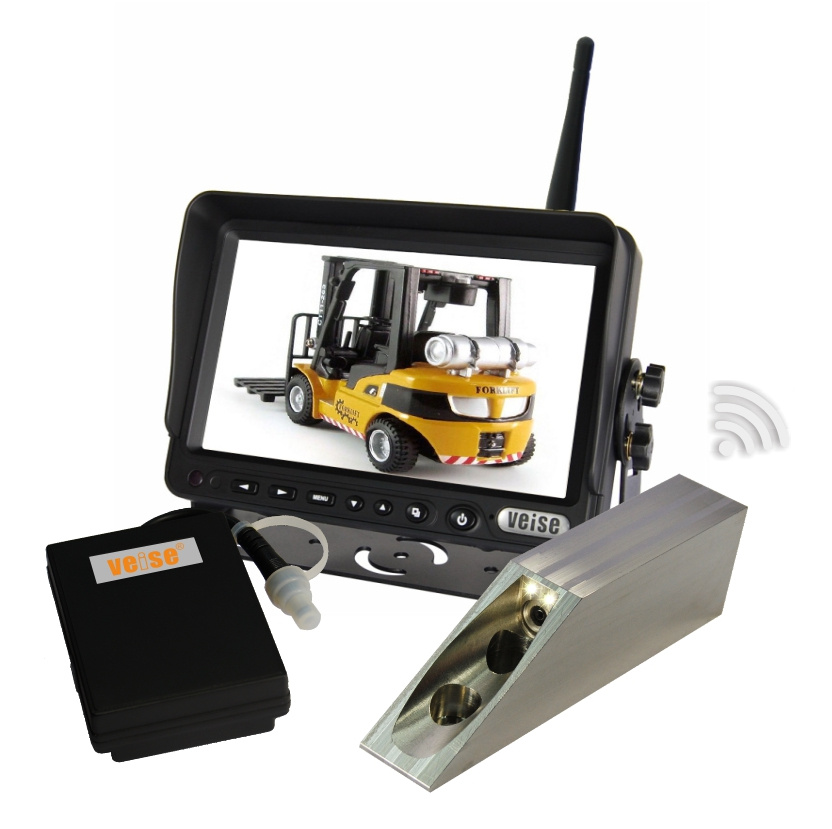

Forklift Truck Camera with 1/3" Sharp Sensors and Night Vision (DF-723H2561-MP7W)

Forklift Truck Camera with 1/3
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Forklift Truck Camera  with 1/3" SHARP Sensors and Night Vision(DF-723H2561-MP5V)

1.Easy installation and assembly
2.High-resolution , high sensitivity and high signal to noise ratio
3.Super low-light, high-quality imaga capabiities .
4.Shockproof , waterproof , anti-interference and resistance to high/low temperature

Digital Wireless Receive Monitor(Model:SP-723H2)
7" Digital Screen TFT LCD Monitor with Removable Sun Visor
Built in 2 CH 2.4GHz Digital Wireless Receiver
Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)
Overlapping Hopping Channel:80
Color System:PAL/NTSC
Display Resolution: 800RGB(H) X 480(V) dot
Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 450
Contrast ratio: 500:1
Operating temperature: -20ºC to +70ºC
Storage temperature: -30ºC to +80ºC
Free Operating Voltage: DC10~32V
External dimensions:(L x W x T) (185X122X28mm) without mounting Sun Visor
Weight Approx: 400g
Digital Wireless Waterproof IR Camera(MODEL:DF-8305ZP)
Image Type: 1/3 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power:18dBm with Power control
Line of Sight Range:≤50M
Horizontal Resolution:600TV Lines
Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V)
Usable Illumination : 0Lux ( Built in 2pcs LED's for Picture Support in the Dark)-Automatic control
Free viewing angle: 45°
Waterproof: IP67
Shockproof: 10G
Free Operating Voltage: DC5 Volts for power bank
Dimensions: 25(W) x 37(H) x 124(D) mm (without mounting)
Weight : 450g
DC12 Mobile Power (MODEL:DF-MP5V)
Type Batteries:Li-ion batteries (Panasonic original import)
Capacity:10000mA
DC Input:5V/12V(2A)
DC Output::5V(500mA)
Charging times:> 800 cycles
Charge / Discharge Interface:DC2.1 * 5.5 male
Shockproof Level:6G
Waterproof Level:IP66
Charging Working Temperature: 0 ºC to + 40ºC
Discharge Working Temperature:-20ºC to + 60 ºC
Storage Temperature:-40 ºC to + 60 ºC
Dimensions (mm):-95mmX72mmx29mm (without tails
Weight (g):280g
Fitting:Charging cable ,manual,External magnetic (optional)

Accessorie

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*1,User's Manua,USB charging cable

Specification:


2.4GHz wireless camera systems for forklifts, reach trucks, and other types of industrial trucks used for lifting.
Lift truck operators work every day in situations where their vision is limited. whether at the fork tips, or behind the
truck, increases handling times and may also result in dropped loads, damaged goods, bent racking or picking the wrong pallet.
Digital wireless Camera with power bank,easy to install,no need to Run Cables.


Testing Report:

EMC

1)EMC horizontal and vertical radiation test report . Standard: (RE)EN301489-1

2)EMC positive, negative conduction test report.      Standard:EN55022 CE-Class B_QP

Automotive load dump testing standards

3)12V / 24V system testing .Standard: ISO7637 5a

Crank voltage test

4)Display Power / trigger input DC24V work off the rear end of 2S,Re-power to ensure product recovery work.

5)Monitor power / end trigger input DC24V, within 2S voltage down to 0V, namely to ensure that products rose after 24V restoration work.

6)Monitor power / end trigger input DC24V, 1mS intervals to switch five times to ensure product recovery work.

Monitor power / end trigger input DC24V, after the interval to 500mS switch 5 times to ensure product recovery work.



Services:

1, Reply your inquiry in 24 working hours.
2, Customized design is available, OEM and ODM are welcomed.
3, Deliver the goods to our customer all over the world with speed and precision.
4, Offer customer the lowest price with high quality Camera and Monitor.
5, Well-trained and experienced staff to answer all of your inquires in fluent English.
6, Protection of your sales area, ideas of design and all your private information.


Certificates:

7 Inch Digital Wireless Rear View Car Camera with Color Monitor



FAQ:

1.Are you a trading company or factory?
Answer: We are factory in Guangzhou.
2.What's the warranty of your products?
Answer: Monitor:2 years; Camera:1 year.
3.What's the payment term?
Answer: T/T,Western Union and L/C are available.
4.How can I place the order?
Answer:Please send us an inquiry,confirm your preferable models,our sales shall send you a proforma invoice.After receiving your payment,we will arrange to get goods ready and ship out.

Prod Model: DF-723H2561-MP7W
Brightness: 450(CD/M2)
Load Dump: DC14+87V(Td400ms) 5pulses
Free Viewing Angle: DC10~32V
Cam Viewing Angle: 45 Degree
Interface: Air Plug
Chip: CCD
Probe Number: 1-2PCS
Definition: 500tvl
Waterproof Grade: IP69K
The story behind Veise

Veise is the specialist in camera and monitor systems for heavy equipment, commercial vehicles, cranes, lift trucks, maritime applications, emergency vehicles, railway applications, municipal vehicles, and airport vehicles. All over the world we broaden the horizons of drivers, operators, captains and machinists, with increased safety, efficiency and comfort as the aim.

Veise has over 20 years of experience in designing and developing certified vision solutions for eliminating blind spots around vehicles, machines and ships. Veise has grown into an international company at lightning speed, product sales to Europe and the United States, Japan and other regions.

Why Veise?

Veise keeps matters in its own hands

Vision is our mission

Quality

Vision solutions for many market segments.

From design to development and from production to service: Veise keeps matters in its own hands, and that makes us unique. We can produce 30000sets of monitors and 40000 sets of camera per month, because our assembly steps are rather simple. OEM and ODM services are also available.

Veise team

The Veise team consists of over 100 members of staff who are committed to providing you with the best camera and monitor solutions. In our optimized production halls we assemble cameras, monitors, cables and connectors, , switchers, mounting products, interfaces, controls and power supplies.

Vision is our mission

For every situation, Veise brings a vision solution to the market. This is a segment that is developing to become one of the largest global markets in the field of accessories, bolstered by legal regulations relating to visual solutions. Within this market, we wish to be the partner of choice. Our promise? More safety and efficiency, improved ergonomics and comfort, and certified quality.

Mission

Vision is our mission. Veise wants to provide end users with optimum vision; To do so all activities are crucial. From development and production to delivery and service. This results in enthusiastic customers who strengthen our image in the market through word-of-mouth advertising.

Quality

Veise develops and produces vision systems and related solutions in accordance with strict quality requirements, and has the ISO 9001: 2008 certificate. ISO 9001 enables Veise to safeguard its processes even more effectively and to continue intensifying the focus on quality and deliveries. This enables us to serve our customers even more effectively and to work on further developing the market. In addition to ISO 9001, Veise has also implemented ISO/TS 16949: 2009, which is the quality certificate in the automotive industry. TUV Rheinland Quality Assurance has certified Veise's quality system.

Veise wants to stabilize its processes as much as possible, and manages them through statistic monitoring. In doing so, we are continuously improving performance in respect of our customers. The entire organization constantly works on improving processes and products. We achieve this through an integrated approach (quality, health, safety, sustainability and environment) and, in doing so, use the 'automotive core tools' such as 8D, FMEA, SPC, MSA, APQP and PPAP. And we also got the certificates of MA, IP69K, EMC, FCC, RoHS and E-MARK.

Consideration of the environment

Care for health & safety and the environment is an important value within our operational management. In the following Environment, Health & Safety policy statement, the directorate and the management highlight the importance of these matters for Veise

Veise works in a safe, responsible manner that embodies respect for the environment and the health of our staff, our customers, and the community in which we are active.

In no way will we act recklessly with the environment or with the health and safety of the local area in order to increase our profits or production levels.
