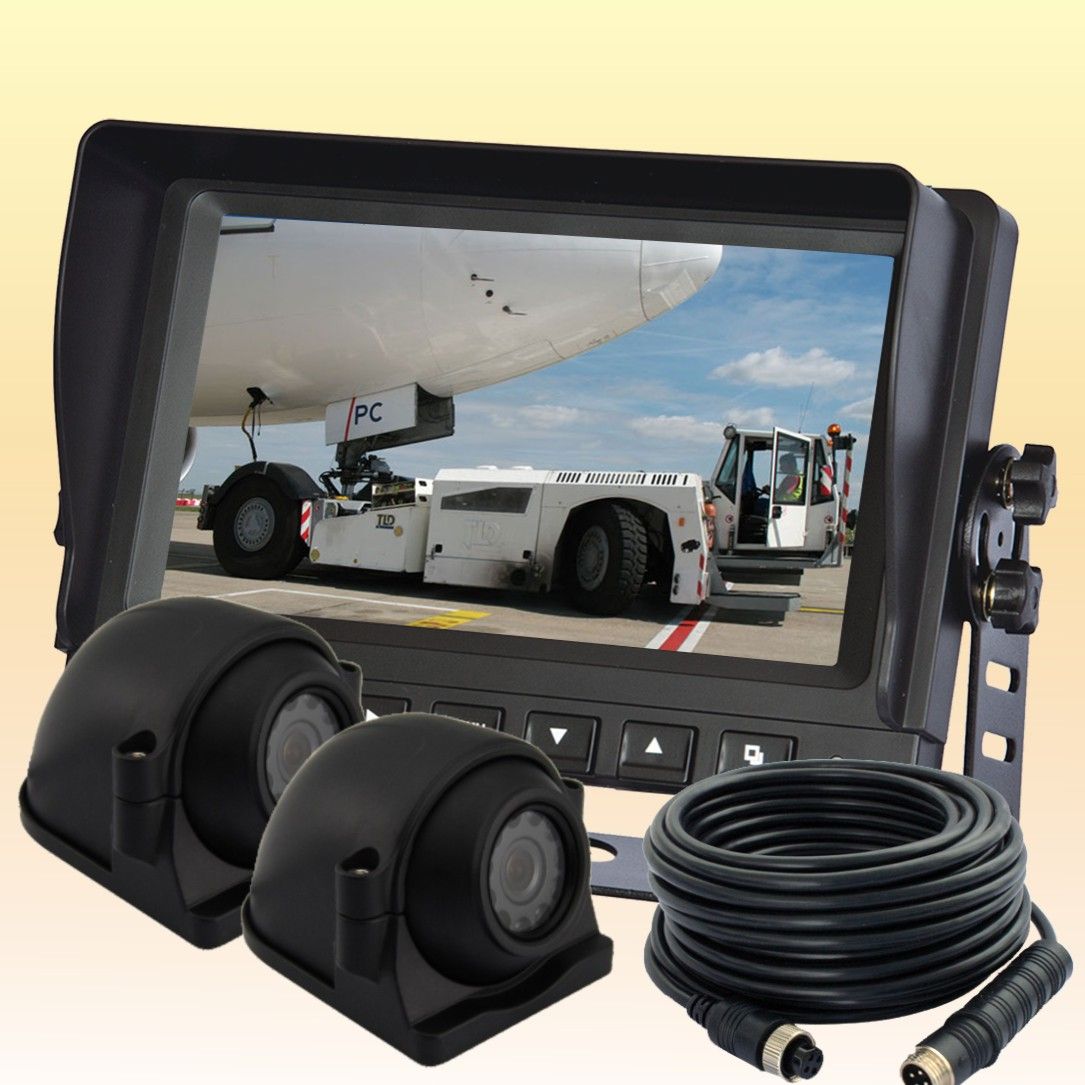

Bus&Truck Waterproof Camera Rear View System
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
7 inch car backup rear view camera system for bus(DF-7602012)
Camera Monitor Systems for Allis Chalmers, Case, Ferguson, Ford, Farmall, John Deere, Massey Harris, And Massey Ferguson Vision Security
7" Rear View Monitor Free Operating Voltage DC11-32V, DC14+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightness
700 TV Lines High Definition Camera Waterproof IP69K
Model
| SP-760
|
| Support Tow-Channel Video Input |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Manual and Automatic Switch Display Mode | (4:3, 16:9) |
| Color System | PAL/NTSC (AUTO) |
| Display Resolution | 2400(H) X 480(V) DOT |
| Video Inputs | 1.0Vp-p75Ω |
| Wide view angle(CR>10):(up/ down) | 45/65 (left/right): 65/65 |
| Contrast ratio | 500:1 |
| LED Back-light | Single Brightness 400(cd/m2) |
| Load Dump | DC14+67V(Td400mS) 5pulses |
| Operating temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Free Operating Voltage | DC12-32V |
| External dimensions | L*W*T(185X124X48)mm(without mounting) |
Model
| DF-8039*2
|
| Image Pick-up Device | 1/3" SONY COLOR CCD |
| Horizontal Resolution | 700 TV Lines |
| Number of Pixels | NTSC: 976(H)× 494(V); PAL: 976(H)× 582(V) |
| Sync System | Internal Synchronization |
| Gamma Characterlstic | 0.45 |
| S/N Ratio | ≥ 48dB(AGC Off) |
| Electronic Shutter Time | On: NTSC 1/60~1/100, 000Sec, PAL 1/50~1/100, 000Sec;Off: NTSC 1/60 Sec, PAL 1/50 Sec |
| Usable Illumination | 0 lux with built-in IR LED |
| IR projecct distance | 10 meters(10 Unit Infrared LED) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Lens | Board Lens 2.9mm/F2.0(optional) |
| Video Output | 1.0Vp-p 75 ohm |
| Gain Control(AGC) | Auto |
| Water resistance | IP69K |
| Operation Temperature | -20º C~+50º C RH95% Max |
| Storage Temperature | -40º C~+80º C RH95% Max |
| Power Supply | DC12V± 10% 400mA |
| Dimension | 55(L) x 63(W) x 74(H)mm |
| Weight | 250g |
| Prod Model: |
DF-7602012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400CD /M2 |
| Waterproof: |
IP69k |
| Free Viewing Angle: |
130 Degree |
| Load Dump: |
DC14+87V(Td400ms) |
| Interface: |
Air Plug |
| Chip: |
CCD |
| Definition: |
700tvl |
| Waterproof Grade: |
IP69k |
