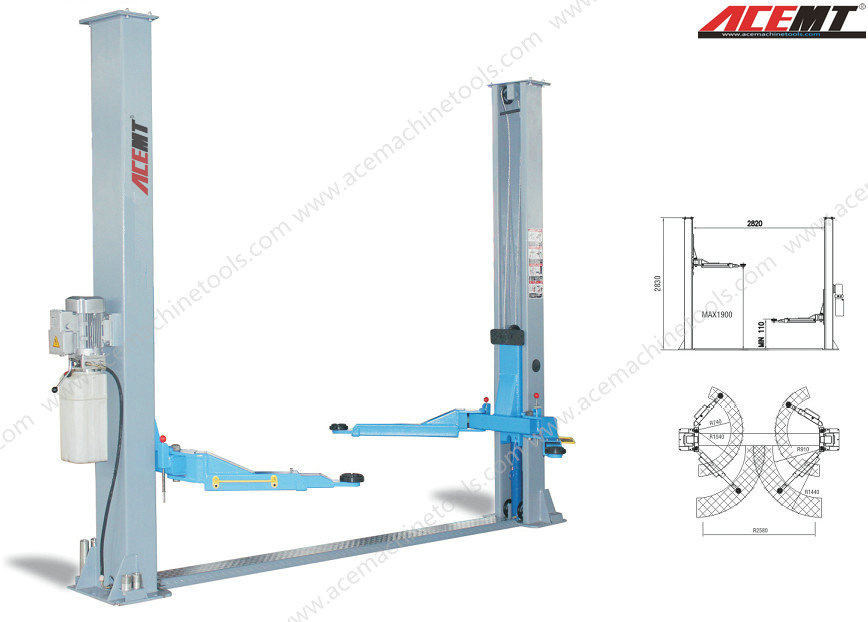

Floor Plate Two Post Lift (FDL32Q/40Q)

Floor Plate Two Post Lift (FDL32Q/40Q)
Price: US $ 1000-2000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Floor Plate Two Post Lift(FDL32Q/40Q)
FEATURES:
Floor plate design is ideal choice for low ceiling shop
By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
Hydraulic power unit configuration throttling device, can always djust the rate of decline. manual locked release from two sides.
24V limit switch. Asymmetric arm design,leaves more space for the cars.
Rubber support pad with spiral adujst the height and in stages adjust the height.
Rubber pad door-opening protection.
It has adopted 115% dynamic and 150% static loading capacity tested.
Feet -protection safety guardrails.
CE cergificated.
TECHNICAL SPECIFICATION:
Lifting Capacity3200kg/4000kg
Max.Lifting Height1900mm
Minimum Height110mm
Lifting Time40-45s
Overall Height2830mm
Overall Width3420mm
Width Between Columns2820mm
Motor Power2.2kw
Power Supply220V/240V/380V/415V
weight592kg/636kg
Packing Size2900*530*770mm
Prod Model: FDL32Q/40Q
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Minimum Height: 110mm
Max.Lifting Height: 1900mm
Lifting Time: 40-45s
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3.5T
Certification: CE
Design: Two Post
