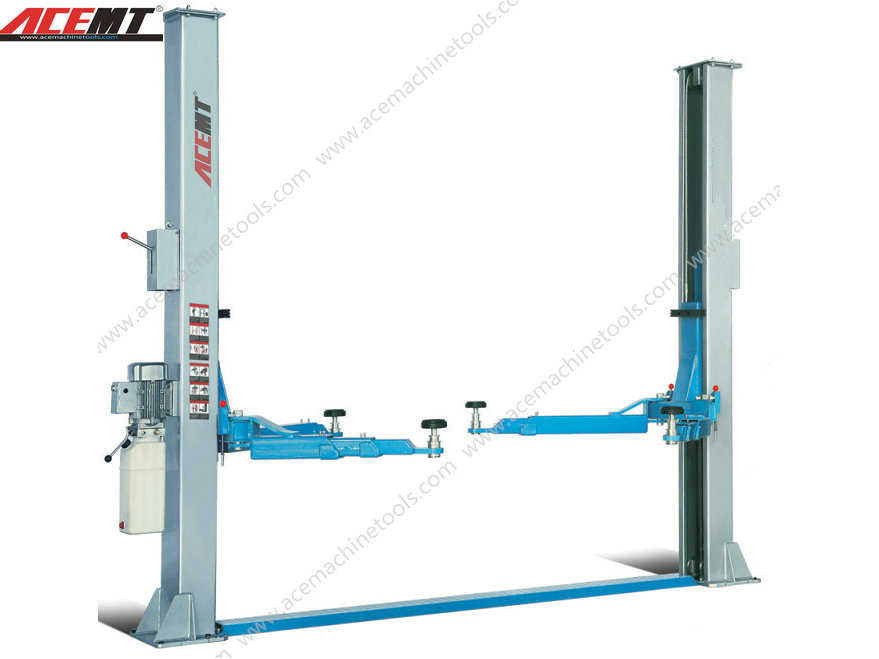

Floor Plate Two Post Lift (ACEL32FB/40FB)

Name: Floor Plate Two Post Lift (ACEL32FB/40FB)
Brand: ibuyautoparts.com
SKU: 782460425
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 1000-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACEL32FB/40FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Minimum Height:	110mm
Lifting Time:	40-50s
Weight:	636kg/680kg
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Two Post

Product Description

Floor Plate Two Post Lift(ACEL32FB/40FB)
FEATURES:
Floor plate design is ideal choice for low ceiling shop
By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
Hydraulic power unit configuration throttling device, can always djust the rate of decline.
Asymmetric column allows wider drive through clearance.
Manual lock release from one side,more convenient to use.
Take three stages arm design, a larger adjustment range, for different vehicle chassis.
With 24V limit switch.
Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
Rubber pad door-opening protection.
Have adopted 115% dynamic and 150% static loading tested.
CE approved
TECHNICAL SPECIFICATION:

Lifting Capacity	3200kg/4000kg
Lifting Height	1800mm
Minimum Height	110mm
Lifting Time	40s/50s
Overall Height	2830mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/240V/380V/415V
Weight	636kg/680kg
Packing Size	2900530770mm
