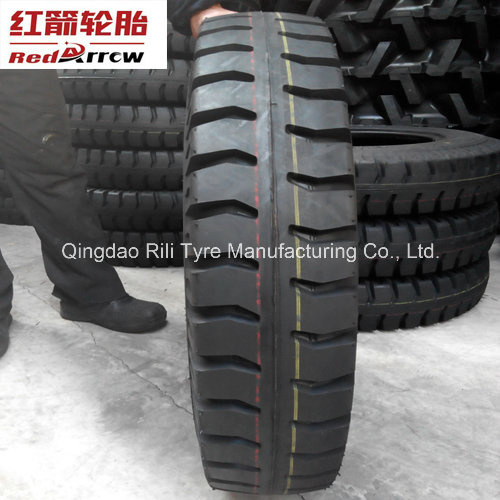

Farm Tyre/Agricultural Tire Factory 750-20

Name: Farm Tyre/Agricultural Tire Factory 750-20
Brand: ibuyautoparts.com
SKU: 695437662
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	US $ 67-77/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	120FT
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

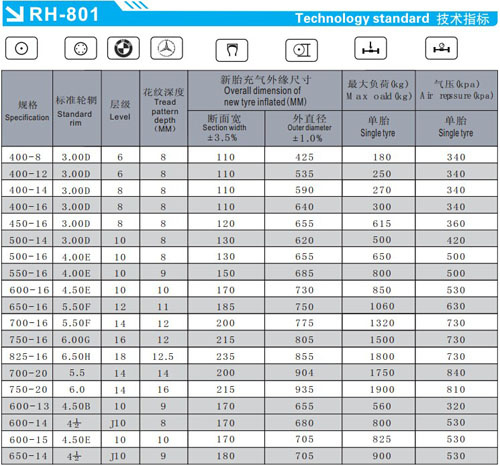

1.RH801 pattern details(750-20):

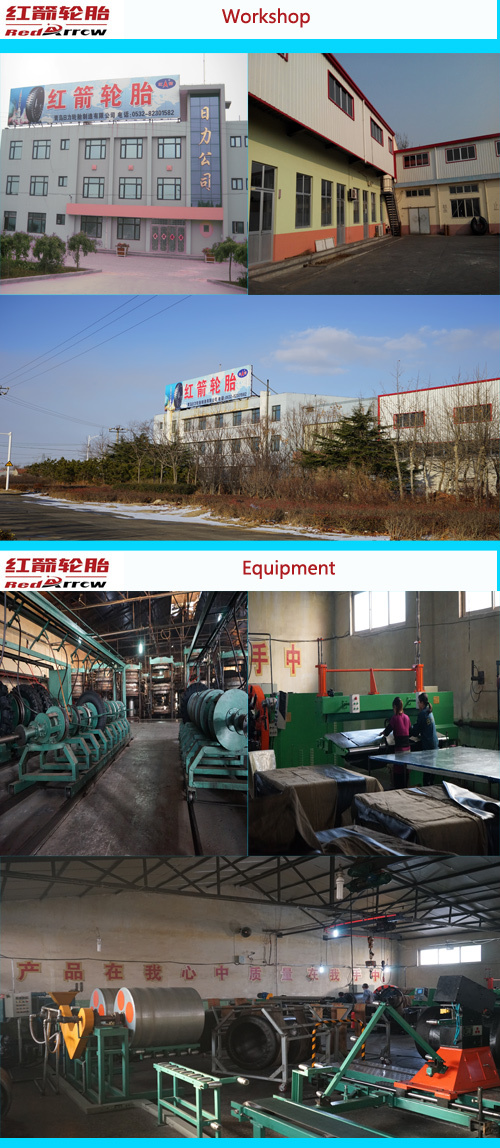

2.Qingdao Rili Tire Co.,ltd. located in Qingdao,was founded in year of 1999,Our brand is Red Arrow.

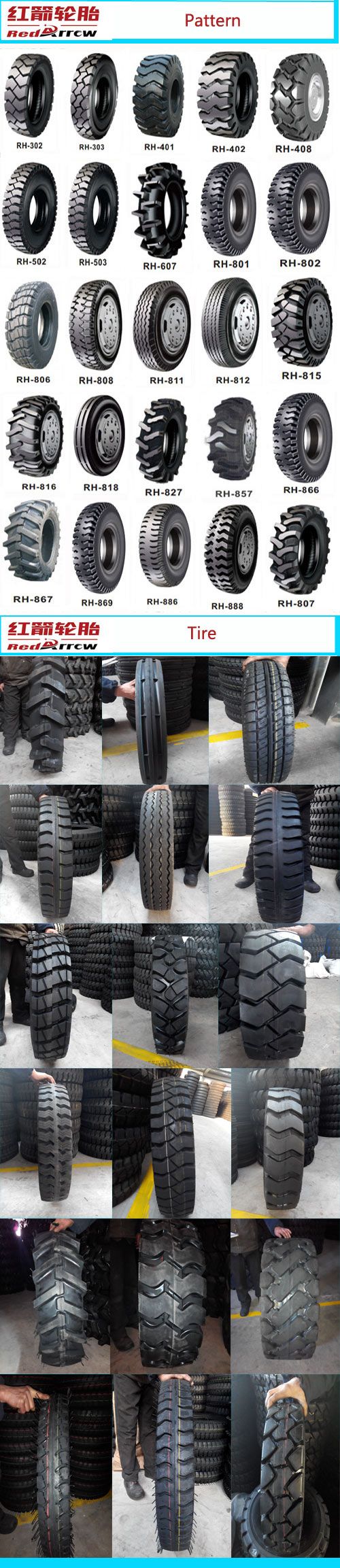

3.We mainly produce bias tire,OTR,Mining tire,Forklift tire,Heavy&Light truck tire,Agrucural tire,Paddy&Motorcycle tire.

Welcome u to Qingdao and visit our factory!

Amy Chen
Qingdao Rili Tyre CO.,LTD
Add:Pingdu,Qingdao,China Tel:+86-532-82301582 Fax:+86-532-84309130
Http://www.rilityre.com.cn

Agricultural Series
Size	Pattern	PR	Tread Pattern Depth (mm)	Standard Rim	Overall Dimension of New Tyre inflated(mm)		Max Load (kg)	Air Pressure (kpa)	Weight (kg)	Volume(m³)
Size	Pattern	PR	Tread Pattern Depth (mm)	Standard Rim	Section Width ±3.5%	Outer Diameter ±1.0%	Single Tyre	Single Tyre	Cover	Volume(m³)
11.2-24	RH816	10	28	W10	285	1105	1380	300	41.1	0.35
9.5-24	RH816	8	27	W8	240	1050	1110	280	30.9	0.26
9.5-20	RH816	8	24	W8	240	950	955	280	27.3	0.22
8.30-24	RH816	8	24	W7	210	995	810	240	25	0.21
8.3-20	RH816	8	24	W7	210	895	695	240	21.8	0.17
750-20	RH816	10	24	5.50F	205	910	760	210	21	0.17
750-16	RH816	10	23	5.50F	205	810	650	210	18.9	0.13
650-16	RH815	14	17	5.00F	180	765	565	250	15.7	0.11
600-16	RH816	6	23	4.50E	165	745	495	250	12.6	0.09
600-16	RH818	6	13	4.00E	160	740	675	450	11.5	0.09
600-14	RH816	6	23	4.50E	165	690	450	250	11.6	0.08
600-12	RH816	6	22	4.50E	165	640	405	250	9.5	0.07
550-16	RH812\	10	9	4.00E	150	685	800	500	9.2	0.07
550-16	RH818	10	12	4.00E	150	710	525	370	9.8	0.08
500-16	RH808	10	130	655		650	500		8.3	0.00
500-15	RH818	6	10	4J	140	665	465	420	8.5	0.06
500-14	RH886\RH812	10	8	3.00D	130	620	500	420	6.85	0.05
500-12	RH805	8							6
500-12	RH816	6	22	4.00E	145	590	280	200	7.3	0.05
450-16	RH886	8	8	3.00D	120	655	615	360	8.2	0.05
450-14	RH812	8	7	3.00D	122	606	592	420	7.2	0.04
400-16	RH886\RH818	8	7	3.00D	110	640	300	340	5.4 5.7	0.05
400-14	RH886\RH818	8	6	3.00D	110	590	270	340	4.9 5.3	0.04
400-12	RH886\RH818	6	6.5	3.00D	110	535	250	340	4	0.03
400-8	RH886\RH812	6	8	3.00D	110	425	180	340	3.2	0.02
600-14	RH827	8							12.6	0.00
600-12	RH886	10	16	4.50E	150	628	405	250	10.25	0.06
600-12	RH827	6	30	4.50E	154	636	405	250	10.5	0.06
600-12	RH807	6	22	4.50E	154	636	405	250	10.65	0.06
12.4-28	RH816	10							53
9.5-24	RH827	10							30.2
8.3-24	RH827	10							24.8
8.3-20	RH827	10							21.6

Prod Model:	750-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	750-20
Pr:	14
Tread Pattern Depth:	16
Standard Rim:	6.00
Section Width:	215
Max Load:	1900kg
Air Pressure:	810kpa
Cover Weight:	25.7kg
Type:	Tube
Tire Design:	Diagonal Tire
Certification:	ECE
Main Market:	Global
Brand:	Red Arrow
Diameter:	935
Tread Pattern:	Rh801

Our company supplies different kinds of products. High quality and favoroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
