| Prod Model: |
9.5-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9.5-20-8pr |
| Weight: |
28kgs |
| Standard Rim: |
W8 |
| Type: |
Tube |
| Tire Design: |
Bias Belted Tyre |
| Certification: |
CE |
| Usage: |
Tractors;Harvesters;Cultivators;UTV |
| Main Market: |
Europe;Africa;East Asia;Middle East |
| Brand: |
Red Arrow |
| Diameter: |
20" |
| Tread Pattern: |
R1 |
Product Description
9.5-20 agricultural tyre,agricultural tractor tyre,farm tyre
This products mainly describe Nylon tire/Nylon tyre/Agriculture tire/Agricultural tyre for tractor

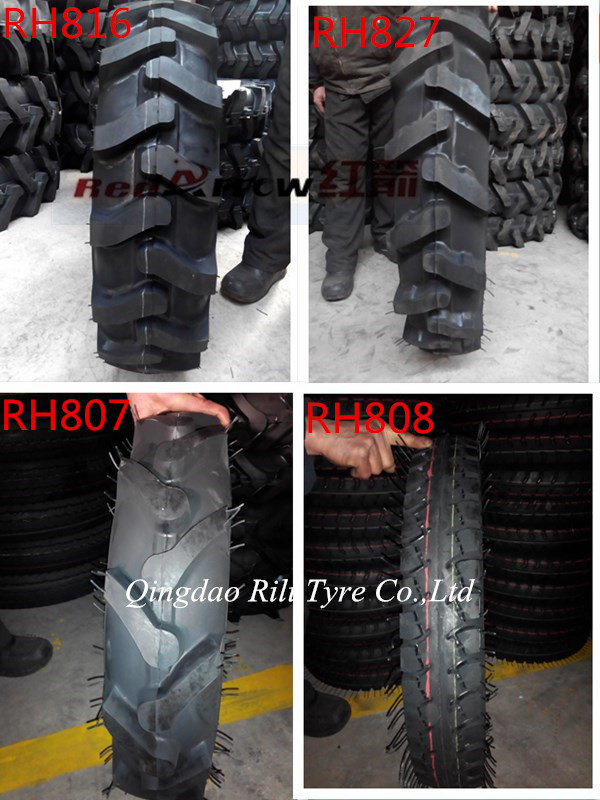

I main describe 4 agricultural tyre pattern:RH816;RH827;RH807;RH808.Blow is four pattern photo for review.
Tyre RH816 pattern Characteristics and Performance:
------Horizontal traction tread pattern ensures good driving adn catching capacity of tire
------Reasonable pattern angle ensures good selfcleaning ability of the tire
------Good tread rubber ensures cutting resistance of tire.
Tire RH827 pattern characteristics and Performance:
------Complete specifications of R1 pattern tyres,superior grip and self-cleaning,capacity,Good anging and wearing resistance by special design,suitable for farms,logging area.and fields.
Tyre RH807 pattern characteristics and Performance:
------Deep tread pattern ensures better driving and catching performance of the tire.
------Cutting resistance tread formula ensures better cutting resistance of the tire.
Tire RH808 Pattern characteristics and Performance:
------New and dynamic tread pattern gives you a brand-new feeling
------Solid tire structure ensures its durablility
------High-quality tread rubber ensures good wear resistance.
Factory introduction:

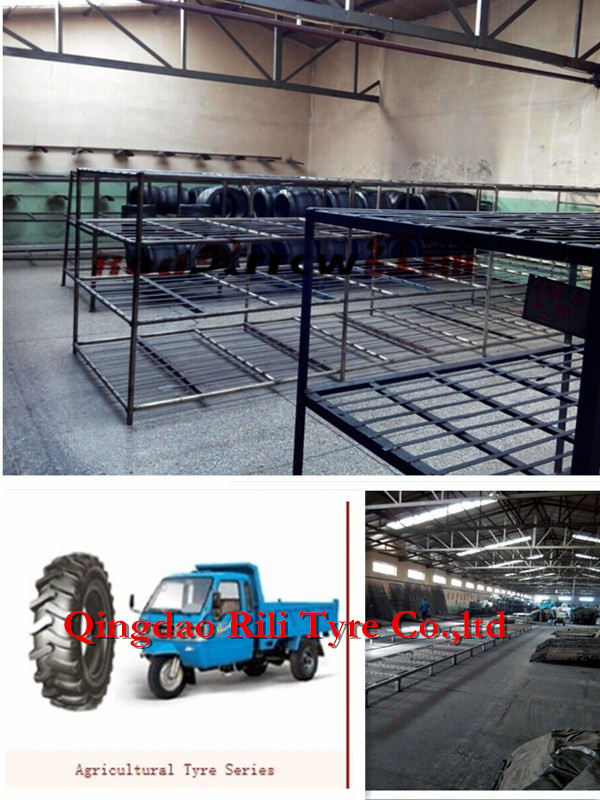

Qingdao Rili Tyre factory.located in Qingdao,was founded in year of 1999,is one the leading tyre factory in designing and Manufacturing tires in China.
Our tire cover Agriculture tire,Off-the-road tire,Forklift tire,Light truck tire,Paddy tire,Motorcycle tire,All tire is bias tire,Nylon tire,Paddy tire's pattern is R2,Agriculture tyre pattern is R1.Our tire had passed CCC ISO certificate.
Exihibiton
Qingdao Rili tyre Has many international exihibition in the international market,If you really like our tire,We can go to your country,Of course,Welcome you visit our factory,It is just need forty-Minutes from Qingdao Airport to our factory.
| Size | PR | Tread
Pattern
Depth
(mm) | Standard
Rim | Overall Dimension of New Tyre inflated(mm) | Max Load
(kg) | Air Pressure
(kpa) |
Section Width
±3.5% | Outer Diameter
±1.0% | Double
Tyre | Single
Tyre | Double
Tyre | Single
Tyre |
| 11.2-24 | 10 | 28 | W10 | 285 | 1105 | | 1380 | | 300 |
| 9.5-24 | 8 | 27 | W8 | 240 | 1050 | | 1110 | | 280 |
| 9.5-20 | 8 | 24 | W8 | 240 | 950 | | 955 | | 280 |
| 8.30-24 | 8 | 24 | W7 | 210 | 995 | | 810 | | 240 |
| 8.3-20 | 8 | 24 | W7 | 210 | 895 | | 695 | | 240 |
| 750-20 | 10 | 24 | 5.50F | 205 | 910 | | 760 | | 210 |
| 750-16 | 10 | 23 | 5.50F | 205 | 810 | | 650 | | 210 |
| 650-16 | 14 | 17 | 5.00F | 180 | 765 | | 565 | | 250 |
| 600-16 | 6 | 23 | 4.50E | 165 | 745 | | 495 | | 250 |
| 600-16 | 6 | 13 | 4.00E | 160 | 740 | | 675 | | 450 |
| 600-14 | 6 | 23 | 4.50E | 165 | 690 | | 450 | | 250 |
| 600-12 | 6 | 22 | 4.50E | 165 | 640 | | 405 | | 250 |
| 550-16 | 10 | 9 | 4.00E | 150 | 685 | | 800 | | 500 |
| 550-16 | 10 | 12 | 4.00E | 150 | 710 | | 525 | | 370 |
| 500-16 | 10 | 130 | 655 | | 650 | | 500 | | |
| 500-15 | 6 | 10 | 4J | 140 | 665 | | 465 | | 420 |
| 500-14 | 10 | 8 | 3.00D | 130 | 620 | | 500 | | 420 |
| 500-12 | 8 | | | | | | | | |
| 500-12 | 6 | 22 | 4.00E | 145 | 590 | | 280 | | 200 |
| 450-16 | 8 | 8 | 3.00D | 120 | 655 | | 615 | | 360 |
| 450-14 | 8 | 7 | 3.00D | 122 | 606 | | 592 | | 420 |
| 400-16 | 8 | 7 | 3.00D | 110 | 640 | | 300 | | 340 |
| 400-14 | 8 | 6 | 3.00D | 110 | 590 | | 270 | | 340 |
| 400-12 | 6 | 6.5 | 3.00D | 110 | 535 | | 250 | | 340 |
| 400-8 | 6 | 8 | 3.00D | 110 | 425 | | 180 | | 340 |
| 600-14 | 8 | | | | | | | | |
| 600-12 | 10 | 16 | 4.50E | 150 | 628 | | 405 | | 250 |
| 600-12 | 6 | 30 | 4.50E | 154 | 636 | | 405 | | 250 |
| 600-12 | 6 | 22 | 4.50E | 154 | 636 | | 405 | | 250 |
| 12.4-28 | 10 | | | | | | | | |
| 9.5-24 | 10 | | | | | | | | |
| 8.3-24 | 10 | | | | | | | | |
Our agricultural tyre are hot sale to demestic and international market.Please feel free give me a inquiry if you need agricultural tire .
Our company supplies different kinds of products. High quality and favoroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
