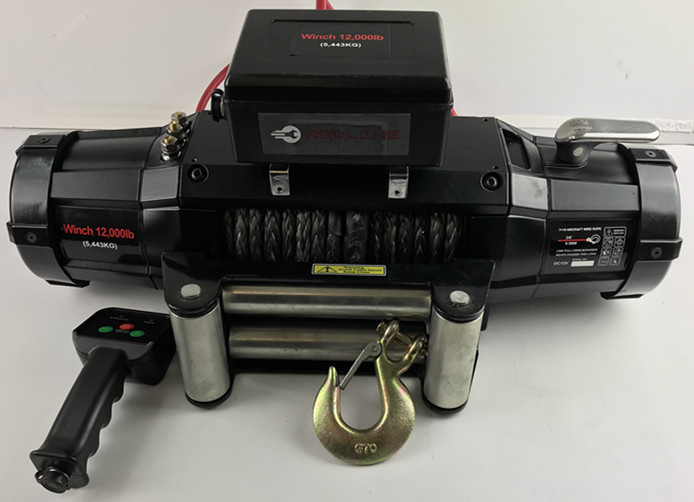

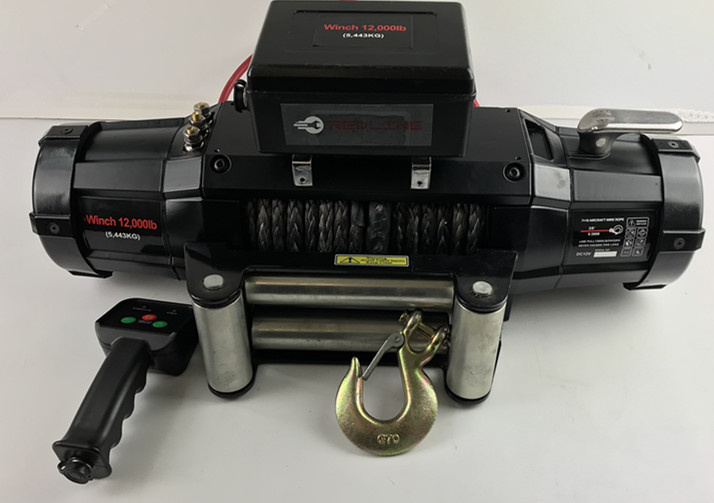

Extreme Performance 4X4 Truck Winch with 12000 Lb

Name: Extreme Performance 4X4 Truck Winch with 12000 Lb
Brand: ibuyautoparts.com
SKU: 733767082
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	US $ 235-265PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Ultimate performance winch for 4x4 off road riders .
New unique surface -look & symmetrical design ,All aluminum cover on this new winch body with all waterproof .Fast speed & high torque & big horsepower sealed series wound motor . Extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 216: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly.

High quality air-plane plugs .Both wireless and wired remote controls are available .waterproof .Two modes of controlling easily .It's worth having it for off road lovers!

12000lbs features and specifications

Single line rated pull	12000lbs(5454kgs)
Motor	6.0hp/4.5kw,series wound
Control	Remote switch
Gear train	3 stage planetary
Gear reduction ratio	216:1
Braking	Automatic load-holding brake
Drum size	Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable	3/8"(9.5mm)×85.3'(26m)
Remote control switch	Included
Extra wireless remote	Optional
Battery	Recommended:650CCA
Net weight	24.6kgs
Overall dimension (length×width×height)	23.9"×10.6" ×7.0"(607×268×179mm)
Mounting bolt pattern	10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)	Line speed ft/min(m/min)	Current (Amps)
0	905.5(5.22)	60
2000(907)	171(4.34)	115
4000(1818)	122.1(3.1)	170
6000(2727)	105.6(2.68)	215
8000(3636)	90.5(2.3)	280
10000(4545)	63(1.6)	320
12000(5454)	55(1.39)	390

Line pull and rope capacity in each layer

Layer	Rated line pull lbs(kgs)	Total rope on drum ft(M)
1	12000(5454)	16.3(5.0)
2	9210(4186)	37(11.2)
3	8030(3642)	61(18.6)
4	6894(3127)	85.3(26.0)

Prod Model:	XM-XU604
Weight:	37.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	12000lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
