Note: For furniture spray booth, there is no standard size, we can do according to your place and need. The following is only one of our model. Detailed Specifications | Item | Detailed specification |
| Inside dimension |
6900×3900×2700 mm(L×W×H) |
| Outside dimension |
7000×5350×3400 mm(L×W×H) |
| Front door |
Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, metal sheet. stronger and better sealing |
| Emergency door |
1 unit, 750×2000mm(W×H). |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support,
3 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 50 mm, width:950 mm, tongue and groove structure, 0.5mm color steel with antiflaming EPS inside. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×16W, with electronic ballasts, lighting boxes open outside, illumination≥900Lux. |
| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 2×4 KW Double-intake belt centrifugal fan, air capacity: 29000m3/h. |
Outlet:1×5.5KW Double-intake belt centrifugal fan, air capacity: 20000m3/h. |
| Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000Kcal/h. |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Powder coating filter frame. |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
power supply switch, emergency stop, hour meter, temperature limit controller. |
| Total power | 15.0 KW |
| | |
Our Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !

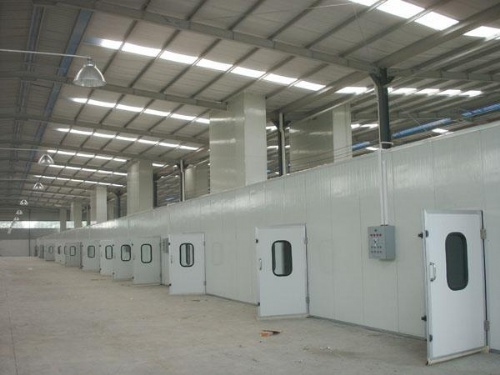

*Personalized design to meet customer various needs! ! ! Front View
Inside View

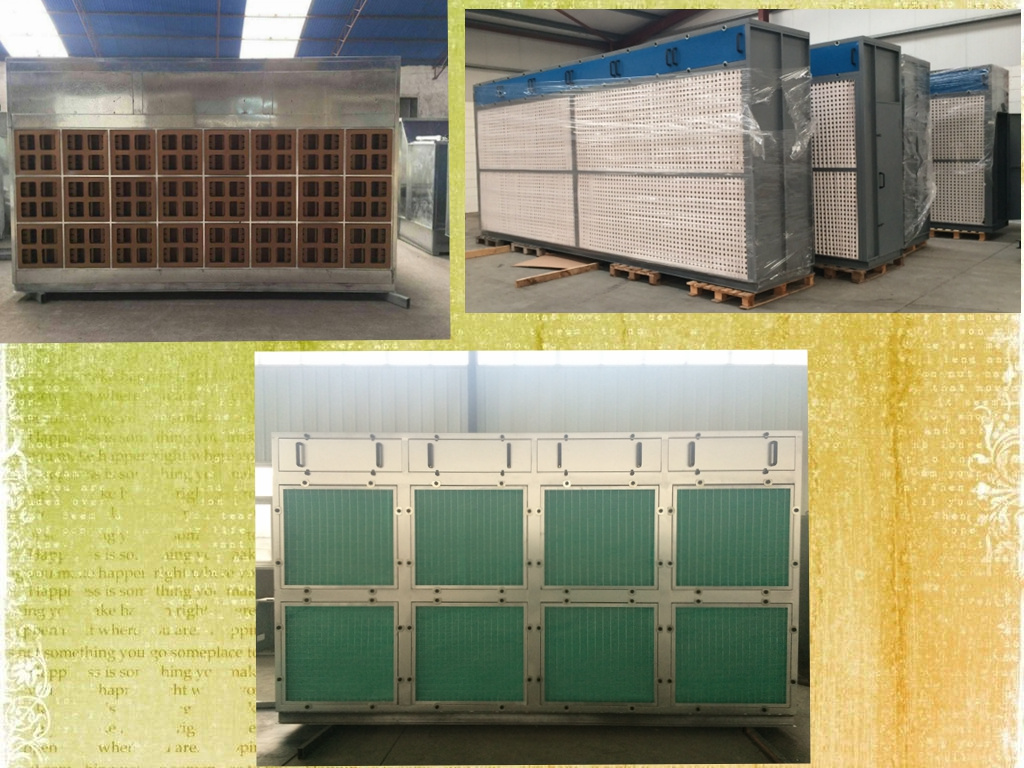

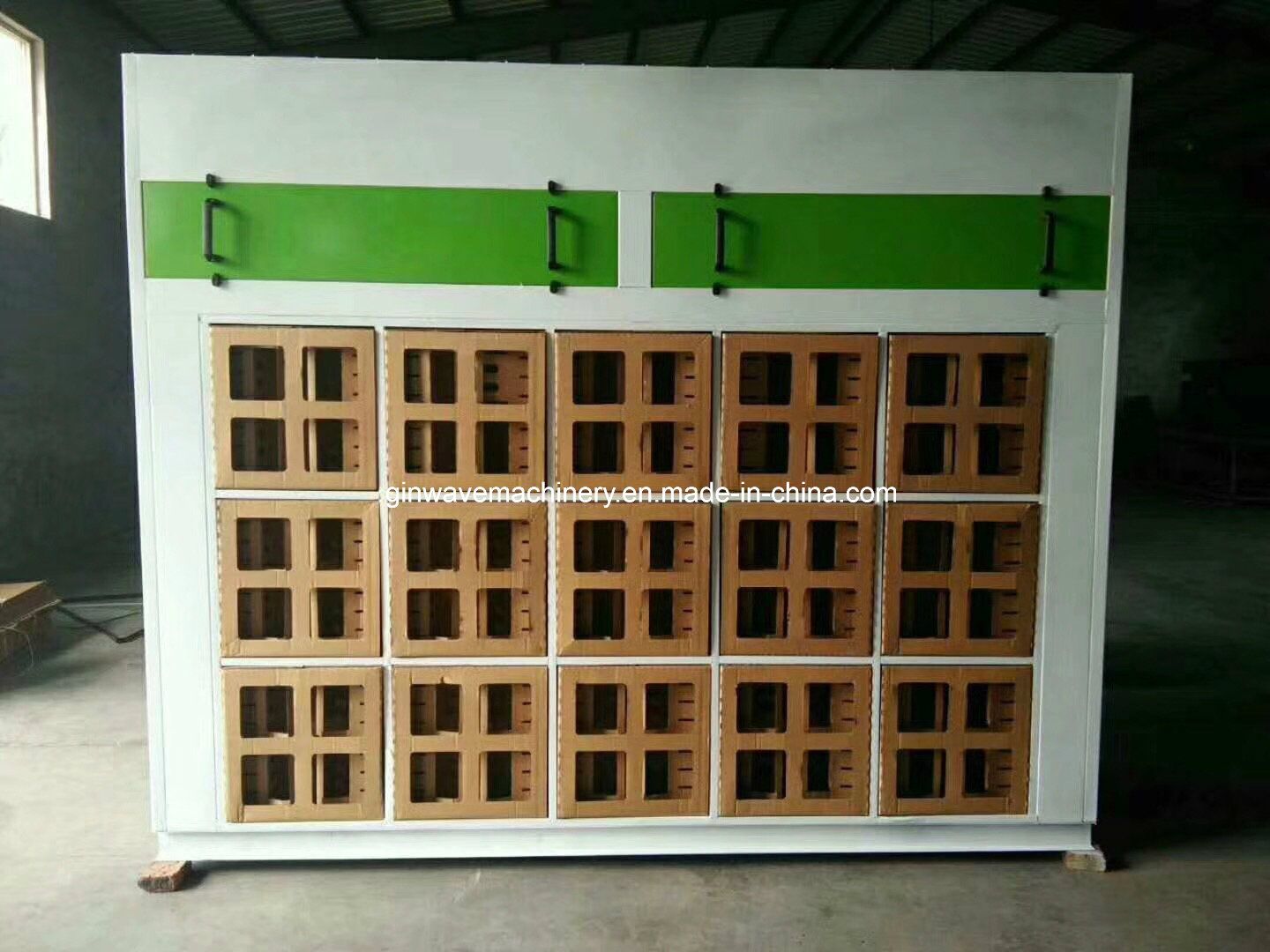

The paint mist exhausting cabinet--filters are different
Grinding Bay

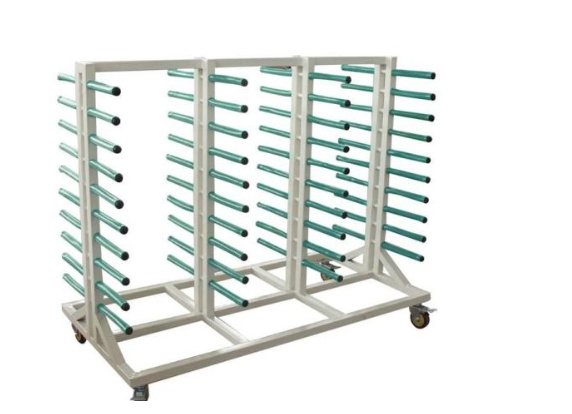

Some samll tools
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
