European Standard Auto Spray Paint Booth Maintenance Equipment
| Price: |
US $ 10000-11000/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
YFT701 |
| Total Fan Capacity: |
28000 M3/H |
| Brightness: |
>1500 Lux |
| Empty Loaded: |
+/- 0.28m/S |
| Heating Exchange Capacity: |
200kw |
| Burner Model: |
Rg5s |
| Airflow: |
Full Downdraft |
| Color: |
as Requst |
| Export Markets: |
Global |
| Inside Size: |
7000 X 4000 X 2800 mm |
| Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
Product Description

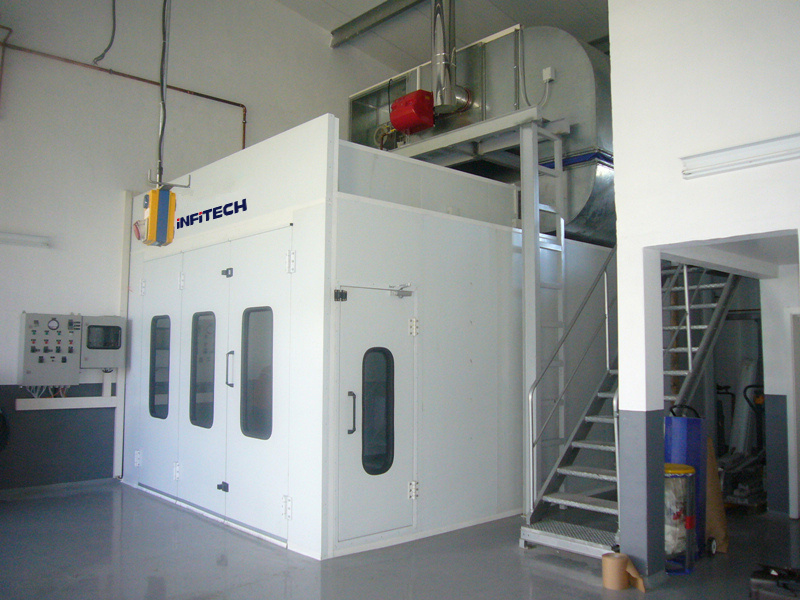

European Standard Auto Spray Paint Booth
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter: | Airflow | Internal Size(mm) | External Size(mm) | Heating Modes | Inlet/Exhaust fan | LED Ceiling Lights | LED Side lights | Empty Loaded
Air Speed |
| Full downdraft | 7000X4000X2800 | 7110x5760x3810 | Oil/Gas | 2X7.5KW | 8 set/4X24W | 8 set/2X24W | 0.28 m/s |
| 8000X4000X2800 | 8110X5760X3810 | Oil/Gas | 2X7.5KW | 8 set/4X24W | 10 set/2X24W | 0.24m/s |
Airflow
1. Full downdraft for spray .
2.Innovative high efficient big impeller fan ,sparkproof design (SIEMENS).
Entrance door
1.2+1structure, 3 observation windows with armoured glass(WXH:3200X2700mm).
2.Safe door,observation windows with armoured glass,emergencylamp,door closer .
Cabin structure
1.Full grids, 650kg/ wheel
2.heat-resistant rock wood panel,base plate thickness:0.426mm
3.600mmheight plenum chamber /350mm height basement
4.European bulge roof design
Heating system
1.200KW high efficient , energy-saving heating exchanger
2.Double protection with over temperature Control system
1.Double protection with over temperature .
2.PLC intelligent controller.
3.Motor-driven pressure balance valve
4.Self troubleshooting
Component pictures
| Inlet motor | Exhaust motor | Inlet fan | Exhaust fan | Air volume | Drying system | Frequency Power Control | Air hose |
| 7.5KW SIEMENS | 7.5KW SIEMENS | CRF backward centrifugal fan, direct linkage | 28000m³/h | 200KW | / | Inlet 6 meters from the ground
Exhaust 10 meters off the ground |

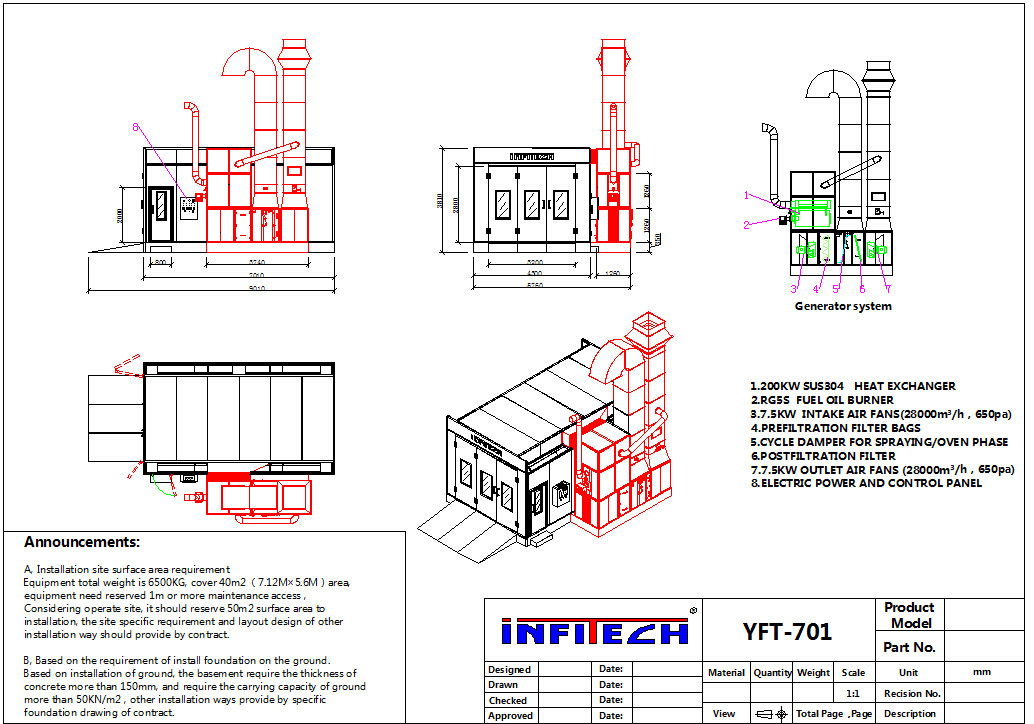

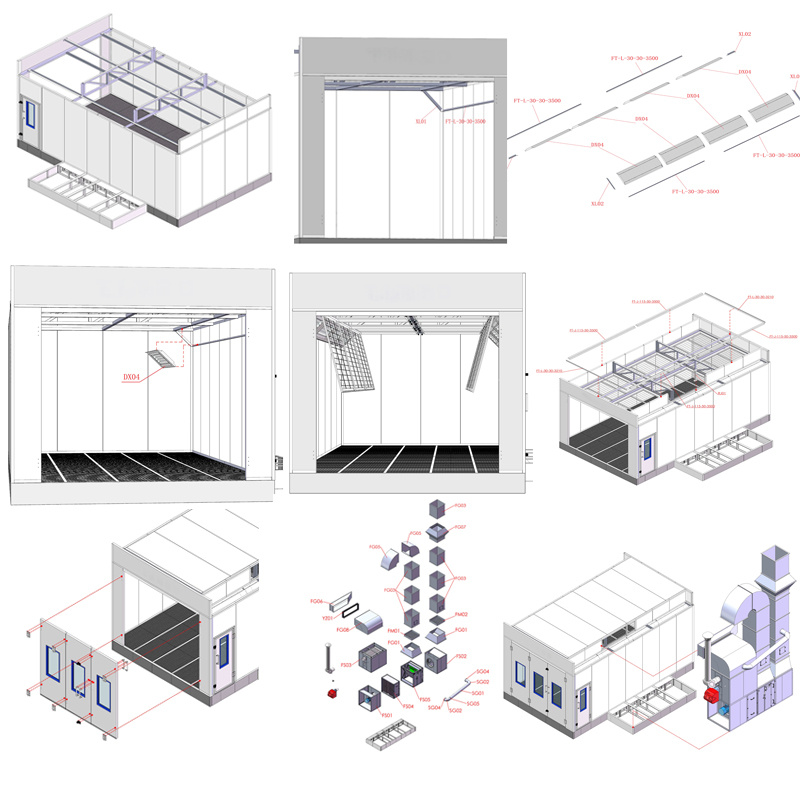

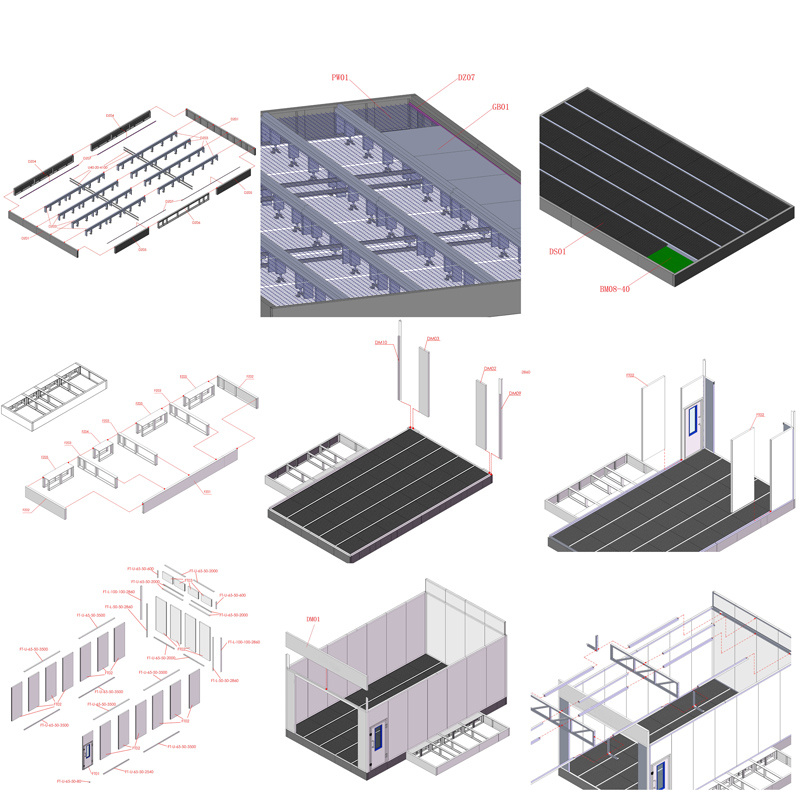

Blower fan is in line with non-sparking design, and perfectly realized the EN 13355-2004 requirements to the fan. Fan motor and the line and the fluid channel is completely isolated, which is necessary condition for the EN 13355-2004 to the fan, and also to ensure the smallest volume under the flow conditions and beautiful appearance. It is outstanding in the performance of similar products, our design can overcome the resistance of 600Pa in the performance criteria. Adopting ventilation door of cylinder drive and spray - paint conversion damper, more quickly, more accurately, we provide institution of position confirmed for an option, and it can accurately identify the location of the damper whether meet the working conditions.Installation profile

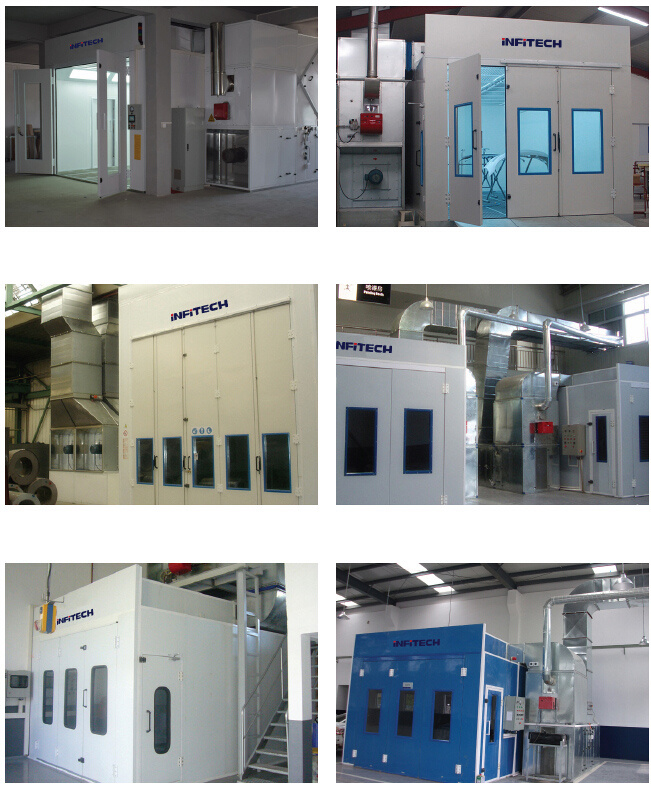

Sussessful Story
Service commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and testing files.
2. Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then to package and delivery.
Product price commitment:
1. Use famous brand raw material to ensure high reliability and advancement of product.
2. Under the equal race condition, our company sincerely provides the most favorable price and won't be at the cost of reducing product performance and changing product components.
Are buying
Delivery time commitment:
Product delivery time: comply with customer's requirement. If the goods need to be finished in advance, we will arrange production and erection to satisfy the customers.
After purchase
After purchase service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: service quality to win customer satisfaction.
3. Service principle: the warranty is 12 months, the supplier freely replaces damaged parts caused by quality reason within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment damages caused by human factors, the supplier repairs or provides spare parts at cost. Our service people shall provide technical support in 24 hours as long as receive your inform.
