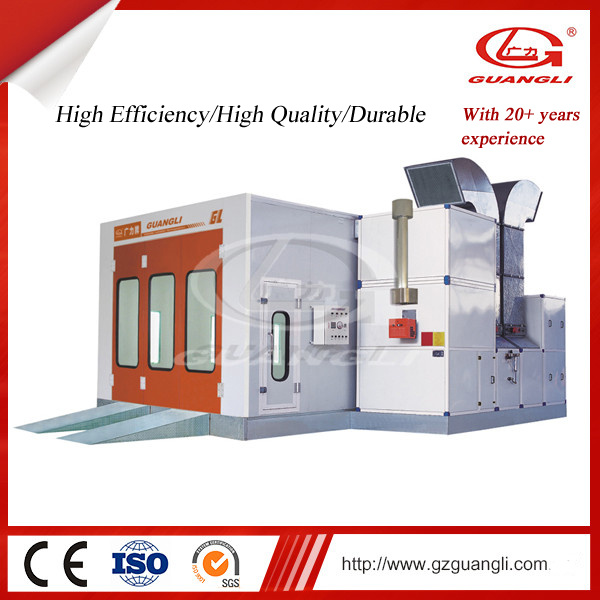

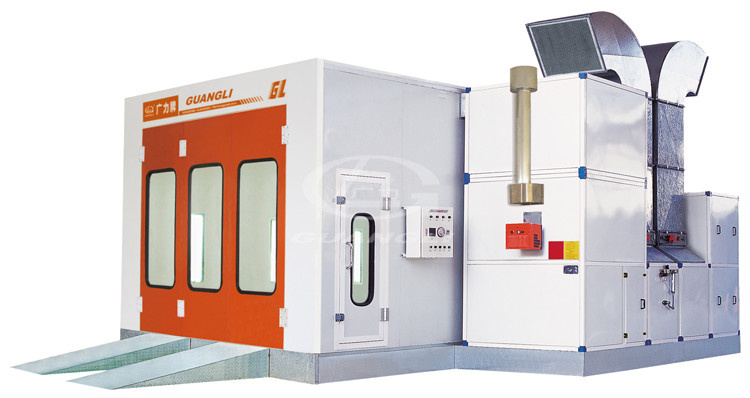

Environment Protection Durable Auto Maintenance Spraying Booth (GL4000-A1)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
GL4000-A1 Spray Booth Description--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Lengthened room as optional :out side :7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. side light:8sets,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying--Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional. | Model | GL4000-A1 |
| External size (m) | 7.0x5.6x3.5 |
| Internal size (m) | 6.9x3.9x2.7 |
| Entrance width(m) | 3.0 |
| Entrance height(m) | 2.66 |
| Fan capacity( m 3 /h ) | 30000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature(ºC) | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 25 |
| Water-based Paint Device | As option |
| Suitable Automobile Type | Saloon Car |
Guangli Spray Booth Show

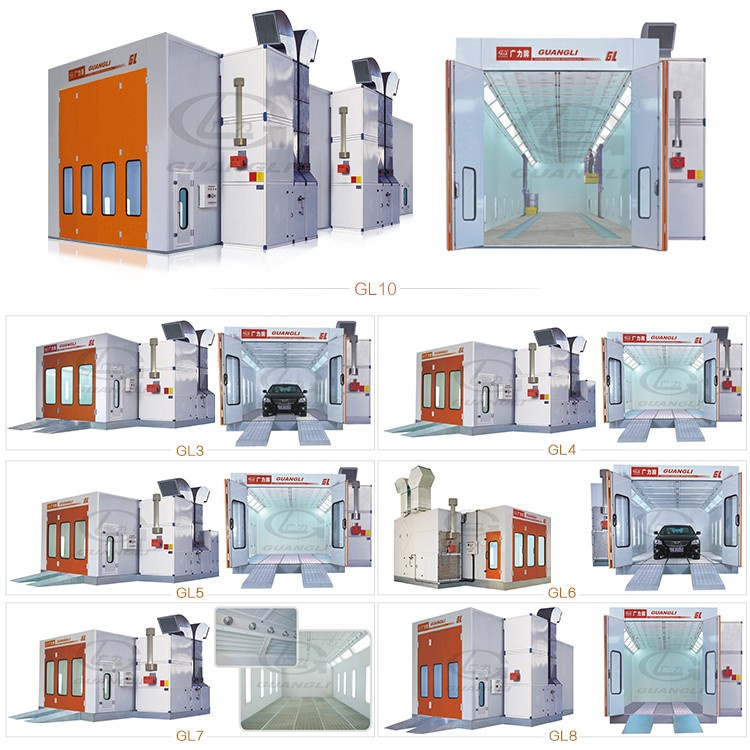

Guangli Spray Booth Series
EquipmentWe have the mostadvanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.

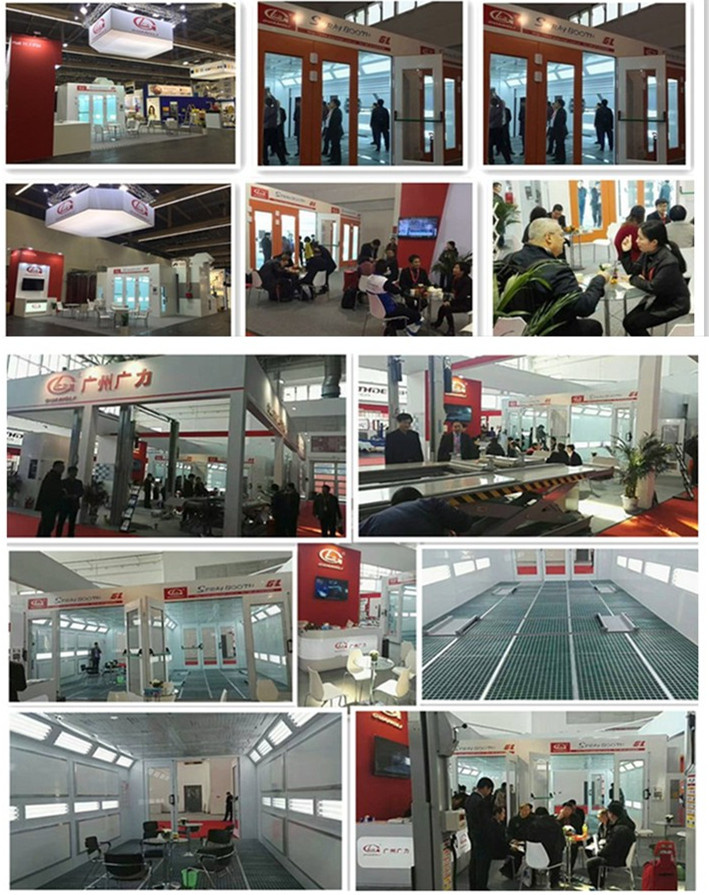

Exhibitions
Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency. FAQ1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.Warmly welcome feel free to contact:
Sunnie Di
Tel:+86-20-86378972
Website:www.gzguangli.com
| Prod Model: |
GL4000-A1 |
| Door Width(M): |
3.0 |
| Door Height(M): |
2.66 |
| Air Flow (M3/H): |
30000 |
| Lighting System: |
Upper Light + Side Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Vehical Suited: |
Saloon Car |
| Warranty: |
Yes |
| Heating System: |
Riello Brand Diesel Burner/Gas Burber |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
