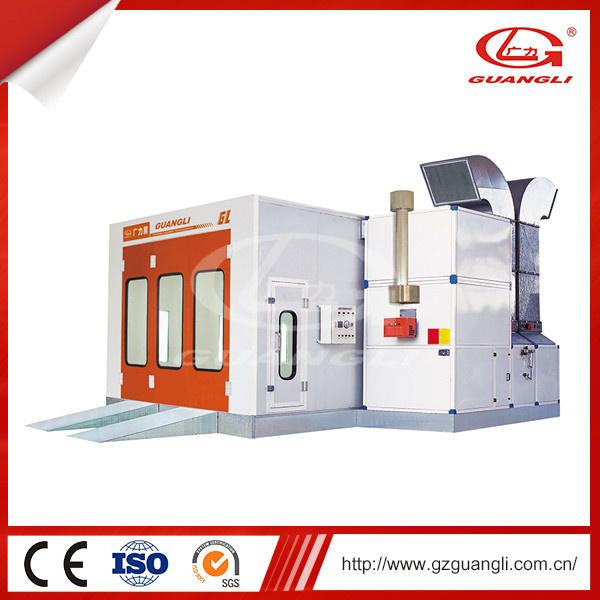

England Popular Water Soluble Garage Equipment Spray Booth (GL4000-A3)
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
Description Model | GL4000-A3 |
External size (m) | 7.0x5.6x3.5 |
Internal size (m) | 6.9x3.9x2.7 |
Entrance Width(M) | 3.0 |
Entrance Height(M) | 2.66 |
Fan capacity( m 3 /h ) | 30000 |
Air velocity (m/s) | 0.3-0.5 |
Max Drying Temperature | 60-80 |
Oil consumption (L/unit) | 6-8 |
Power (kw) | 26 |
Suitable Automobile Type | Saloon Car |
--Wall panel :sandwich style,δ=50mm,rock wool available as required.
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--Water soluable paint with hot-air acceleration system: 1 set
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust /intake damper,electrical VCD as optional. One pressure meter.
--spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello /RG5S burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking, phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.

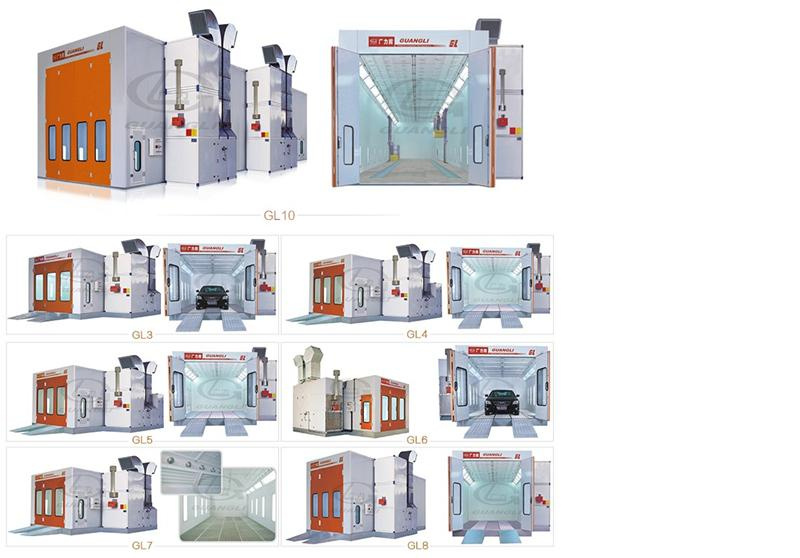

--Constant temperature spraying.Other product series
EquipmentExhibitionService after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency. FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends

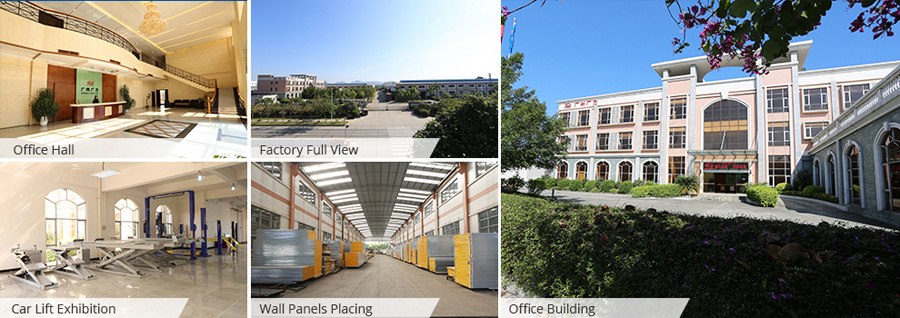

with them, no matter where they come from.Factory Show
Prod Model: |
GL4000-A3 |
Door Width(M): |
3.0 |
Door Height(M): |
2.66 |
Air Flow (M3/H): |
30000 |
Control Panel: |
Engine Y/△ Start |
Lighting System: |
Upper Light and Side Light |
Filters: |
High Efficiency Filter |
Color: |
Red Blue Orange White |
Usage: |
Car Painting Baking |
Vehical Suited: |
Saloon Car |
Warranty: |
Yes |
Certification: |
GS |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Painting Spray Booth |
Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
