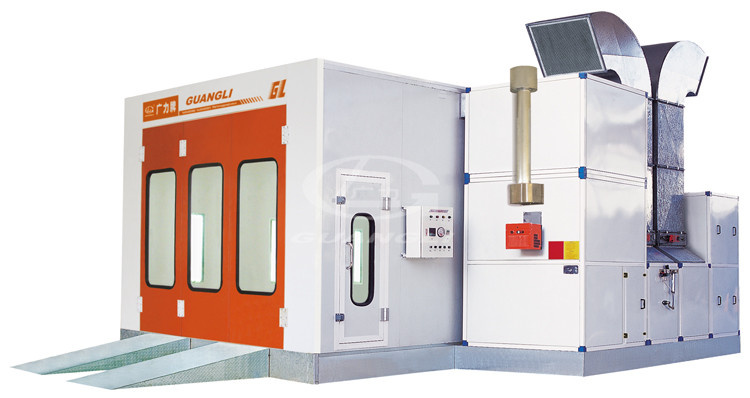

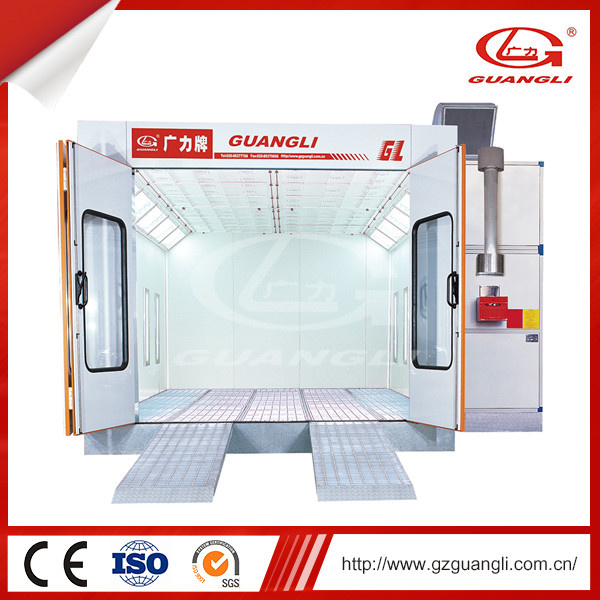

Engineered and Professional Full-down draft Car Spray Paint Booth (GL4000-A1)
Product Description--Wall panel: Sandwich style, 50mm, polystyrene. Rock wool available as required.
--Basement: Steel structure, full grids, ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
--Lengthen room as optional: Outside size: 7.6*5.6*3.5(m) inside size: 7.5*3.9*2.7(m)
--
One 11kw intake fan and one 11kw exhaust fan.--4m straight exhaust ducts, one 90 bend, and one 60 bend. 5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: Stainless steel. Riello G20 burner.
--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of outlet filter.

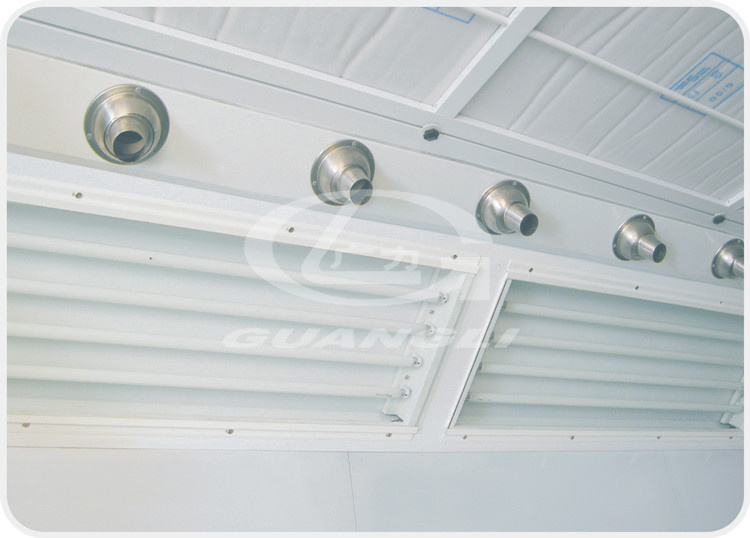

--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.
--Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine y start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
--Environmental filter: The equipment can be adopted m style activated carbon or drawer style activated carbon.
| Model | GL4000-A1 |
| External size (m)(LxWxH) | 7.0x5.6x3.5 |
| Internal size (m)(LxWxH) | 6.9x3.9x2.7 |
| Entrance Width(m) | 3.0 |
| Entrance Height(m) | 2.66 |
| Fan capacity( m3 /h ) | 30000 |
| Air velocity (m/s) | 0.3-0.5 |
| Air ventilation (times/h) | 332 |
| Drying Temperature | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Water Based Device | As optional |
| Power (kw) | 25 |
| Suitable Automobile Type | Car |

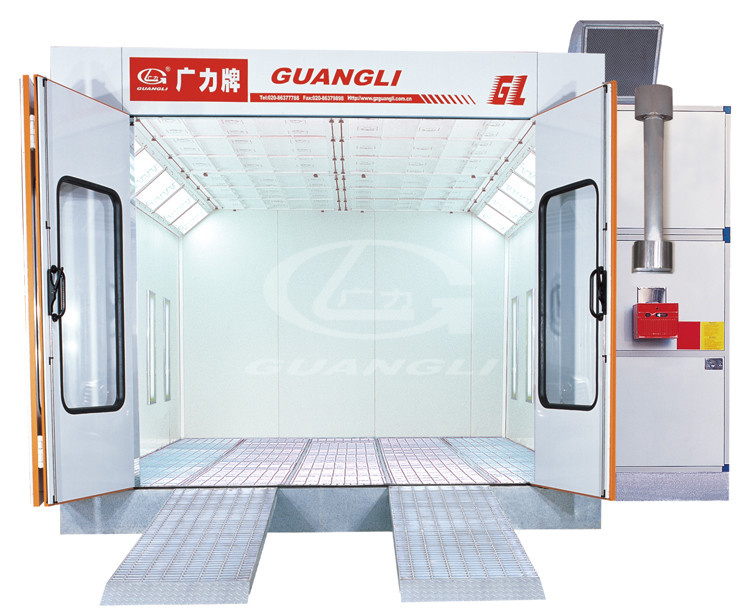

GuangLi Spray Booth Show

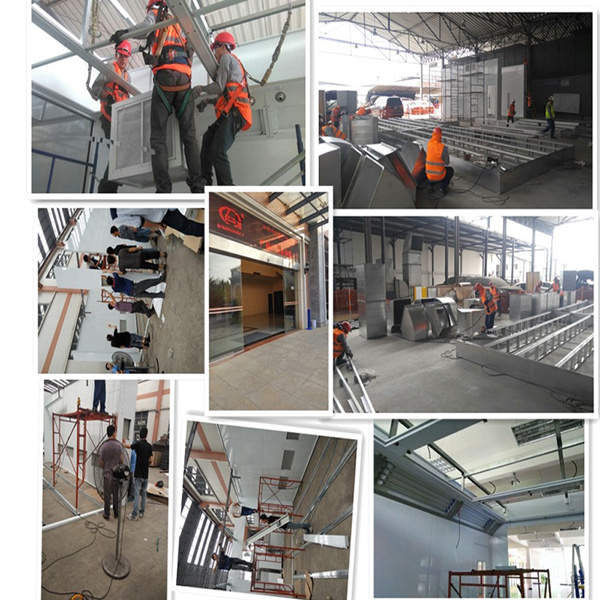

Real Case
Why Choose Us
1. More than 20-year experience in Spray booth and car lift field. 2. Superb unique technology and Automatic production line. 3. Large order can be placed. 4. Advanced equipment and exquisite workmanship. 5. Durable and reliable. 6. Excellent pre-sales and after-sales service. Company ProfileGZ GUANGLI EFE Co., Ltd is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

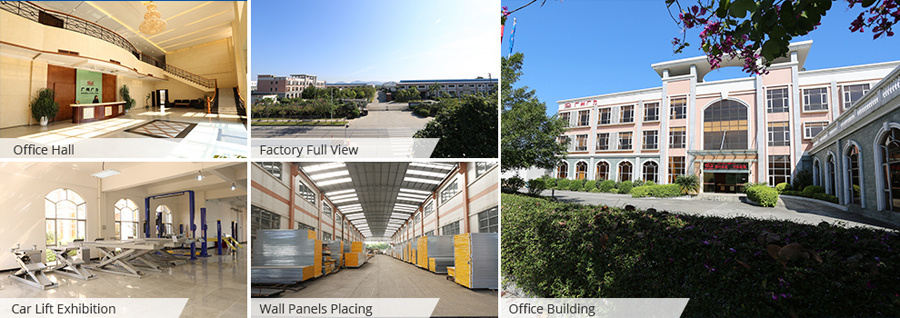

GZ GUANGLI EFE Co., Ltd is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience. Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58, 000M2 of grounding area and 36, 000M2 of building area. All our Spray booth, painting booths and car lifts have passed the CE certificate, CCS certificate and our company has passed ISO9001: 2000. Our products have been used in many car manufacturers' and thought highly of: Guangzhou Honda,
Dongfeng Honda, FAW Toyota, Dongfeng Peugeot, Dongfeng Nissan, BMW South China etc.

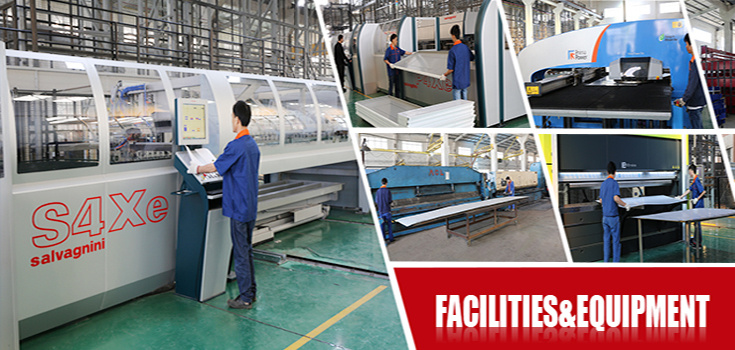

EquipmentWe adopted the most advanced plate flexible production line imported from Italy, which take the absolutly advantages in the Electromechanicl field, can be called as the pioneer in the sheet metal industrial.
FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own export department.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
3. Q: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
4. Q: Can we customize our product?
A: Yes, you can. Customized material and standard are acceptable. We can provide
Different standards according to your market and favor.
5. Q: What's the MOQ for each items?
A: We accept one piece/set each time.
6. Q: What's the delivery time?
A: If the product you ordered is our standard configurations, it's 7 workdays. Warmly welcome to contact
