| Prod Model: |
GW-S03 |
| Iinside Dimension: |
6900X3900X2650mm(Lxwxh) |
| Outside Dimension: |
7000X4000X3400 mm(Lxwxh) |
| Front Door: |
3 Folds, 3000X2600mm, Wxh |
| Emergency Door: |
750X2000mm(Wxh) |
| Wall Panel: |
50mm Thick EPS with Double Sides 0.5mm Color Steel |
| Lighting System: |
Famous Brand LED Lights |
| Inlet Fan: |
2 Sets 3 Kw Centrifugal Fans for Supply |
| Heating System: |
Standard 3kw X 8 Groups of Fixed Short Infrared La |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Ginwave Forest |
Product Description
Detailed Specifications :| Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 31kw |
| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 3kw YDW4.5L centrifugal fans for supplying, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with reinforcing ribs. |
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. |
| Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
| Optional | Wall Panel | 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs |
| | Side Lights | 20pcsx30w in vertically embedded into the wall. The light box is with powder coating. |
| | Environmental Cabin | 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure |
Our Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! ! Front View
Inside View

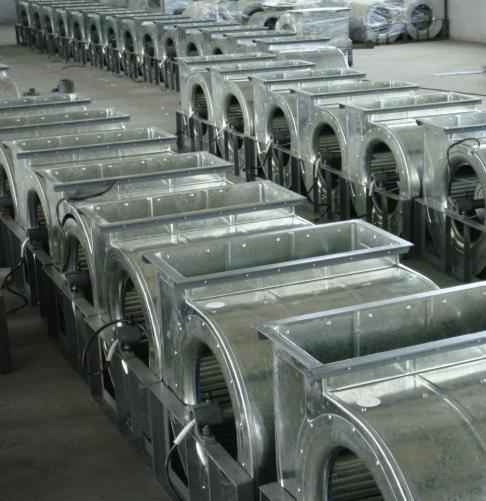

The fan

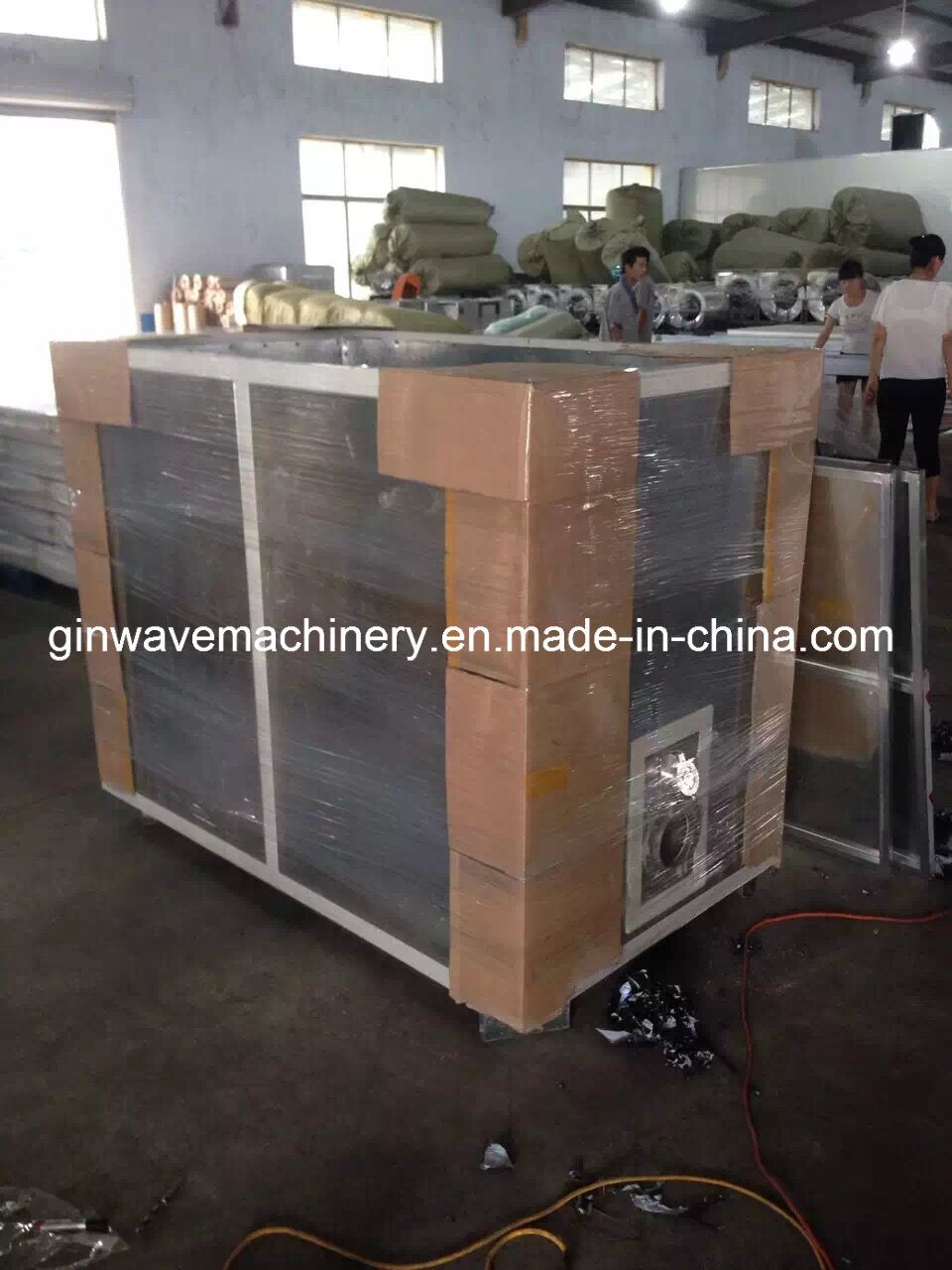

Package and Loading

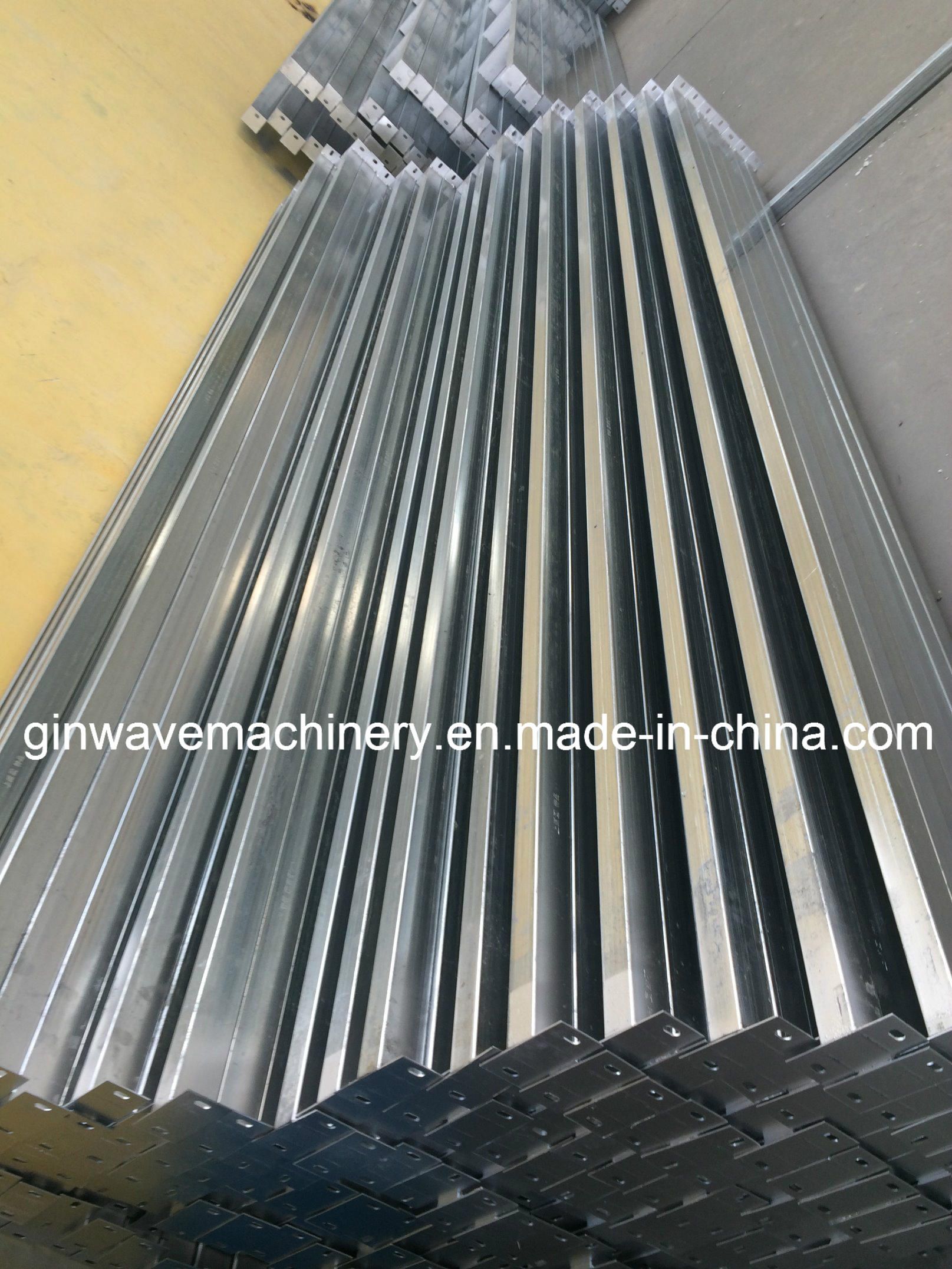

Workshop and enough stock
Detailed Product Description
Car Maintenance Diesel Burner Water paint Drying Room, Water Spray Booth
Customized Car Painting And Baking Water Spray Booth, Waterborn Paint Drying Room
Stainless Steel Heating RIELLO Burner Car Paint Baking, Water Spray Booth, Station
Emergency Stop Car Waterborn paint and drying Room, Water Spray Booth
Auto paint drying Station, Water Spray Booth with Stainless Steel Heating Exchange
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
