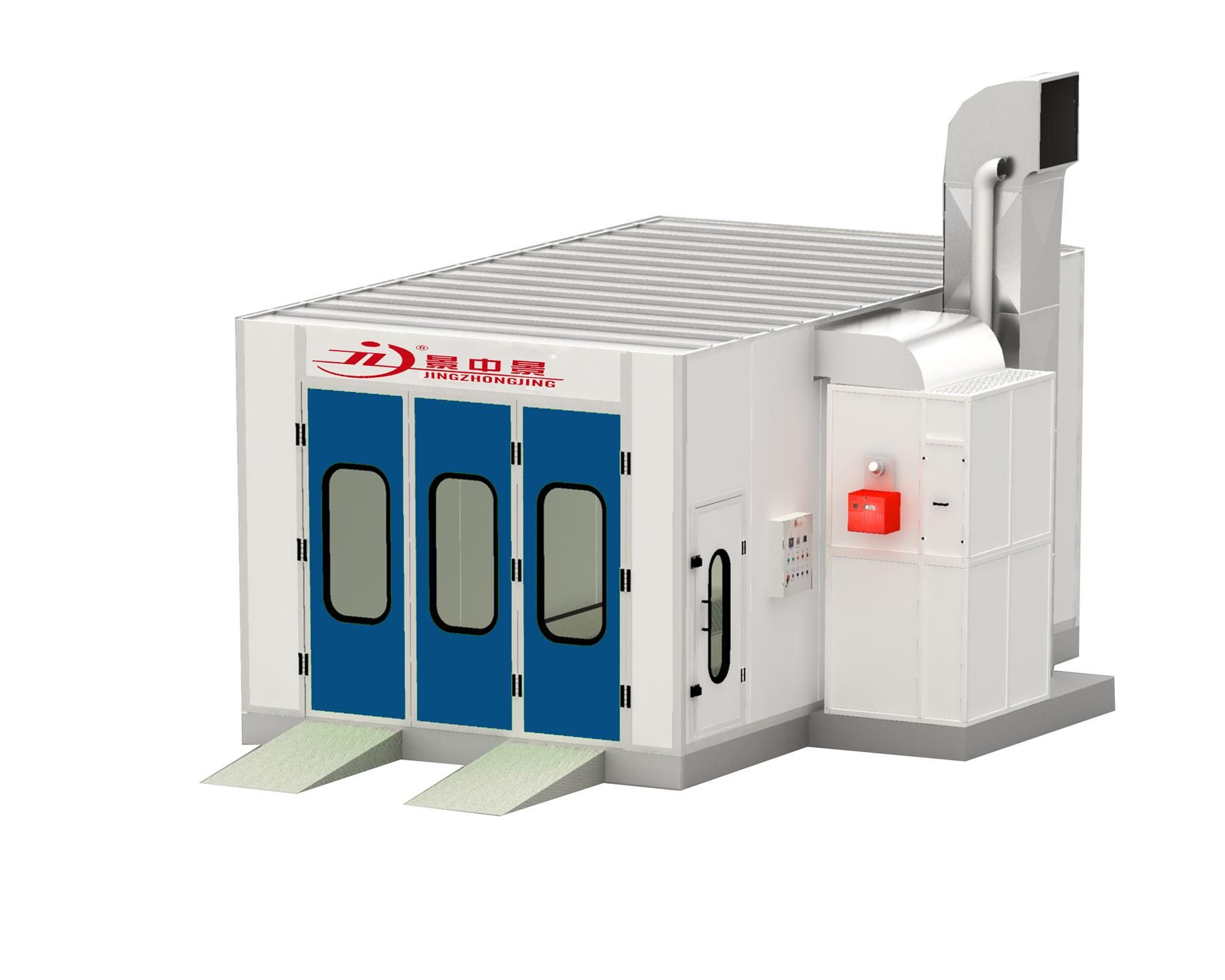

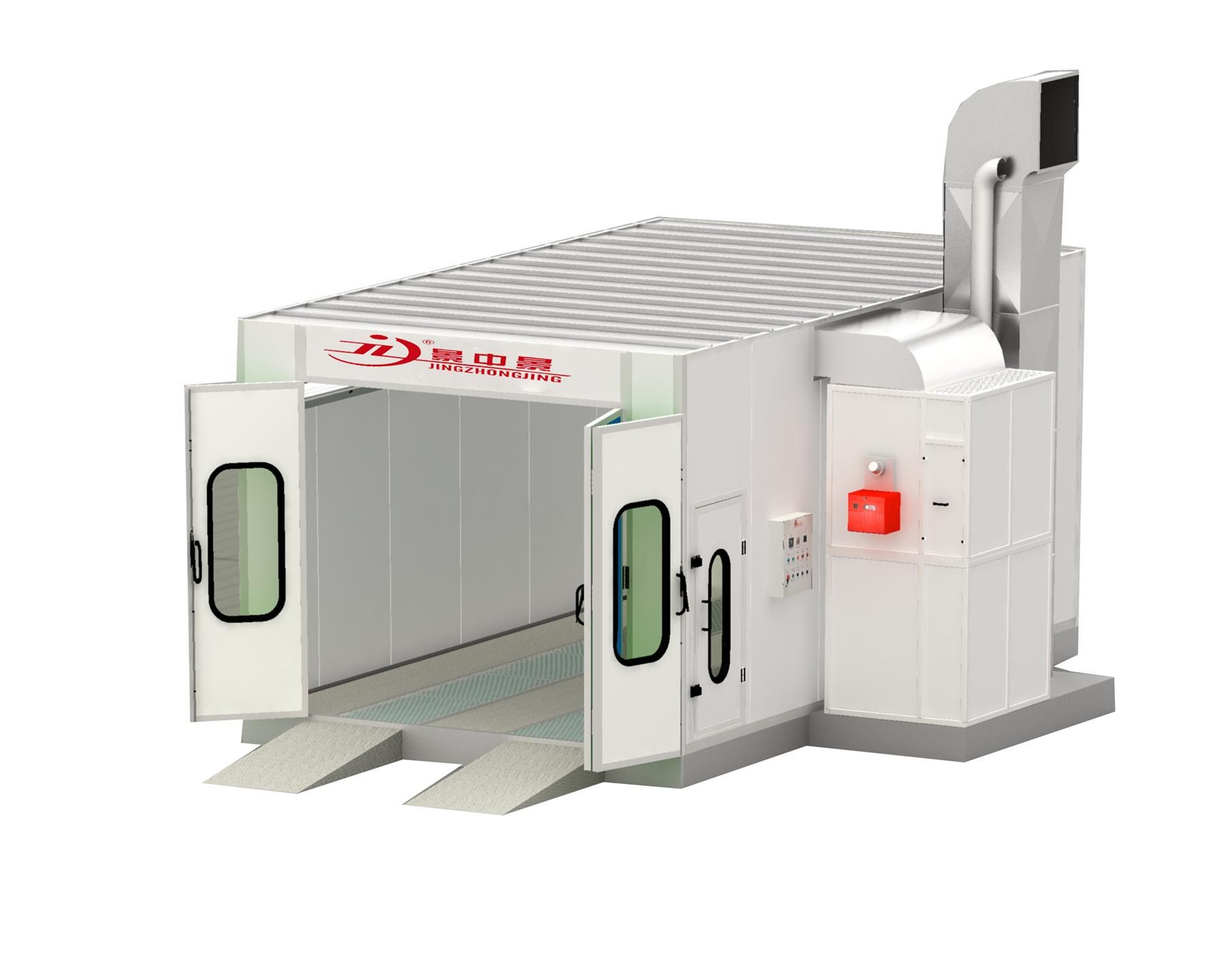

Economical Spray Booth Jzj-9200 From China

Name: Economical Spray Booth Jzj-9200 From China
Brand: ibuyautoparts.com
SKU: 752976715
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 6500/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-9200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO9001
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spraying and Baking Spray Booth
Brand:	Jzj

Product Description

JZJ spray booth supply 24months quality warranty spray booth, please feel free to contact us for more informaiton.

Outside Dimension (mm)	700655563450(LWH)	Inside Dimension(mm)	690040002650(LWH)
Front Door(mm)	30002600(WH)	Service door (mm)	1800650(WH)
Total Power	10KW
Cabin system	Wall panel	50mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Basement	300mm depth, two rows grids and three rows checkered plates.
	Ceiling panel	0.8mm Galvanized steel sheet.
	Ramps	Two pieces 2000*600mm ramps
	Glass	4mm safety tempered glass
	Windows	Rubber sealed glass window
Air Make-up System	Air Inlet fan system	2*4kw centrifugal fan
	Exhausted fan system	For option
	Ai capacity	24000m³/h
	Air Flowing speed	0.25m/s in empty booth
	Exhausted ducting	4meters straight ducting, one 90°elbow and one 30°elbow.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	fiber glass filter / G3 grade
	Exhausted fan Filters	fiber glass filter and active carbon
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	RielloG20 diesel oil burner(gas burner for option)
	Heating productivity	180000Kcal/h
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	3 meters stainless ducting and one chimney elbow
	Max heating temperature	80ºC
	fuel consumption	6-8L/vehicle
Lighting System	Ceiling lights	8 Units, each 4 * 36W Philips lamps. Total 1152 W
	Side lights	For option
	Illumination	900LUX
Controlling system	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
