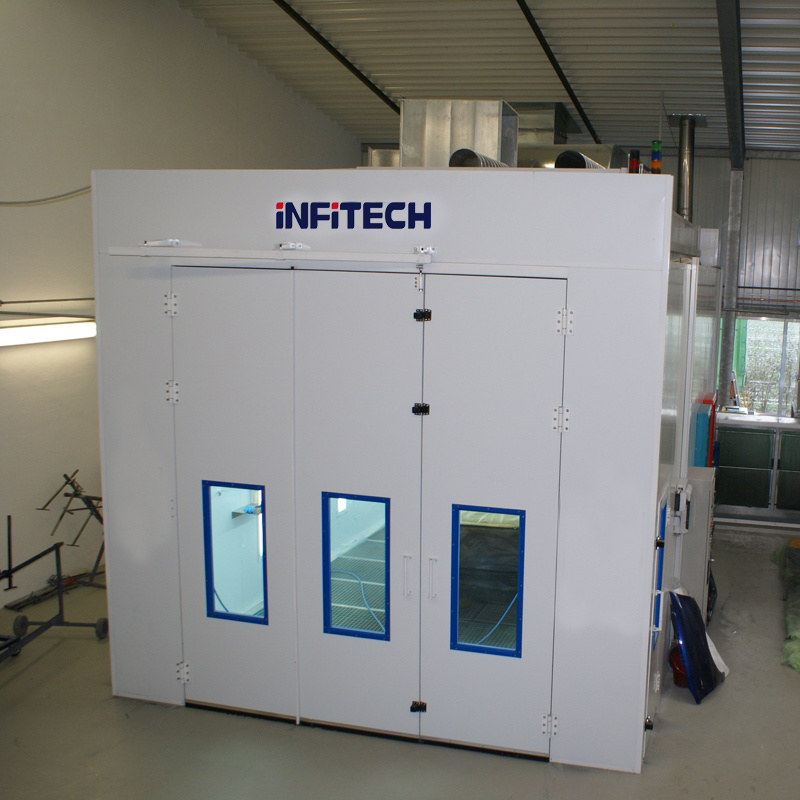

Downdraft Car Spray Printing Room
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
Environment Friendly Bus Spray Booth
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:
| Model | Customized |
| Booth Dimensions | |
| -Internal Size(L×B×H) | 10000×5000×5000mm |
| -External Size(L×B×H) | 11800×5150×5860mm |
| Foundation and Floor | |
-Loading Capacity
Of Galvanized Grating | 900KG/ wheel |
| - Surface Area | 12M²(1 row galvanized grid) |
| - Metal Basement | 1200mm Height(need to dig foundation ) |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Wall Panel | Double Construction with Insulations rock wool 75mm |
| - Roof Panel | Double Construction with Insulations rock wool 50mm |
| Rolling shutter door | 4300×4800 mm (B×H) |
| Lighting | |
| - Ceiling Lightings | 14Units, each 4×36 W, Total 2016W |
| - Side Lightings | 16 Units, each 2×36 W, Total 1152W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Prefilters | Fibreglass, Paint-Stop-Filters
Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fibreglass, Paint-Stop-Filters |
| Ventilation System | |
| -Direct Drive Motor (Fresh Air) | 11KW,970RPM,380V, 50HZ Siemens |
| -Direct Drive Motor (Exhaust Air) | 11KW,970RPM,380V,50HZ Siemens |
| - Fan Capacity | 35.000m³/h |
| - Air Flow Speed | +/- 0.20 m/s in an empty booth |
| Hot Water Heating System | |
| - Hot Water Heating Exchanger | 200KW |
| Gas Heating System | |
| - Heating Exchanger | 232KW(260.000Kcal/H) |
| -Burner Model | RIELLO RS5 diesel burner |
| -Max.Drying Temperature | 80 °C |
| - Heating time | 5-10 min (from 20 to 60°С) by Drying Phase |
| -Heating Type (optional) | Direct Burner |
| Control Board | |
| -Control system | Standard control delta depressurization start system, EN60204-1-2006 |
| -Function | Painting, baking, warm painting, emergency stop switch |
| -PLC | Yes |
| -Inverter control | Optional |
| -Import element | Master device import element |
| -Overpressure Manometer | Yes |
| - Alarm equipment | Yes |

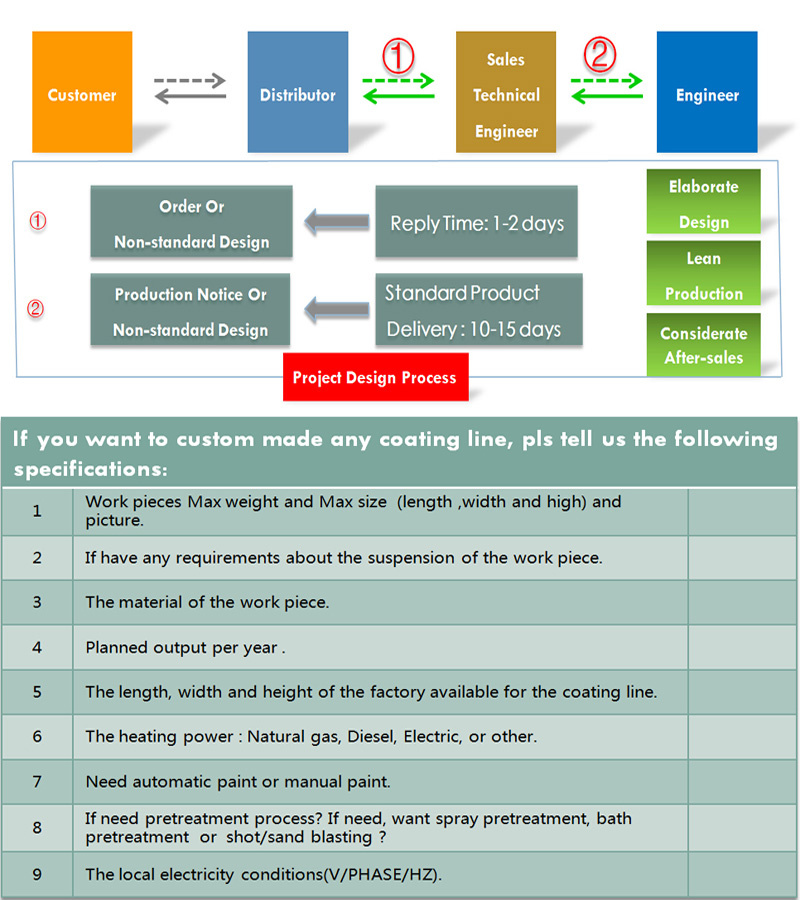

Project Design Process
Successful stories
Company Information
If you wish to discuss any aspect of your project
...Please feel free to contact us..
Thank you for your viewing !
| Prod Model: |
Customized |
| Hot Water Heating: |
200kw |
| Gas Heating Exchange Capacity: |
232kw |
| Total Fan Capacity: |
35000m3/H |
| Brightness: |
>1200 Lux |
| Empty Loaded: |
+/- 0.20m |
| Service Time: |
Lifelong Maintenance |
| Motor Brand: |
Siemens |
| Air Exhaust: |
Optional |
| Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
| Warranty Time: |
2 Year |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Heating Mode: |
Hot Water Heating |
