Double Level Four Post Hydraulic Car Parking Lift



 Double Level Four Post Hydraulic Car Parking Lift

Load capacity: 3000kg
Platform size: 5.5*2.5m
Lifting height: 3000mm
Hydraulic drive system


Main Features:

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5) Control system adopt elevator control system, very convenient and safety.
6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.


Parameters:


Model	SJG3-3
Lifting capacity	3000kg
Lifting height	3000mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V  50HZ/60HZ
Speed	100mm/s
Weight	2950KG

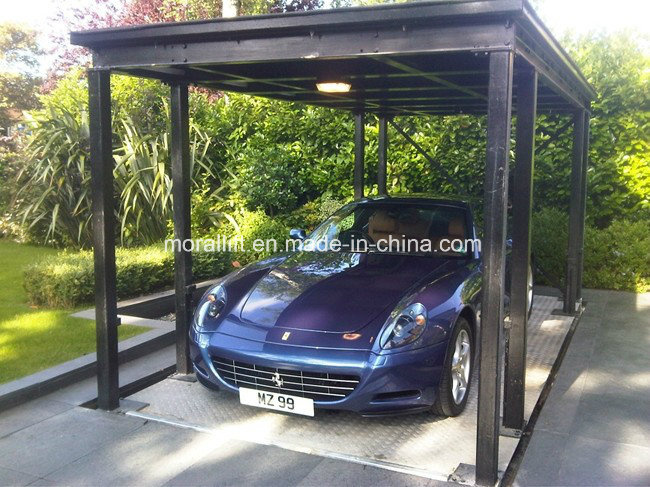

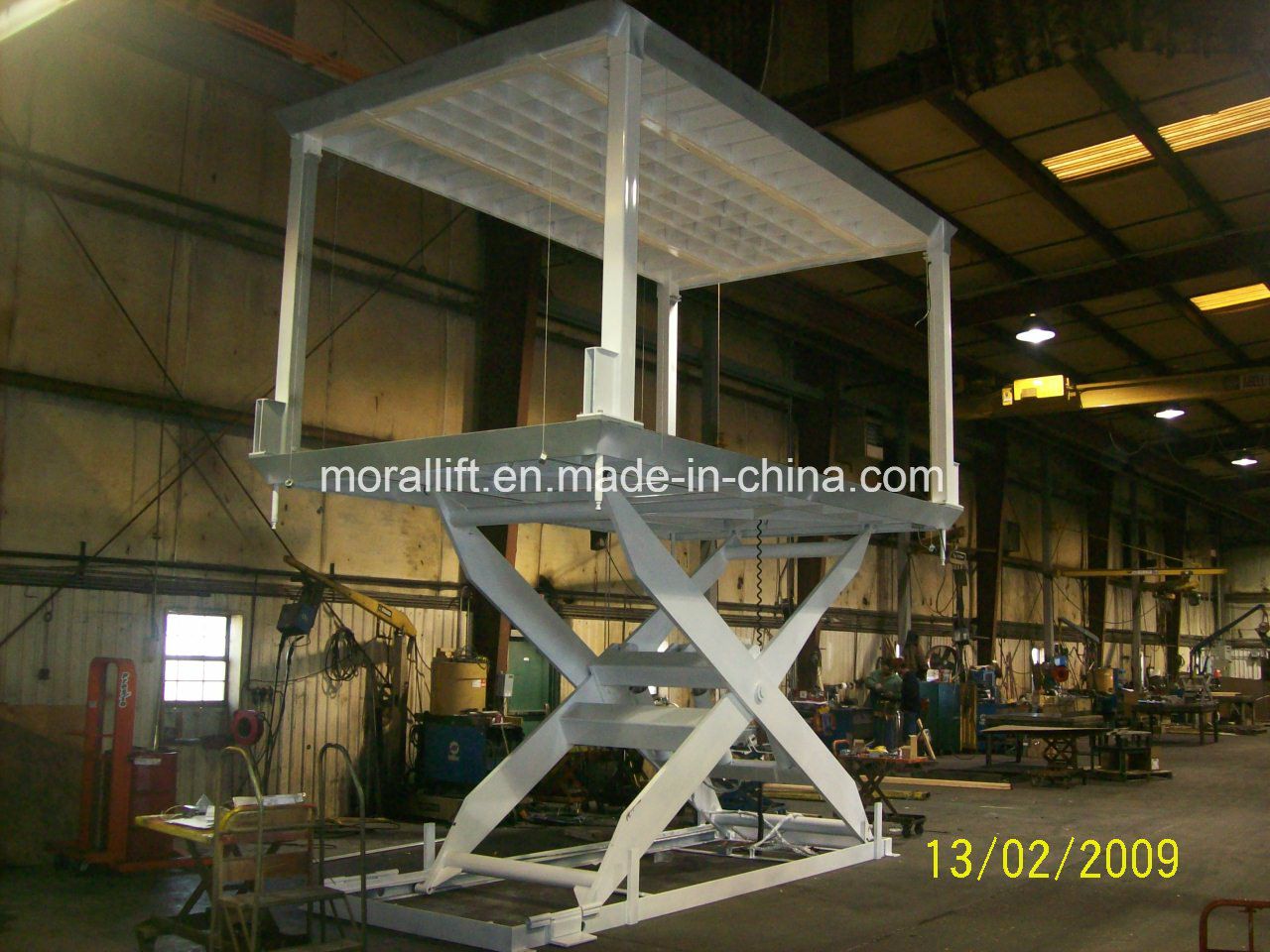

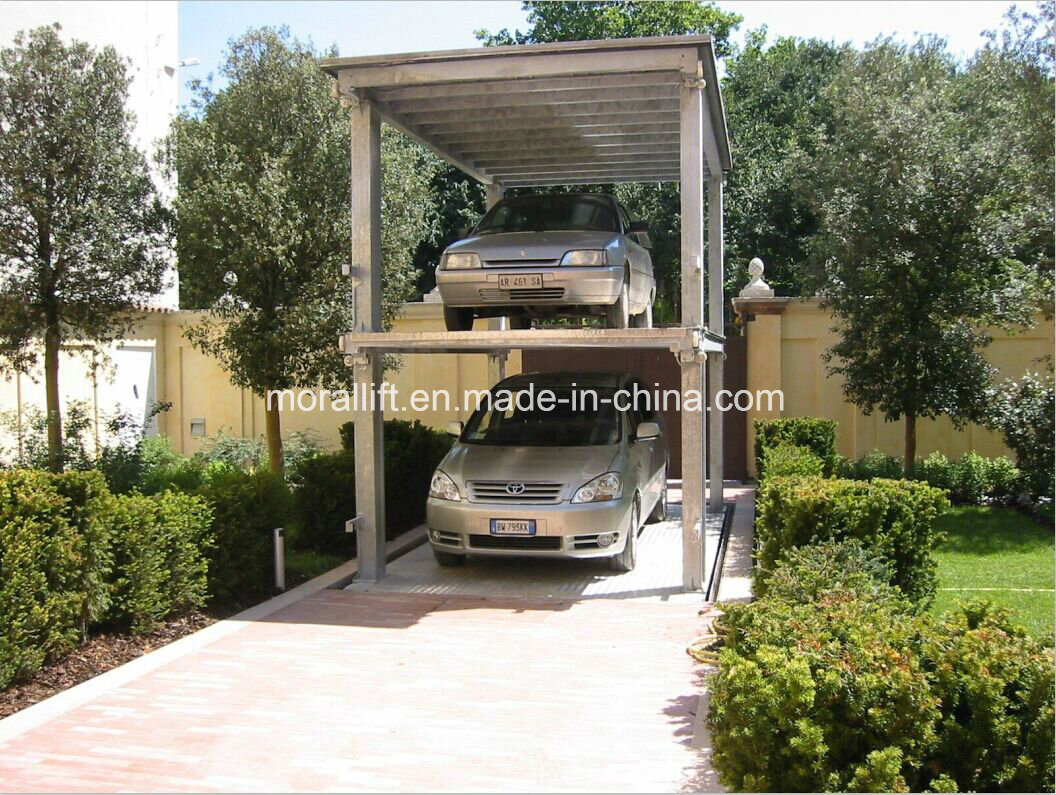

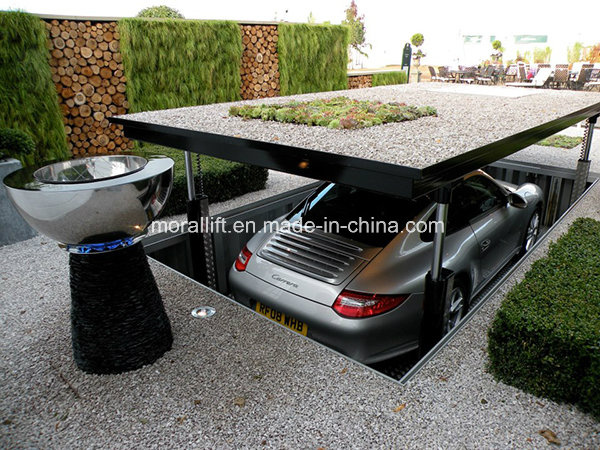

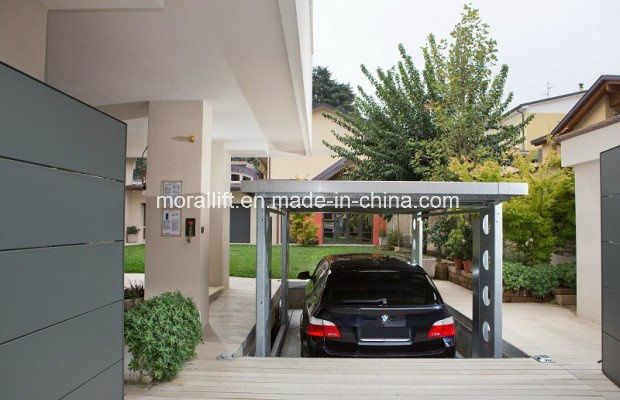

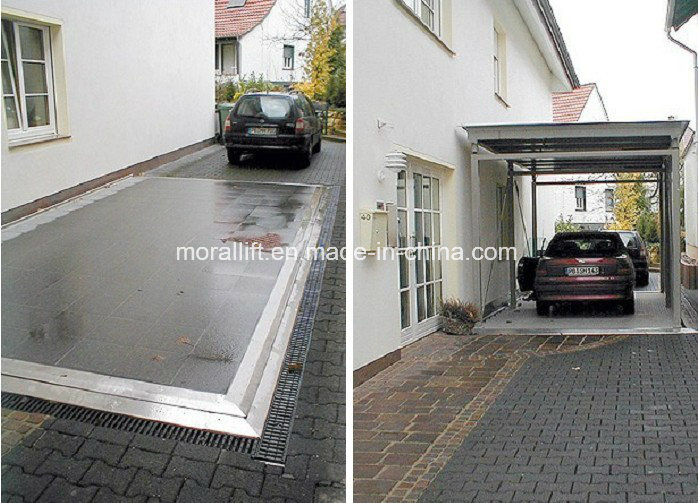

Pictures:














Our Services:
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas.

C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.

FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.

C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.

E10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
we can give you a best solution within 24 hours
10 fast delivery, save your time.


Thank you for visiting our products!
Welcome to patronize !
