| Prod Model: |
SJC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
3000kg |
| Diameter: |
5000mm |
| Rotating Degree: |
0-360 Degree |
| Platform Material: |
Steel or Aluminum |
| Package: |
Standard Export Packing |
| Delivery Time: |
15 Days After Confirm Order |
| Height: |
120-280mm |
| Power: |
0.75KW |
| Installation: |
Indoor or Outdoor |
| Warranty: |
12 Months |
| Type: |
One Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
CE |
| Double Cylinder Lift Type: |
None |
| Shearing Lift Type: |
None |
| Brand: |
Moral |
| Design: |
Circle Disk Turntable |
Product Description
Domestic Driveway Rotating Car TurntableSpecification:1. Pin-Gear drive mechanism
2. Rotate car 360 degree, low noise
3. Max. Diameter 35000mm available
Main feature:1. Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise, long
Life and minimal wear and tear.
2. Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.
3. Max. Diameter 35000mm available
4. Rotate car 360 degree
5. Made by steel, FOB Qingdao
6. 3 years warranty, 1 month delivery
7. This machine is used where the car can not make a turn, and auto revolving automobile
exhibition platform
8. The range of rotation: 0° - 360°
9. Automatic or manually control of rotation
Automobile Turntables For home OR show

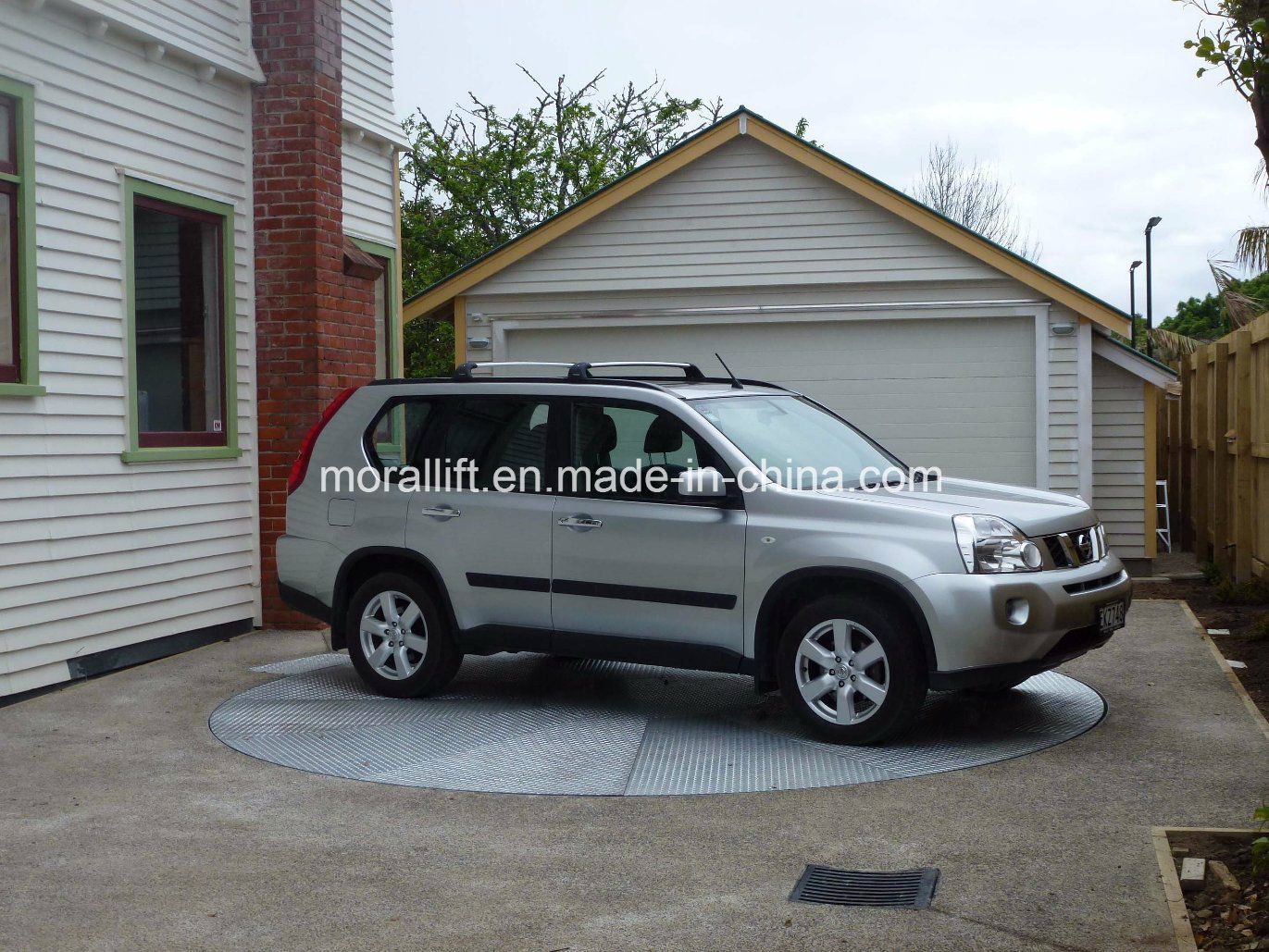

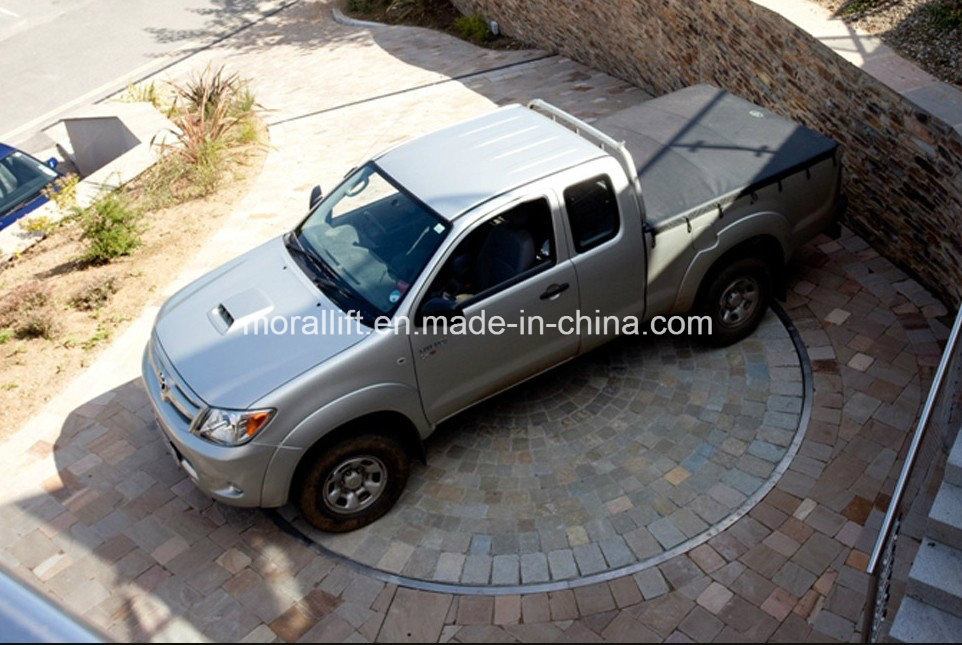

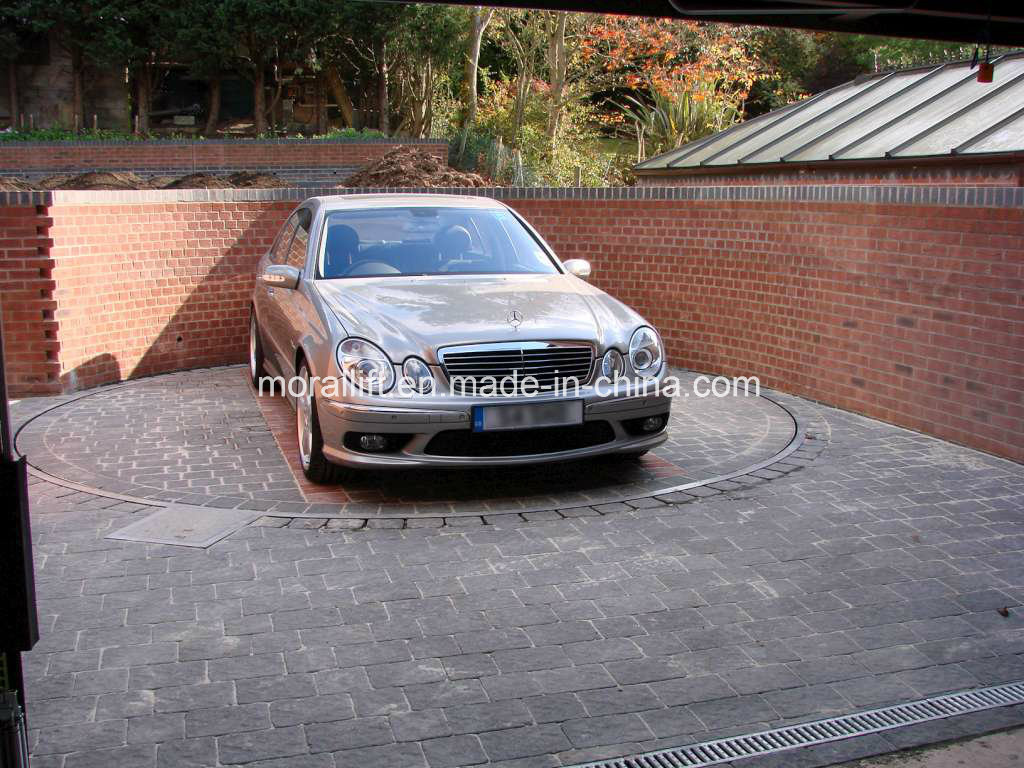

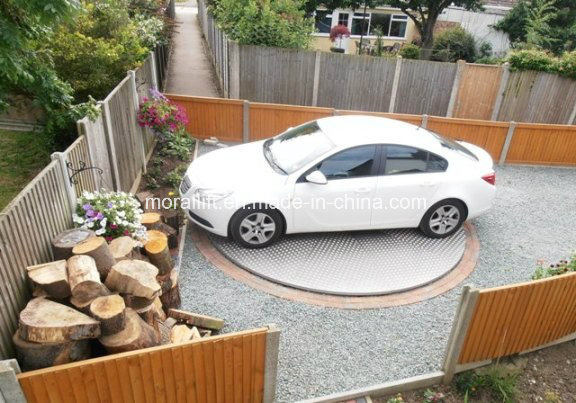

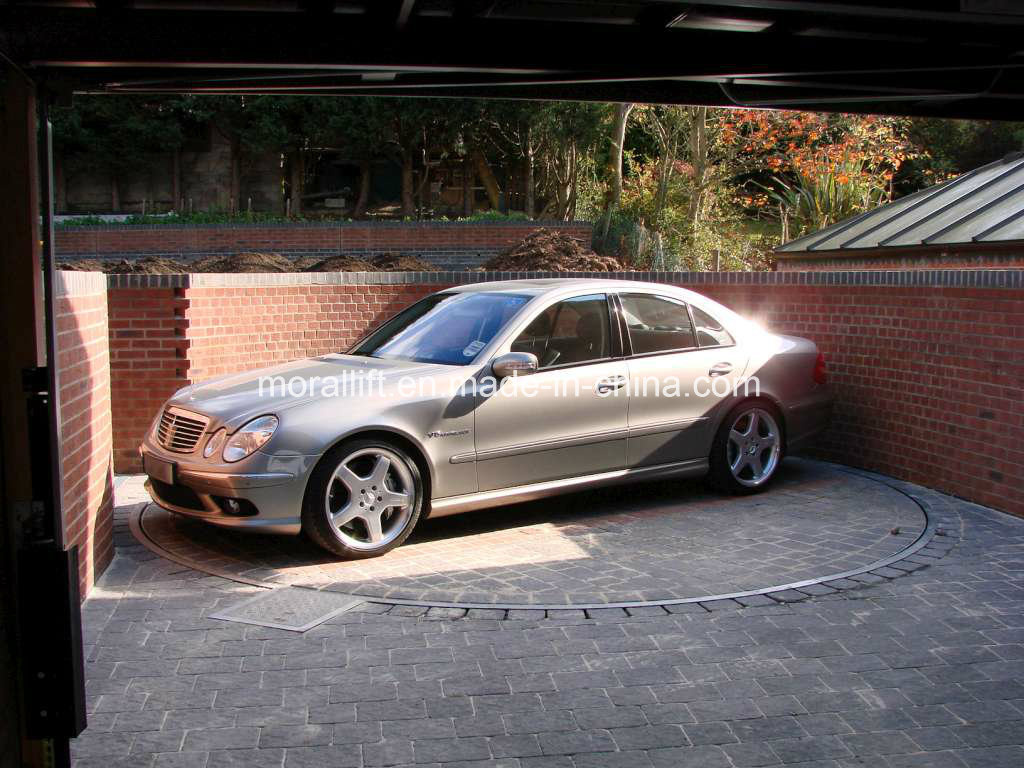

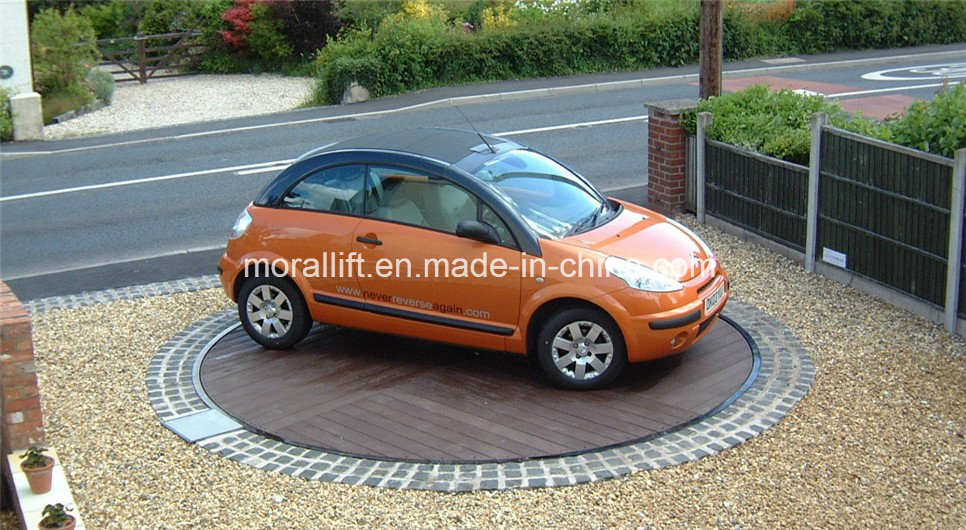

Residential driveway turntables solve parking challenges
No need to risk backing into traffic when you have a Car Turner vehicle turntable. Just drive on,
Push the remote control (like a garage door opener) and the car turntable rotates (~~you safely
and easily, so you can drive off headfirst. Car turners help eliminate accidents and property
damage, And protect children from harm. Turn your parking stress into pride of ownership with this practical And classy upgrade for your home. No digging required as the car turner mounts on the
surface of your existing driveway.
Service:To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
Warranty:We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.
Parameters:
Specification |
| MODEL | SJC2-4 | SJC3-5 | SJC4-6 | SJC4-7 |
| Loading Capacity(ton) | 2 | 3 | 4 | 4 |
| Diameter(mm) | 4000 | 5000 | 6000 | 7000 |
| Height(mm) | 350 ± 10 | 350 ± 10 | 350 ± 10 | 350 ± 10 |
| Power(kw) | 0.55 | 0.55 | 0.75 | 0.75 |
| Power Supply (V/Hz/Ph) | 220V, 50Hz or 60Hz |
| Net Weight (kg) | 1500 | 2130 | 2300 | 2500 |
Pictures:
