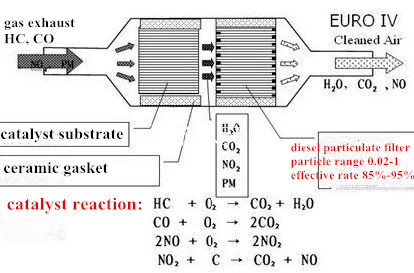

Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and blocking up passages in both ends and the waste gas enters from one open end, then goes through the porous beehive wall, and finally discharges from adjoining passage. The carbon particulates are left over on passage wall because they are too big to pass through wall hole and won't be discharged to air.
Diesel particulate filter is also called Diesel Particulate Filter (DPF). The main composition of tail gas discharge from diesel is carbon particulates. Diesel particulate filter is a setting to reduce emission granule by filtrating which is set in exhaust system in diesel. Its efficiency for carbon particulates filtration is more than 90%. Part of dissoluble organic composition (SOF) (especially high boiling point) may be trapped. The filtration material researched and used in China at present is of three types: Ceramic, metallic and composite based.
Sic-based Diesel Particulate Filter is a high-tech product. It is mainly used to produce new generation of diesel clean & emission system to fulfill the carbon particulate cleaning target of the EUIII, EUIV standards working principle for Sic-based Diesel Particulate Filter: It can reduce 96.5% carbon particulates emission by holding up the carbon particulates in tail gas of diesel at first, then clear up carbon particulates by means of electric heat, fuel burner etc., finally to meet carbon particulate emission standards.

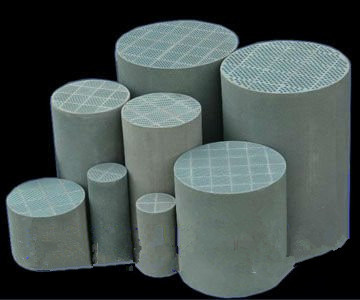

Silicon carbide filter cores also look like catalytic converter cores that have had alternate channels plugged - again the plugs force the exhaust gas flow through the wall and the particulate collects on the inlet face.
*Excellent capturing performance
*Small exhaust back pressure
*Nice corrosion resistance to oil, ash, and engine scouring
*Excellent heat resistance and thermal shock resistance.
*Lower thermal expansion

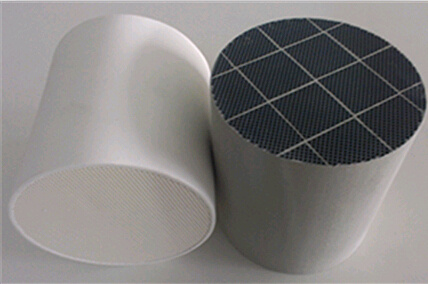

A diesel particulate filter removes particulate matter from diesel exhaust by physical filtration. The common type is a ceramic (cordierite or silicon carbide) honeycomb substrate. The structure like an emissions catalyst substrate with the channels blocked at alternate ends. The exhaust gasses must therefore flow through the walls between the channels and the particulate matter is deposited on the walls. Other filter types are available, using sintered metal plates, foamed metal structures, fibre mats and other materials as the filtration medium.
| Property (uncatalyzed) | 100/17 | 200/12 |
| Cell density | cpsi | 100 | 200 |
| cpscm | 15.5 | 31.0 |
| Wall thickness | inch | 0.017 | 0.012 |
| mm | 0.432 | 0.305 |
| Open frontal area (OFA), % | 34.5 | 34.5 |
| Geometric surface area (GSA) | Inch 2 | 33.3 | 47.0 |
| m 2 /l | 1.31 | 1.85 |
| Hydraulic diameter | Inch | 0.083 | 0.059 |
| mm | 2.11 | 1.49 |
| Modulus of rupture (psi/cpscm) | 350 | 300 |
| Porosity (%) | 48 | 48 |
Coefficient of thermal expansion
10 2 cm/cm/ (20-800) --maximum average | 5 | 5 |
| Mean pore size (micron) | 13 | 13 |
| Melting temperature () | 1460 | 1460 |
| Size(Diameter × length) | Filter volume(Liter) | Cell density | Shape |
| mm | Inches |
| Φ 70 × 152 | Dia.2.76 × 6 | 0.58 | 100/200CPSI | Round |
| Φ 144 × 152 | Dia.5.66 × 6 | 2.48 | 100/200CPSI | Round |
| Φ 144 × 205 | Dia.5.66 × 8 | 3.34 | 100/200CPSI | Round |
| Φ 144 × 254 | Dia.5.66 × 10 | 4.13 | 100/200CPSI | Round |
| Φ 144 × 305 | Dia.5.66 × 12 | 4.96 | 100/200CPSI | Round |
| Φ 170 × 254 | Dia.6.69 × 10 | 5.76 | 100/200CPSI | Round |
| Φ 190 × 200 | Dia.7.48 × 7.87 | 5.67 | 100/200CPSI | Round |
| Φ 228 × 152 | Dia.8.97 × 6 | 6.20 | 100/200CPSI | Round |
| Φ 228 × 254 | Dia.8.97 × 10 | 10.37 | 100/200CPSI | Round |
| Φ 228 × 305 | Dia.8.97 × 12 | 12.45 | 100/200CPSI | Round |
| Φ 240 × 240 | Dia.9.45 × 9.45 | 10.85 | 100/200CPSI | Round |
| Φ 240 × 254 | Dia.9.45 × 10 | 11.48 | 100/200CPSI | Round |
| Φ 240 × 305 | Dia.9.45 × 12 | 13.79 | 100/200CPSI | Round |
| Φ 260 × 305 | Dia.10.23 × 12 | 16.19 | 100/200CPSI | Round |
| Φ 270 × 305 | Dia.10.63 × 12 | 17.45 | 100/200CPSI | Round |
| Φ 286 × 305 | Dia.11.26 × 12 | 19.58 | 100/200CPSI | Round |
| (98 × 195) × 154 | (3.8 × 7.7) × 6 | 2.60 | 100/200CPSI | Race track |
| (98 × 195) × 205 | (3.8 × 7.7) × 8 | 3.50 | 100/200CPSI | Race track |
| (98 × 195) × 254 | (3.8 × 7.7) × 10 | 4.30 | 100/200CPSI | Race track |
| (98 × 195) × 305 | (3.8 × 7.7) × 12 | 5.20 | 100/200CPSI | Race track |

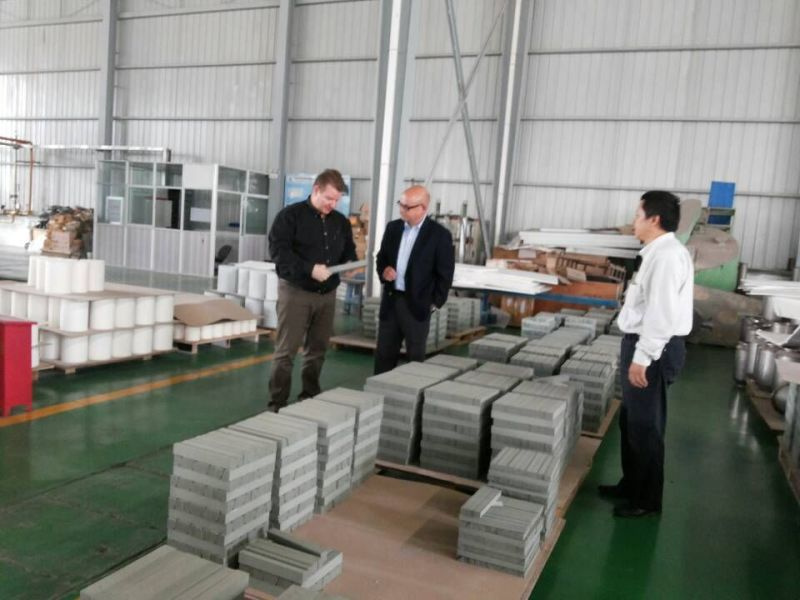

Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
