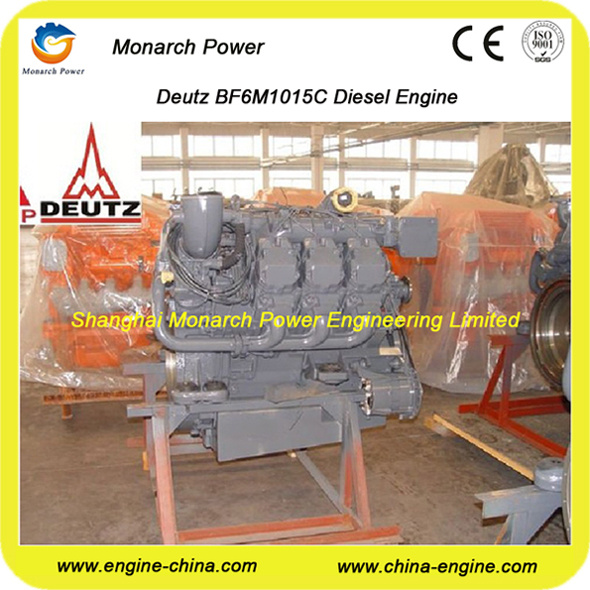

Deutz Bf6m1015cp Engine for Truck
Price: |
US $ 10000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
TECHNOLOGY FEATURES:
1. Adopt the unit pump structure tested for 12 years in European markets, stable performance, reliable and average heavy repair
Mileage is 100, 000 kilometers higher than other kind products, with 30 days more attendance in a year.
2. Adopt structures off the unit pump with the highest injection pressure and top built intake duct, short and high pressure pipe, met
The emission standard, save 2 to 3 liters fuel per one hundred kilometers compared with other kind products.
3. Unique single injection pump fuel supplying system, low requirements for fuel quality, adaptable to Chinese fuel quality and
Guaranteed the reliability of the complete engine.
4. Noise lower than 96 decibels, the only one engine met the standard without assistant approaches in China.BFM1015 series engine for construction application. |
Monarch power limited |
Engine model | BF6M1015 | BF6M1015C | BF6M1015CP | BF8M1015C | BF8M1015CP |
Air intake | Turbocharged | Turbocharged intercooled | Turbocharged intercooled | Turbocharged intercooled | Turbocharged intercooled |
Bore*stroke(mm) | 132 ×145 | 132 ×145 | 132 ×145 | 132 ×145 | 132 ×145 |
Displace-ment (L) | 11.906 | 11.906 | 11.906 | 15.874 | 15.874 |
Rated power (kw) | 223~240 | 273~300 | 300~330 | 364~400 | 400~440 |
Rated speed (r/min) | 1900/2100 | 1900/2100 | 1900/2100 | 1900/2100 | 1900/2100 |
Max torque/speed (N.m)/(r/min) | 1420/1500 | 1978/1200 | 1876/1300 | 2640/1200 | 2500/1300 |
Min fuel consumption (g/kw.h) | 209 | 200 | 202 | 200 | 211 |
Idle speed (rpm) | 600 | 600 | 600 | 600 | 600 |
Overall dimension (mm) | 1043 × 932 × 1174 | 1043 × 932 × 1174 | 1043 × 932 × 1174 | 1151× 955 × 1174 | 1151× 955 × 1174 |
Weight (kg) | 850 | 850 | 850 | 1060 | 1060 |
General of DEUTZ BF6M1015 Diesel Engine for Industry |
Cylinder | 6 |
Displacement | 11.906L |
Bore (mm) | 132 |
Stroke (mm) | 145 |
Compression Ratio | 17:01 |
Net Weight (kg) | 830 |
Overall Diemension (LXWXH)(mm) | 1043X932X1174 |
Technical Specification of DEUTZ BF6M1015 Diesel Engine for Industry |
Advertised Speed (rpm) | 2100/1900 |
Continue Power As Per ISO3046/1(IFCN) 2100RPM | 214 |
Average Efficiency Pressure (bar) | 10.3 |
Intermittent Power As Per ISO3046/1 (KW/rpm) | 223/2100 |
Highly Intermittent (kw/rpm) | 231/2100 |
Automotive Power As Per ISO1585 | 240/2100 |
Max.Torque/Speed (N.M/rpm) | 1420/1500 |
Min Fuel Consumption (g/kw.h) | 195 |
Idle Speed (rpm) | 600 |
Our Service :
Why choose us?
Advantages we have :
A. Experienced engine, marine engine,diesel engine, generator, generator set supplier;
B. Professional technical team and sales department for your service;
C. Our products recognized by CE Certificate;
D. All the questions will be dealed within 24 hours;
Benefits you get :
A. Stable quality
B. Competitive price
C. Satisfactory service before and after sale
Prod Model: |
Deutz BF6M1015CP |
Engine Brand: |
Deutz |
Displacement: |
11.906L |
Bore: |
132mm |
Compression Ratio: |
17:01 |
Advertised Speed: |
2100/1900rpm |
Color: |
by Customized Order |
Intake Pressure Impulse: |
Supercharged |
Speed: |
High Speed |
Piston Movement: |
Reciprocating |
Ignition Mode: |
Compression-Ignition |
Number Of Cylinders: |
Multi-Cylinder Machines |
Cooling Cylinder: |
Water-Cooled |
Number Of Strokes: |
Four-Stroke |
Cylinder Arrangement Form: |
V |
Cylinder: |
6 |
Fuel: |
Diesel Engine |
Stroke: |
145mm |
