Air Cooled Deutz Engine Diesel for Truck

Company Information :

Shanghai Monarch Power Engineering Limited has already established very close relationships with Cummins, Deutz, Isuzu, Lovol, , Iveco, Nissan, Toyota and other manufacturers. We can also provide you with the complete series of engines with the brands above. The engines are used for marine propulsion, marine generators, industrial generators, construction engines, vehicle engines, agriculture engines, etc.

We have already established cooperation relationships with customers all over the world, with an experienced and professional staff group, as well as senior engineers, technicians and salesmen. Now our company is known as a leading manufacturer in supplying of diesel generators (for both industrial use and marine use).

We can provide you with generators which are approved by China Classification Society CCS. Our marine generator can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS, etc. With steady quality, quick and professional service, our company gains the general recognition from users at home and abroad.

We are sincerely looking forward to establishing business relationships with you for our mutual benefit.

Specifical Specifications :

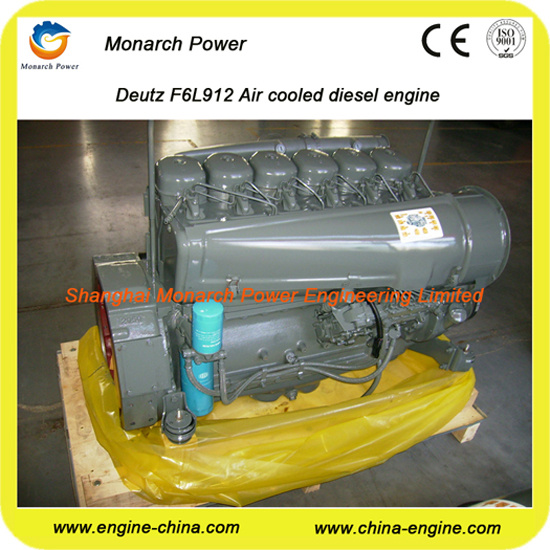

General of DEUTZ F6L912 Diesel Engine for Industry
Cylinder	6
Displacement	5.655L
Bore (mm)	100
Stroke (mm)	120
Compression Ratio	17:01
Net Weight (kg)	410
Overall Diemension (LXWXH)(mm)	1120X673X815
Technical Specification of DEUTZ F6L912 Diesel Engine for Industry
Fire Type	Direct Injection
Air-intake Way	Naturally Intake
Continue Power As Per DIN70020 (kW/rpm)	88/2800
Net Brake Fuel Stop Power As Per ISO3046/1(IFN) kW/rpm	88/2800
Highly Intermittent (kw/rpm)	78/2500
Max.Torque/Speed (N.M/rpm)	345/1600
Min.Fuel Consumption With Full-load (g/kw.h)	212

Model F2L912
Air Intake Natural Aspiration
Cylinders 2 cylinders
Combustion system Direct injection
Type Vertical 4-strokeair-cooled direct injection
Displacement 1.88
Direction of rotation (facing the cooling blower)clockwise

Deutz engine Engine model Power Weight (Kg)
Deutz engine F2L912 14~22KW 240
Deutz engine F3L912 24~38KW 275
Deutz engine F3L913 25~44KW 280
Deutz engine F4L912 32~44KW 300
Deutz engine F4L912T 40~50KW 315
Deutz engine F4L913 34~55KW 310
Deutz engine BF4L913 47~78KW 350
Deutz engine F6L912 47~74KW 410
Deutz engine F6L912T 61~85KW 420
Deutz engine F6L913 51~86KW 420
Deutz engine BF6L913 74~118KW 485
Deutz engine BF6L913C 84~140KW 510
Deutz engine F3L912W 29~33KW 275
Deutz engine F4L912W 39~44KW 300
Deutz engine F6L912W 60~66KW 410

Standard Configuration

1. Oil filter
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4.12V/24V starting motor
5.12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Belt guard(only for generator set)
10.4 Engine elastic supports
11. SAW Flywheel and housing
12. Oil temperature sensor and alarm switch (VDO analog signal)
13. Oil pressure sensor and alarm switch (VDO analog signal)
14. Diesel engine accelerator adjust device(Only generator set)
15. Mechanical adjusting speed device
16. Diesel engine paint(gray)

Deutz B/F/L912/913C Series Air-cooling diesel engine
Shanghai monarch power engineering limited
Deutz engine	Engine model	Cylinder No.    & Arrangement	B*S     (mm)	Disp  (L)	Cooling system and stroke	Air-intake way	Power		Weight   ( Kg)
Deutz engine	F2L912	2-Cylinder in-line engines	100/120	1.88	Air-cooled 4-stroke	Naturally intake	14~22KW		240
Deutz engine	F3L912	3-Cylinder in-line engines	100/120	2.828	Air-cooled 4-stroke	Naturally intake	24~38KW		275
Deutz engine	F3L913	3-Cylinder in-line engines	102/125	3.064	Air-cooled 4-stroke	Naturally intake	25~44KW		280
Deutz engine	F4L912	4-Cylinder in-line engines	100/120	3.77	Air-cooled 4-stroke	Naturally intake	32~44KW		300
Deutz engine	F4L912T	4-Cylinder in-line engines	100/120	3.77	Air-cooled 4-stroke	Turbo charged	40~50KW		315
Deutz engine	F4L913	4-Cylinder in-line engines	102/125	4.086	Air-cooled 4-stroke	Naturally intake	34~55KW		310
Deutz engine	BF4L913	4-Cylinder in-line engines	102/125	4.086	Air-cooled 4-stroke	Turbo charged	47~78KW		350
Deutz engine	F6L912	6-Cylinder in-line engines	100/120	5.655	Air-cooled 4-stroke	Naturally intake	47~74KW		410
Deutz engine	F6L912T	6-Cylinder in-line engines	100/120	5.655	Air-cooled 4-stroke	Turbo charged	61~85KW		420
Deutz engine	F6L913	6-Cylinder in-line engines	102/125	6.128	Air-cooled 4-stroke	Naturally intake	51~86KW		420
Deutz engine	BF6L913	6-Cylinder in-line engines	102/125	6.128	Air-cooled 4-stroke	Turbo charged	74~118KW		485
Deutz engine	BF6L913C	6-Cylinder in-line engines	102/125	6.128	Air-cooled 4-stroke	Turbo charged cooling	84~140KW		510
Deutz engine	F3L912W	3-Cylinder in-line engines	100/120	2.828	Air-cooled 4-stroke	Naturally intake	29~33KW		275
Deutz engine	F4L912W	4-Cylinder in-line engines	100/120	3.77	Air-cooled 4-stroke	Naturally intake	39~44KW		300
Deutz engine	F6L912W	6-Cylinder in-line engines	100/120	5.655	Air-cooled 4-stroke	Naturally intake	60~66KW		410
